Faulhaber: Motion Controller V2.5 (MCDC 3002 Series)
Faulhaber: Motion Controller V2.5 (MCDC 3002 Series)

Alternate View
Call for Pricing

Price Quote Form


Order #: MCDC-3002


Model Number/Code*:

.

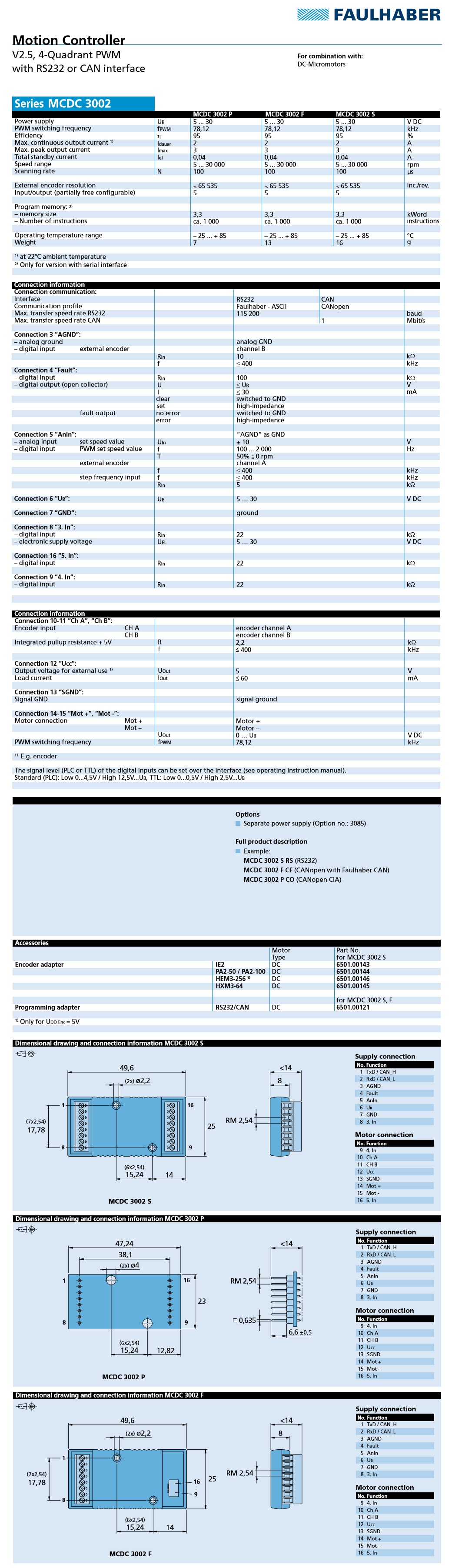

Description Specifications and Drawings


Faulhaber: Motion Controller V2.5 (MCDC 3002 Series)

Motion Controllers

FAULHABER Motion Controllers are easy to use single axis positioning controllers tailor made for the control of FAULHABER DC, Brushless, and linear motors.

For high resolution dynamic positioning applications, or high precision speed control applications they are available with serial or CAN interfaces and can be configured the free and easy to use Motion Manager software.

Features and Benefits:

  • Compact design

  • Precise position and speed control

  • Serial or CAN interfaces

  • Many standard operating modes

  • Integrated Motor Protection functions

  • Simple USB configuration

  • Easy to use software

Specifications:

  • Control Type:1,2,3

  • Functionality: 4 -Q/PWM

  • Interface: RS232/CAN

  • Type of motors: DC

  • UB: 5 ... 30

  • Imax: 3

Model No.: MCDC 3002 P, MCDC 3002 F, MCDC 3002 S
