Panasonic: AC Servo Motors (MSMA A4 Series)

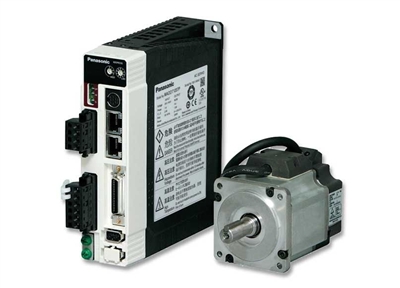

Panasonic: AC Servo Motors (MSMA A4 Series)

Call for Pricing

Price Quote Form


Order #: MSMA


Model Number/Code*:

.
Description Specifications and Drawings


Panasonic: AC Servo Motors (MSMA A4 Series)

MSMA-MINAS A4 Series (200V)


Panasonic’s MINAS A4 series corresponds to even variation of load inertia. Offers real automatic gain tuning to low and high stiffness machines with a combination of an adaptive filter. Supports the vertical axis application where the load torque is different in rotational direction. Prevents the machine from over-traveling during automatic gain tuning with over-travel detecting function. Enables you to set and check while monitoring real-time automatic gain tuning conditions on the front panel.


Features:

  • Power Supply Capacity (kVA): 1.8-7.5

  • Rated Output (W): 1000-5000

  • Rated Torque (N.m): 3.18-15.8

  • Momentary Max. Peak Torque (N.m): 9.5-47.6

  • Rated Current (Arms): 7.2-28.5

  • Max. Current (Ao-p): 30-120

  • Rated Rotational Speed (r/min): 3000

  • Max. Rotational Speed (r/min): 4500-5000

  • Static Friction Torque (N.m): 4.9-16.1

  • Engaging Time (ms): 50-110

  • Releasing Time (ms): 15-50

  • Exciting Current (DC) (A): 0.74-0.90

  • Releasing Voltage: DC2V or more

  • Exciting Voltage: DC 24 V± 10%

  • Mass without Brake (kg): 4.5-17.3


Model No.: MSMA102P1, MSMA102S1, MSMA152P1, MSMA152S1, MSMA202P1, MSMA202S1, MSMA302P1, MSMA302S1, MSMA402P1, MSMA402S1, MSMA502P1, MSMA502S1


Catalog

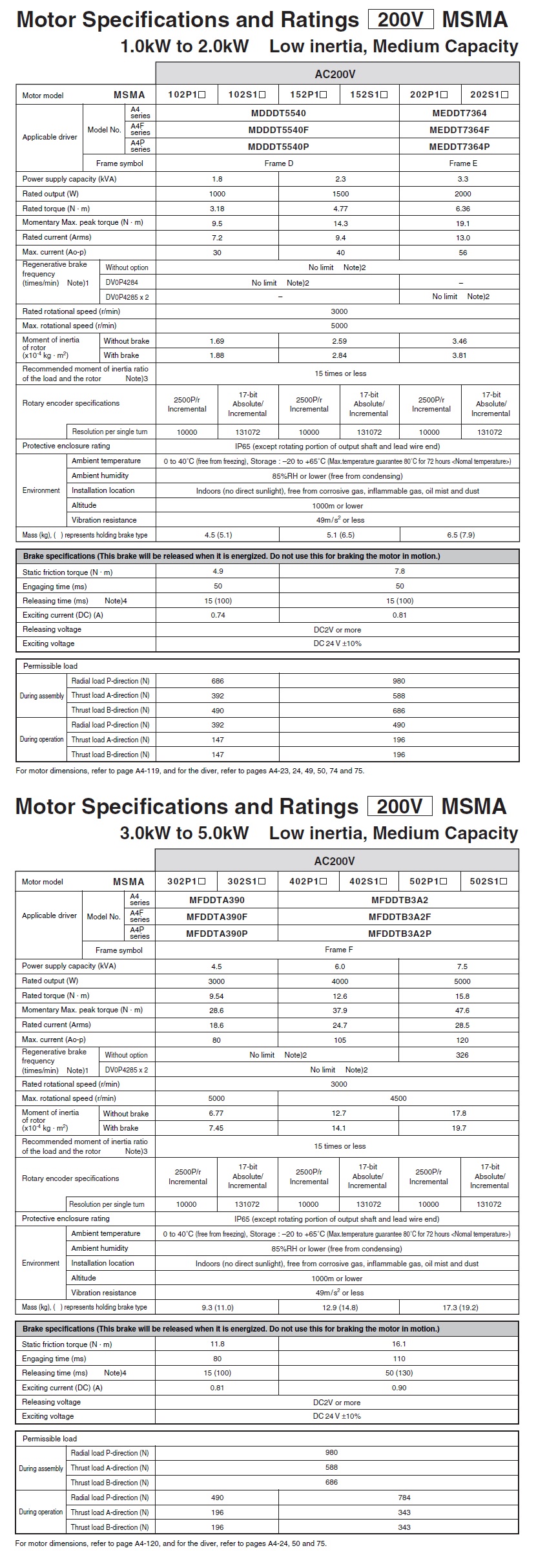

MSMA Specs

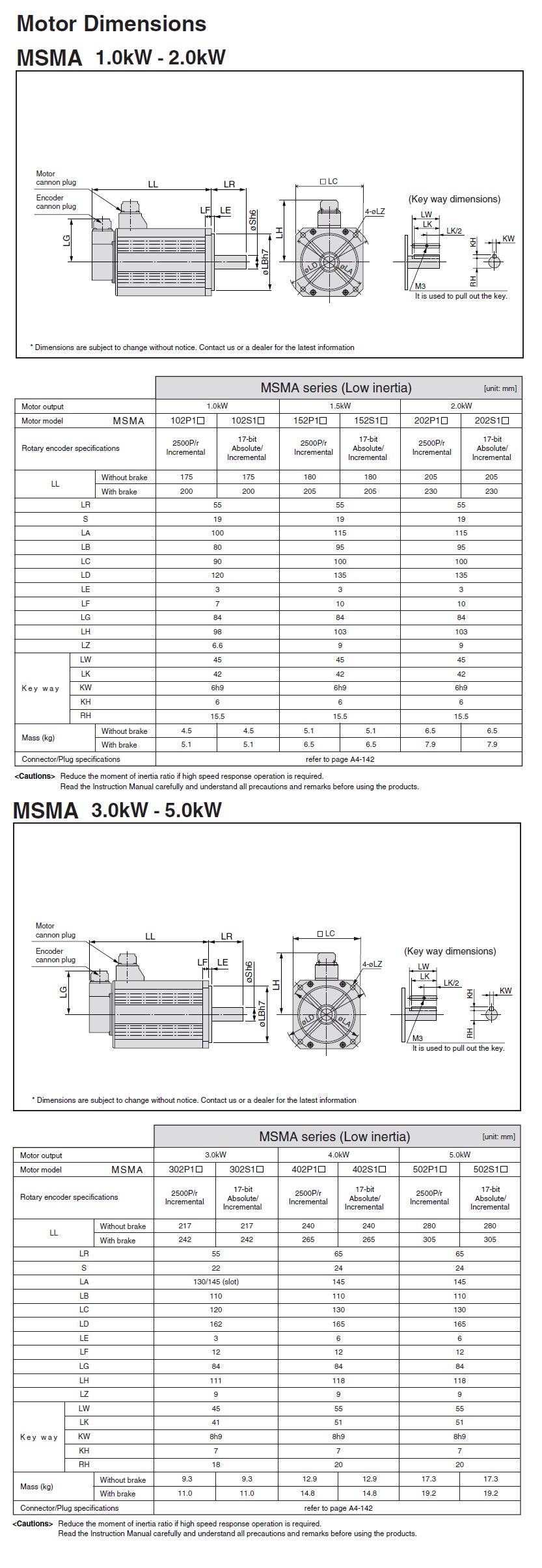

MSMA CAD

Wiring Diagram (1) (2)

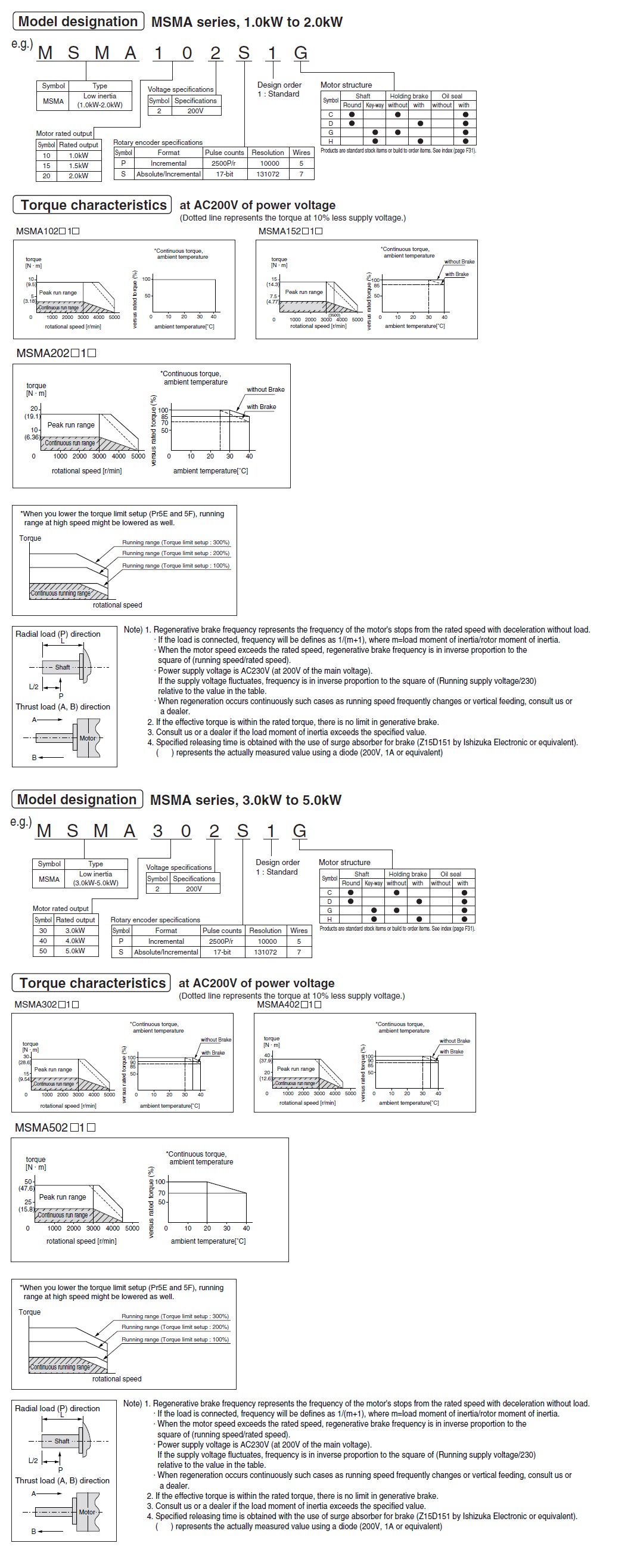

Buying Guide

Share your knowledge of this product. Be the first to write a review »
