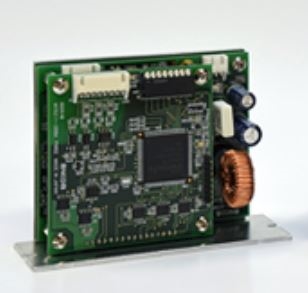

5 phase nano stepping motor drive:ISD510

Home > Drives >

Mycom:5 phase nano stepping drive,ISD 510 LA

5 phase nano stepping motor drive:ISD510

Price : $799.00

Order #: ISD-510-LA

Qty:

Description

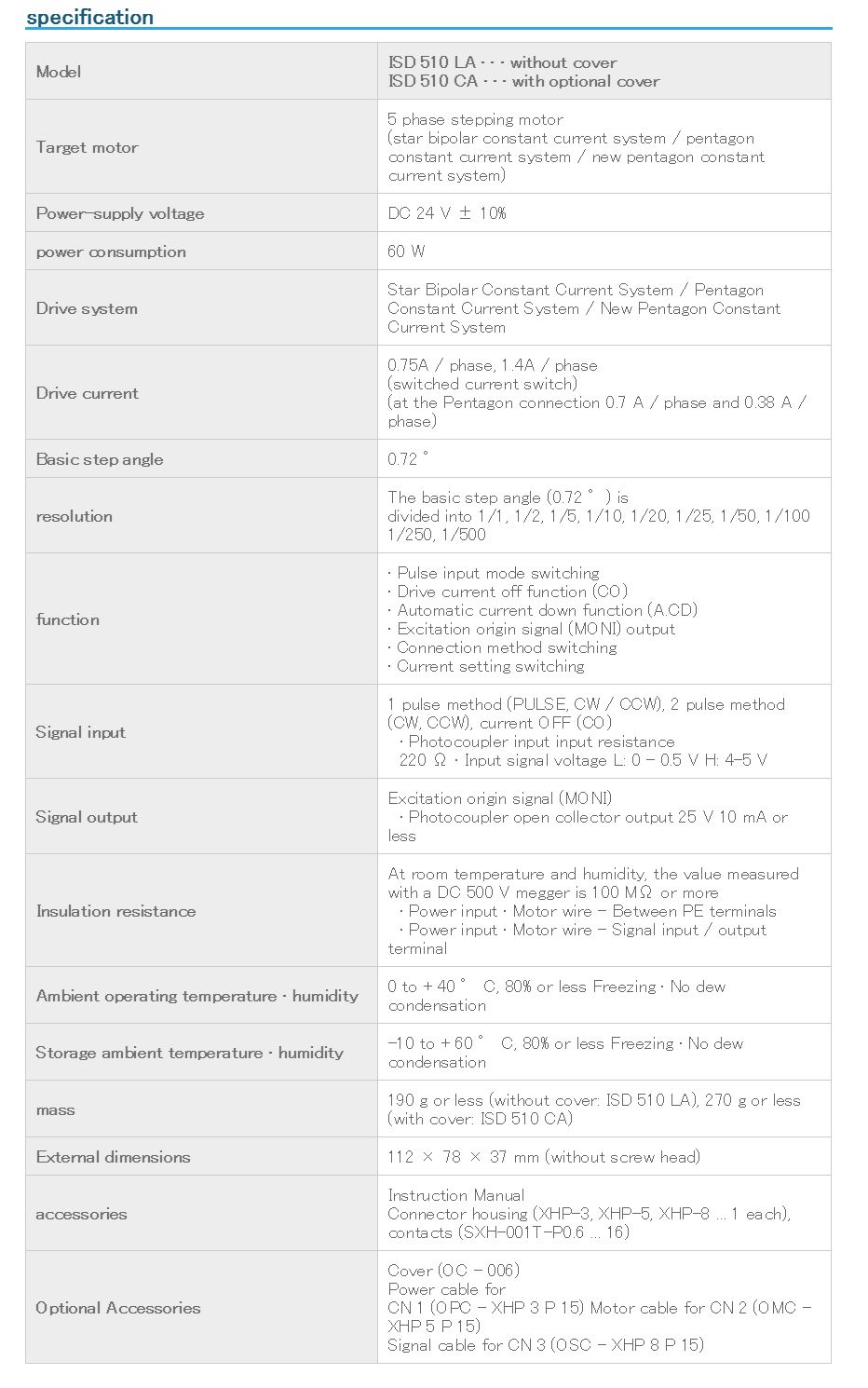

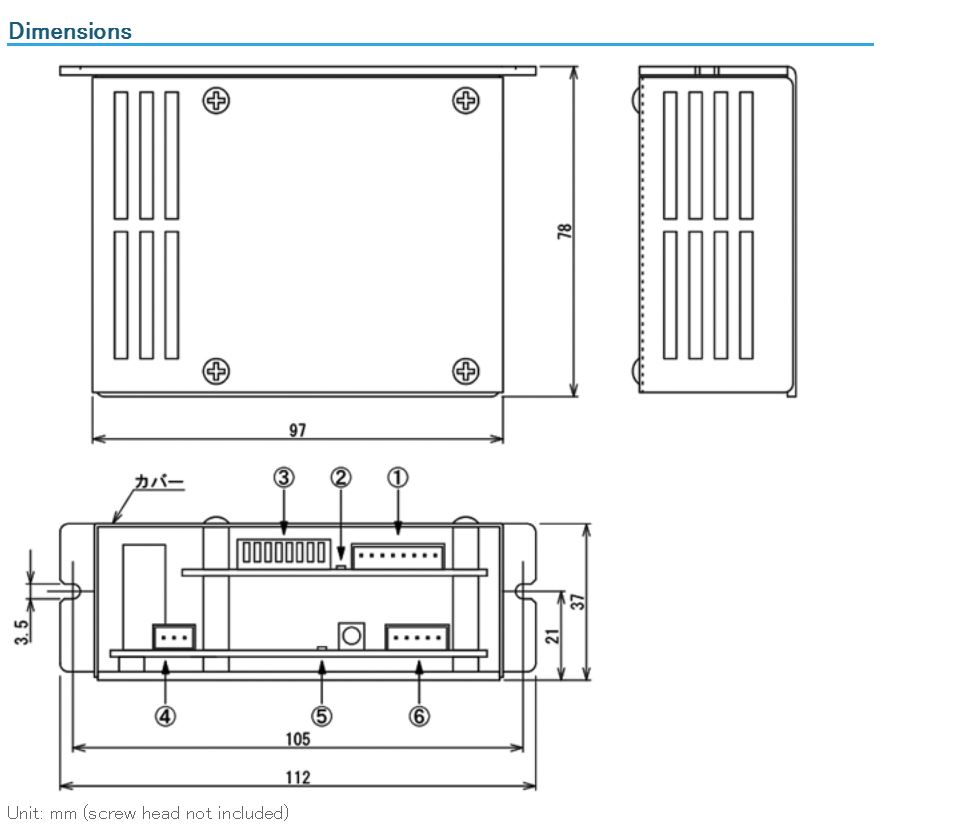

Specifications and Drawings

ISD 510 LA · · · without cover $799.00
ISD 510 CA · · · with optional cover $849.00

■ Supports not only the conventional star bipolar system but also the new Pentagon / Pentagon 5-phase stepping motor

■ Significant suppression of motor vibration

■ Microstep High resolution drive (up to 1/500)

Support Links

ISD 510 Owner's Manual (PDF file)
download	Ver.A

Torque Characteristics Diagram Download

ISD 510 Torque Characteristic Diagram (PDF file)
download
