FAULHABER: Stepper Motors AM1524-A-0.45-3.6-04
AM1524-A-0.45-3.6-04

Faulhaber
833-9MOTIONinquiry@e-motionsupply.com.
Price : $252.00


Availability: Subject to availability
Order #: AM1524-A-0.45-3.6-04
Qty:

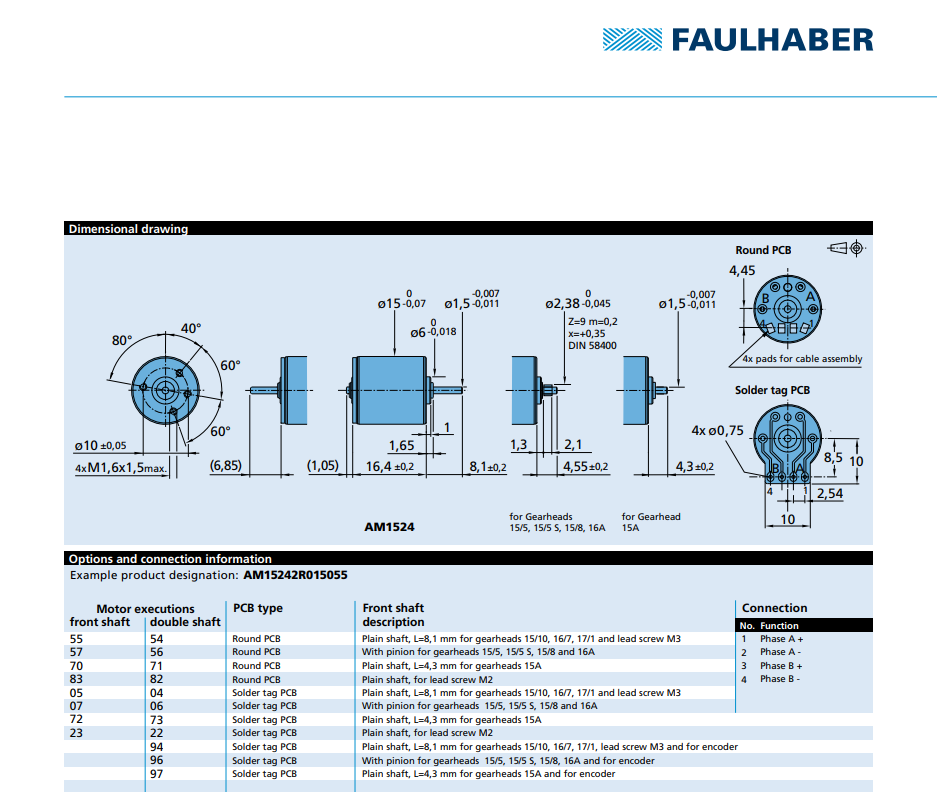

Description Ordering Information Specifications and Drawings


Please call 833-9MOTION for the price of order over quantity of 50.

FAULHABER:
Stepper Motors AM1524-A-0.45-3.6-04

Robust assembly, high speed range, and exceptional performance in even the harshest environments make PRECIstep® drive systems the perfect solution for demanding positioning applications.

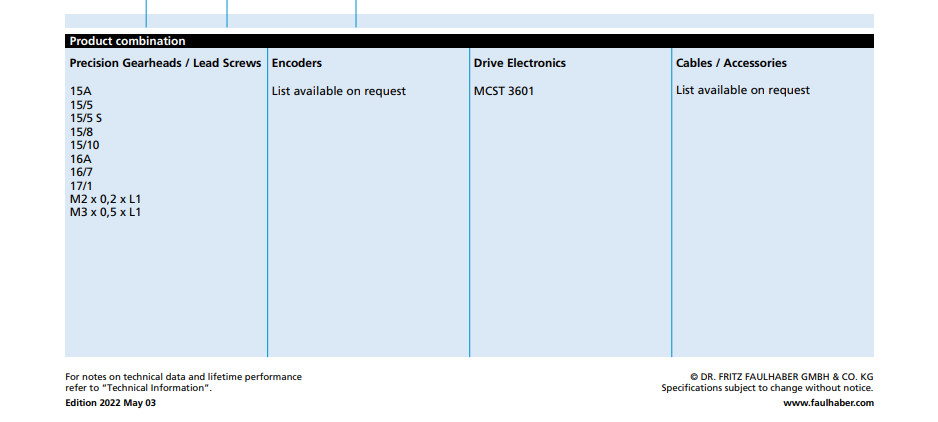

They are available with a wide variety of modular servo components like encoders, zero backlash gearheads, integrated lead screws and much more.

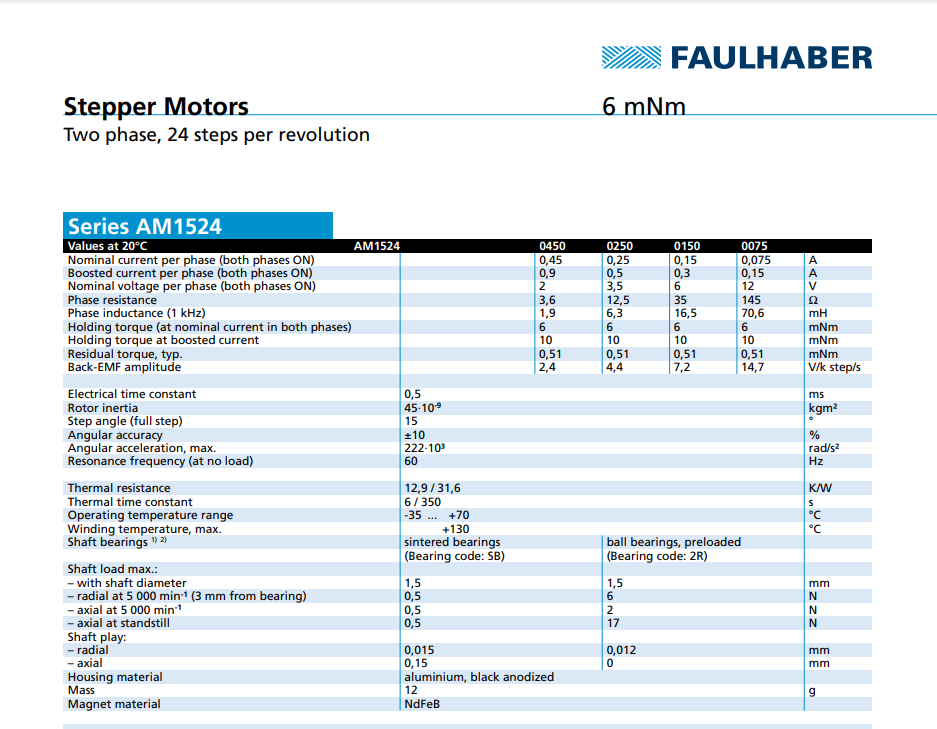

Specifications

  • Diameter (mm): 15

  • Length (mm): 16.4

  • Holding Torque - MH2 Phase (mNm): 10

  • Torque – Me max. (mNm): 6

  • Step Angle (Full Step): 15
