CZCANTE-060B080

CANopen Servo Drive,30A rated/60A peak,10-80VDC

Price : $826.00

Quantity in Stock:1

Availability: Usually Ships in 1 to 2 Weeks
Order #: CZCANTE-060B080

Qty:

Description

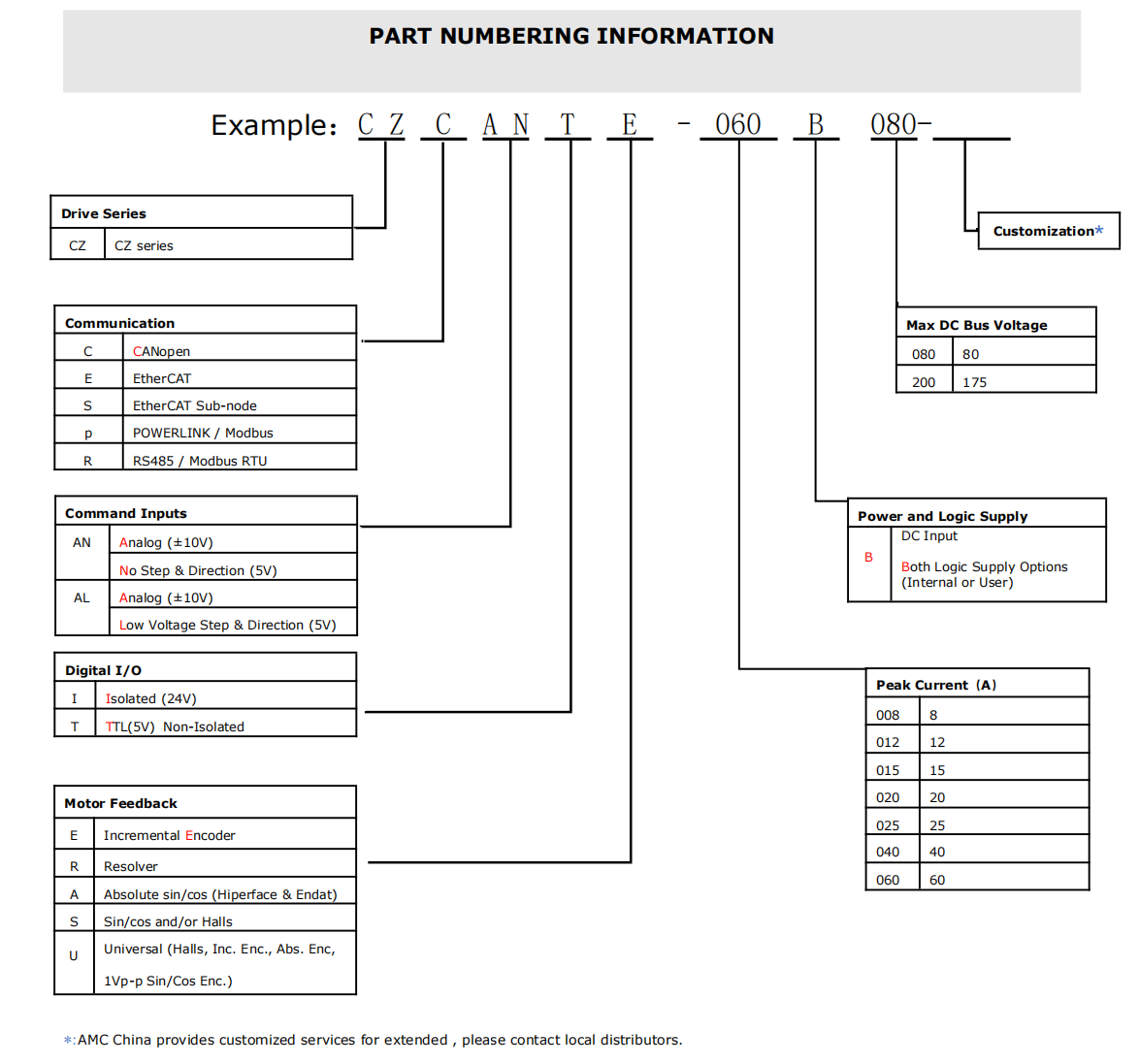

Ordering Information

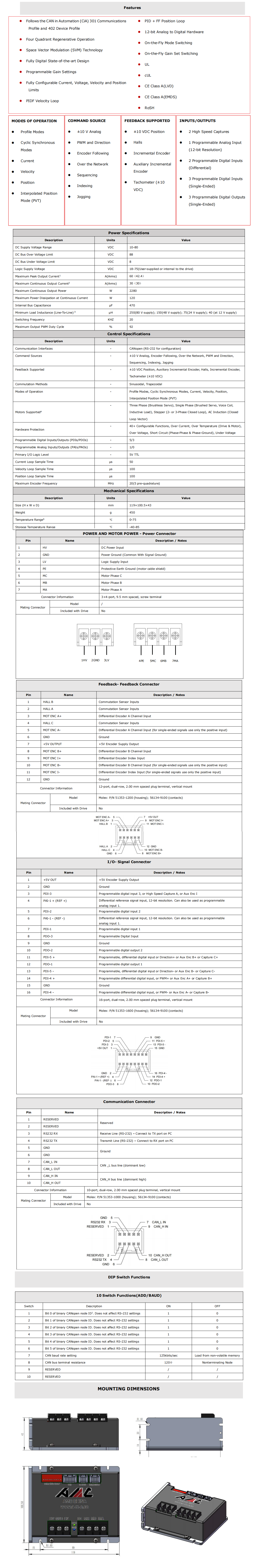

Specifications and Drawings

AMC China: CANopen Servo Drive CZCANTE-060B080
CZC Series digital servo drives are designed to drive brushed and brushless servo motors, stepper motors and AC induction motors. These all-digital drives operate in torque, speed or position mode and use space vector modulation (SVM) technology. Compared with traditional PWM, it can improve bus voltage utilization and reduce heat dissipation. The drive can be configured to use various external command signals, or the drive's built-in motion engine (internal motion controller for distributed motion applications) can be used to configure commands. In addition to motor control, these drives also have dedicated programmable digital and analog inputs and outputs to enhance the interface with external controllers and devices

CZC series drives have CANopen network communication function, they can all be connected to DriveWare®7 software through RS232 to complete drive debugging and configuration.

SPECIFICATIONS

Size (mm)	119 x 105.5 x 43
Weight (g)	450
Temperature Range (℃)	0-75
Current Continuous (A)	30.0
Current Peak (A)	60.0
DC Supply Voltage (VDC)	10 - 80
Network Communication	CANopen
