AMC China: Servo Drive CZRALTE-025B200
CZR Series digital servo drives are designed to drive brushed and brushless servo motors, stepper motors and AC induction motors. These all-digital drives operate in torque, speed or position mode and use space vector modulation (SVM) technology. Compared with traditional PWM, it can improve bus voltage utilization and reduce heat dissipation. The drive can be configured to use various external command signals, or the drive's built-in motion engine (internal motion controller for distributed motion applications) can be used to configure commands. In addition to motor control, these drives also have dedicated programmable digital and analog inputs and outputs to enhance the interface with external controllers and devices.

CZR series drives have the network communication function of RS-485/232 or Modbus RTU, they can all be connected to DriveWare®7 software through RS232 to complete drive debugging and configuration.

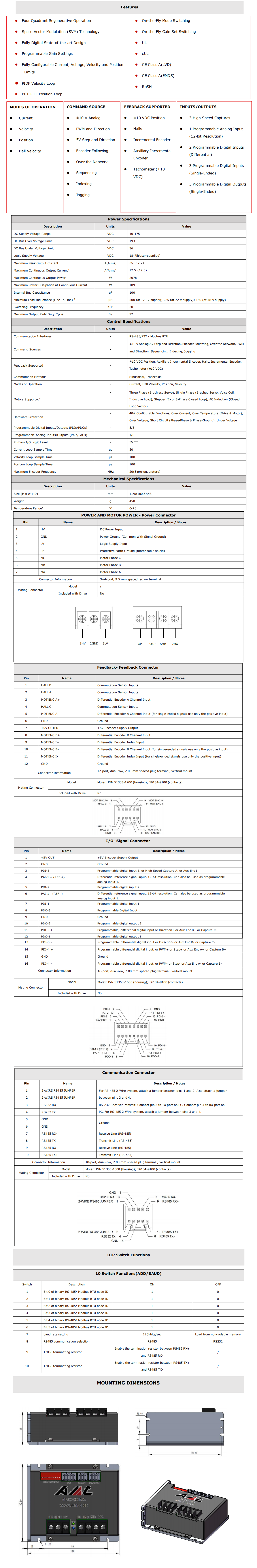

SPECIFICATIONS
