Parker: ATEX Gearboxes GXA Series GXA3N005R060

Overview

Description

GXA gearbox series has to be associated with the powerful Parker ATEX servomotors ranges for use in hazardous areas. The precision helical gearing design offers smooth and quiet operation for the most demanding high performance applications. The solid uncaged needle roller bearings provides maximum contact points to increase stiffness and generates high output torque.

In addition the unique motor adapter and bushing module system design allows to obtain a compact structure and a quick and easy mounting of any ATEX certified Parker motor.

GXA gearboxes offer a compact motor-gearbox solution optimised to provide the best dynamic performances in hazardous areas. In combination with Parker ATEX servo motors, they are ideal for applications requiring high torque and optimum motion quality.

Features:

• ATEX certify

• Low backlash

• High efficiency

• Easy mounting

• Low noise

• Compact structure

• Helical Gear Design

Markets:

Printing & Marking Equipment

Packaging Machinery

Coatings / Ink / Paint

Industrial Chemical Processing

Pharmaceutical Industries

Plastic Processing

Oil & Gas

Power Generation

Benefits:

Conformance: 2014/34/EU Directive

Classification: II 2 GD c T6

Frame Sizes: 60 - 220mm

Ratio Options: 3:1 - 100:1

Backlash: up to ≤ 3 arc-minutes

Efficiency: up to ≥ 97%

High Input Speeds: up to 10000 RPM

ATEX certification / Combine with the powerful Parker ATEX servo motor ranges for use in hazardous areas

Easy mounting

Low noise

Compact structure

Helical Gear Design

Applications:

Printing machinery

Paint spray equipments

Plastics machinery

Chemical, petro-chemical

Waste processing plants

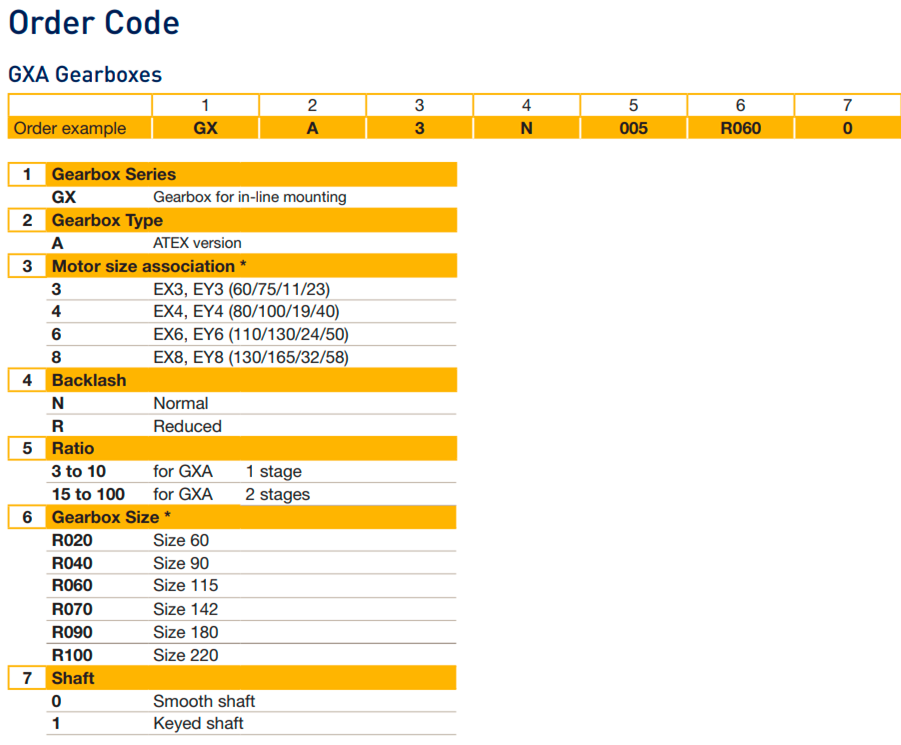

Model:GXA3N005R060, GXA4N005R060, GXA6N005R060, GXA8N005R060
