ATI: Delta DAQ F/T Transducer with IP68 Protection 9105-TIF-DELTA-IP68

ATI: Delta DAQ F/T Transducer with IP68 Protection for fresh water to 10m 9105-TIF-DELTA-IP68

Alternate View

Rated Fxy ±lb (±N) = 150(660), Rated Txy ±lbf-in (±Nm) = 600(60), Weight* lb (kg) = 2.01(0.913)

Price : $10,377.11

Price with Selected Options: $10,377.11

Availability: The current lead time is 8-10 weeks
Order #: 9105-TIF-DELTA-IP68

Options:
Accessories:

Qty:

Description

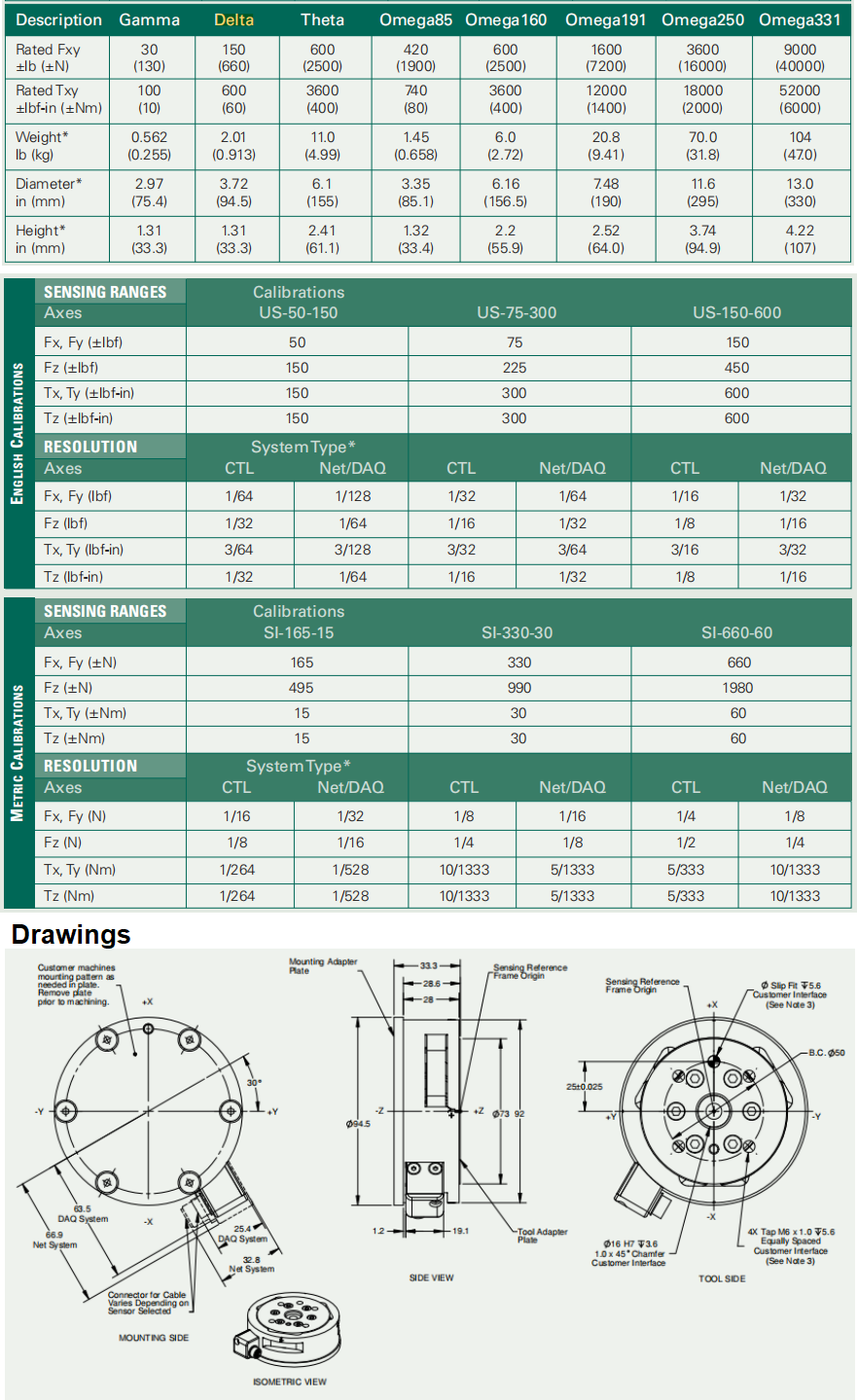

Specifications and Drawings

Delta DAQ F/T Transducer with IP68 Protection 9105-TIF-DELTA-IP68
Typical Applications
Wet applications
Mechanical assembly
Part placement and removal in precision fixtures
Material removal, grinding, and polishing
Product Advantages
Extremely-High Strength: IP68 (10m) rated for submersion in fresh water to a depth of 10 meters. Precision machined from high-strength stainless steel. Maximum allowable overload values are 4.1 to 18.8 times rated capacities.

High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.
IP60 and IP65 Versions Available: An IP60 version is for use in dusty environments. The IP65 version of the transducer is protected against water spray.
Note(s): IP68 sensors exhibit a decrease in Fz range related to submersion depth. See IP68 F/T Transducer Details in the Manuals tab under Addendums for detailed descriptions or contact your account representative.
