ATI: QC-160 Tool Base Plate Assembly 9120-160FT-000-000
Tool Plate Assembly

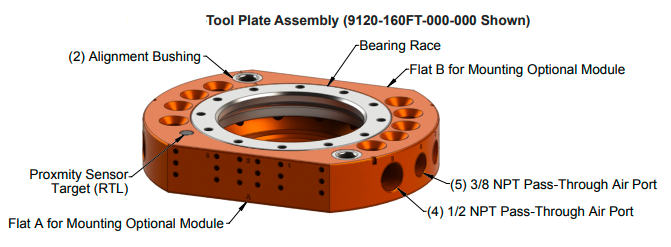

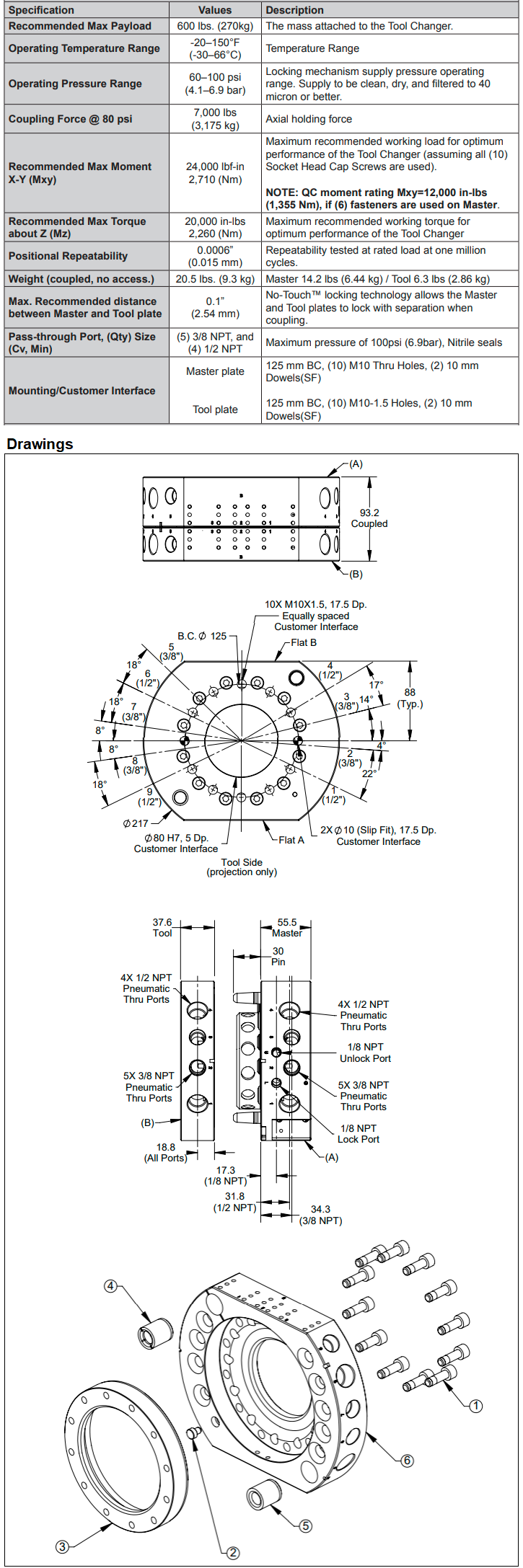

The Tool plate assembly includes an anodized aluminum body and a hardened stainless-steel bearing race. The Tool plate has (2) flat sides for mounting of the optional modules. The Tool plate body also includes a 125 mm BC mounting pattern for direct customer tool mounting. Refer to Section 8—Drawings for mounting details. A bolt down Tool plate is available for the QC‑160 but reduces the capacity. Contact ATI for specification. The Tool plate assembly is equipped with (5) 3/8 NPT or G 3/8 BSPP and (4) 1/2 NPT or G 1/2 BSPP pass through air ports. If equipped a proximity sensor target is included in the Tool plate for use with an RTL sensor. F

Tool Plate Installation
Tools required: 8 mm hex key, torque wrench
Supplies required: Clean rag, Loctite 242
1. Clean the mounting surfaces.
2. Align the dowel pins to the corresponding holes in the Tool plate and secure the Tool plate to the tool interface plate or customer tooling with customer supplied customer supplied (10) M10 socket head cap screws using an 8 mm hex key. Apply Loctite 242 to threads
3. Connect utilities to the appropriate module and Tool plate connections.
4. If the installation is complete, the Tool plate may be put into normal operations.
