ATI: SC30 Tool Module Assembly 9121-SC30-T

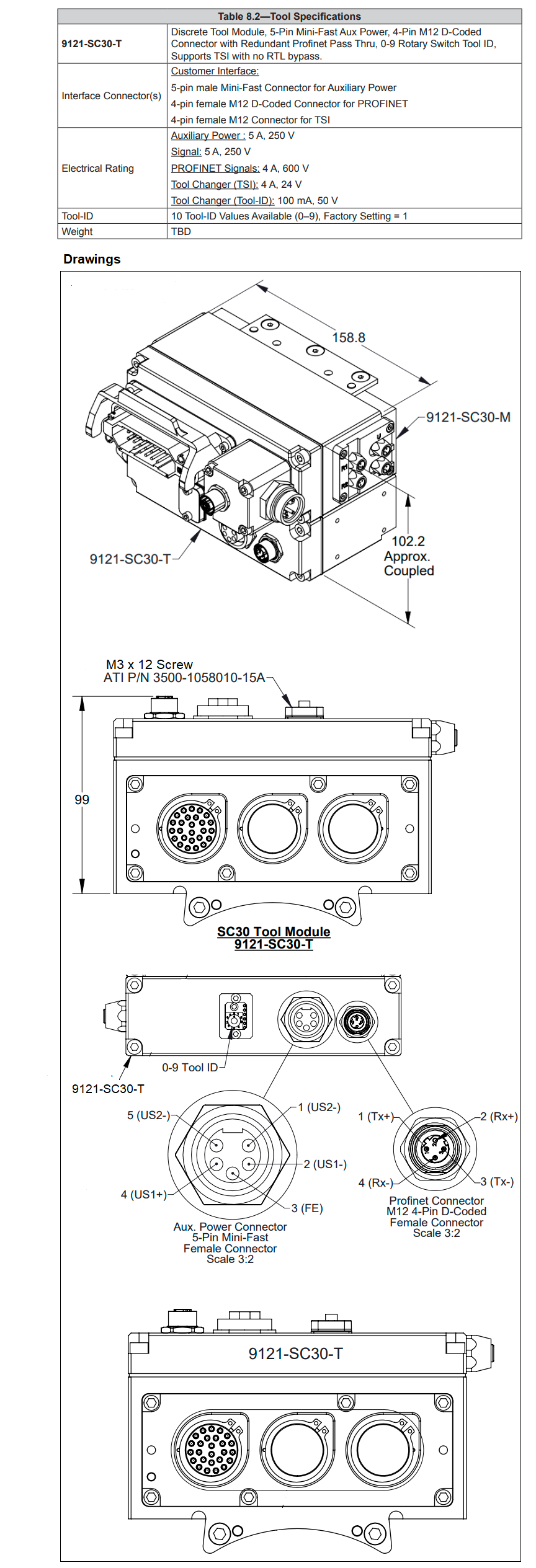

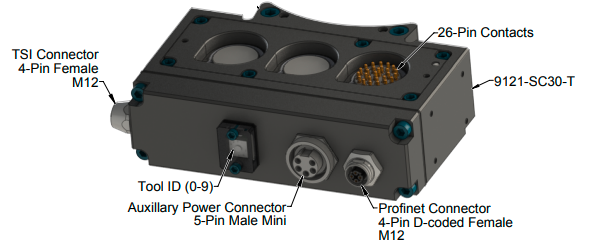

A 4-pin M12 female connector supports TSI signals. A 4-pin M12 female D-coded connector passes PROFINET signals. A 5-pin Minifast female connector provides auxiliary power. The Tool-ID feature on the SC30 Tool module identifies Tools, by a unique value (0-9), used by the Tool Changer.
Use the rotary switch on the Tool module to set Tool-ID numbers. Each Tool should be set to a unique number from 0-9.
Product Advantages
Allows for control of the Tool Changer and support of the robotic weld gun I/O to the end-of-arm tooling.
A 25-Pin HAN-D Harting connector, 5-Pin Minifast Aux Power, and 4-Pin M12 D-Coded connector with Redundant PROFINET pass-through are provided.
Supports L/U/R1/R2 sensors and Integrated Valve control.
0-9 Rotary Switch Tool-ID.
Supports TSI with no RTL bypass on the Tool.
Spring-loaded pin block allows the Master and Tool modules to communicate across their interface when coupled.
A flexible pin boot surrounds the pin block to seal the connection from moisture and liquid while coupled.
