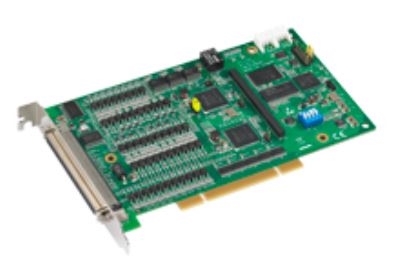

Advantech:4 Axis DSP Base Pulse Motion Controller PCI-1245-AE

Home > Controller >

Alternate View

Price : $780.00

Price with Selected Options: $780.00

Availability: Subject to availability
Order #: PCI-1245-AE

Accessories:

Qty:

Description

Specifications and Drawings

4 Axis DSP Base Pulse Motion Controller PCI-1245-AE
Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
Pulse output up to 5 Mpps
Memory buffer (10K points) for trajectory planning which is designed in DSP
Supports E-Gear, and helical interpolation
Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
Hardware emergency input
Watchdog timer
Position latch via ORG & index signal
Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP

Part No.	Description	Unit Price
ADAM-3920-AE	20-Pin Flat Cable Terminal, DIN-rail Mount	$28.00
ADAM-3952-AE	CIRCUIT BOARD, PCI-1240 Wiring Terminal, DIN-rail Mount	$72.00
ADAM-3955-AE	CIRCUIT MODULE, 2-Axis 50-pin SCSI DIN-rail motion wiring board	$76.00
PCL-10120-1E	IDC-20 Flat Cable, 1m	$10.00
PCL-10120-2E	DC-20 Flat Cable, 2m	$10.00
PCL-10251-3E	100Pin to two 50Pin SCSICable for PCI-1240,3M	$92.00
PCL-10153MJ3-2E	CABLE, DB26 to SCSI-50 Cable for Mitsubishi J3S, 2m	$22.00
PCL-10153PA5-2E	CABLE, DB26 to SCSI-50 Cable for Panasonic A5, 2m	$22.00
PCL-10153YS5-2E	CABLE, DB26 to SCSI-50 Cable for Yaskawa Sigma 5, 2m	$22.00
