Everything to get your Motor running within half an hour!

The EZHR17SK Starter Kit combines one EZHR17 (1.25 Amp 40V) Stepper Motor Controller + Driver, an RS485 Converter, and all cables required for the first time user to get their Stepper Motor moving in less than half an hour. The user needs to provide only a power supply, a stepper motor, and a PC.

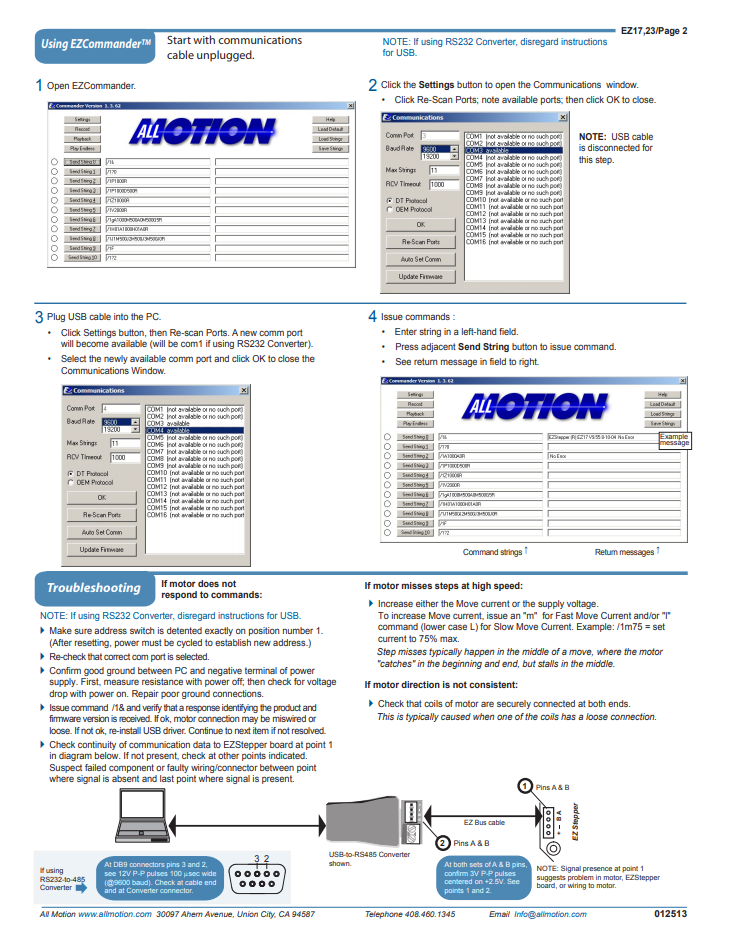

The second page of the EZStepper Wiring Diagram shows exactly how to wire the EZHR23 Stepper Motor Controller + Drive.

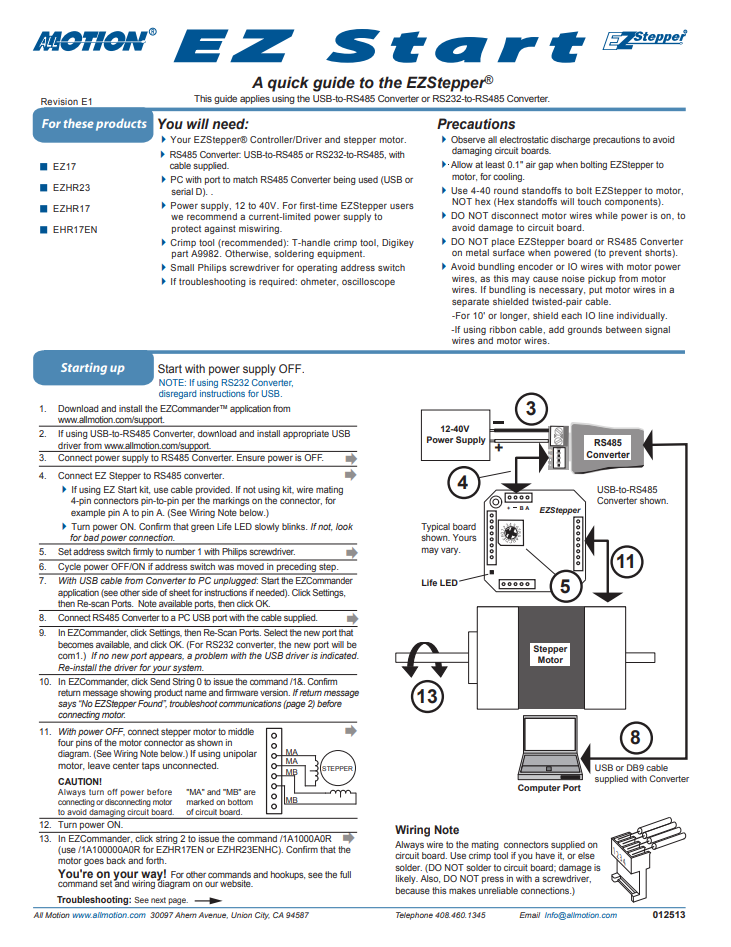

Once your motor is connected, connect the RS-485 Converter to your COM port on a PC and you'll be ready to start moving your motor. Please refer to the EZ Start Document available on the website.

Kit Includes

• One EZHR17 Stepper Motor Controller + Driver Board
• One RS485 Converter
• One Pre-Wired Opto Interrupter, for use as a home flag
• All Cables

Support Links

• EZStepper Wiring Diagram
• EZStepper Command Set
• EZStepper Windows Application
• EZ Starter Kit Instructions
• EZHR17 Datasheet
