AllMotion: Stepper Starter Kits EZHR23ENHCSK

Everything to get your Motor running within half an hour!

The EZHR23ENHCSK Starter Kit combines an EZHR23ENHC (7 Amp 40V) Stepper Motor Controller + Driver, an RS485 to USB Converter, and all cables required for the first time user to get their Stepper Motor moving in less than half an hour. The user needs to provide only a power supply, stepper motor, and a PC.

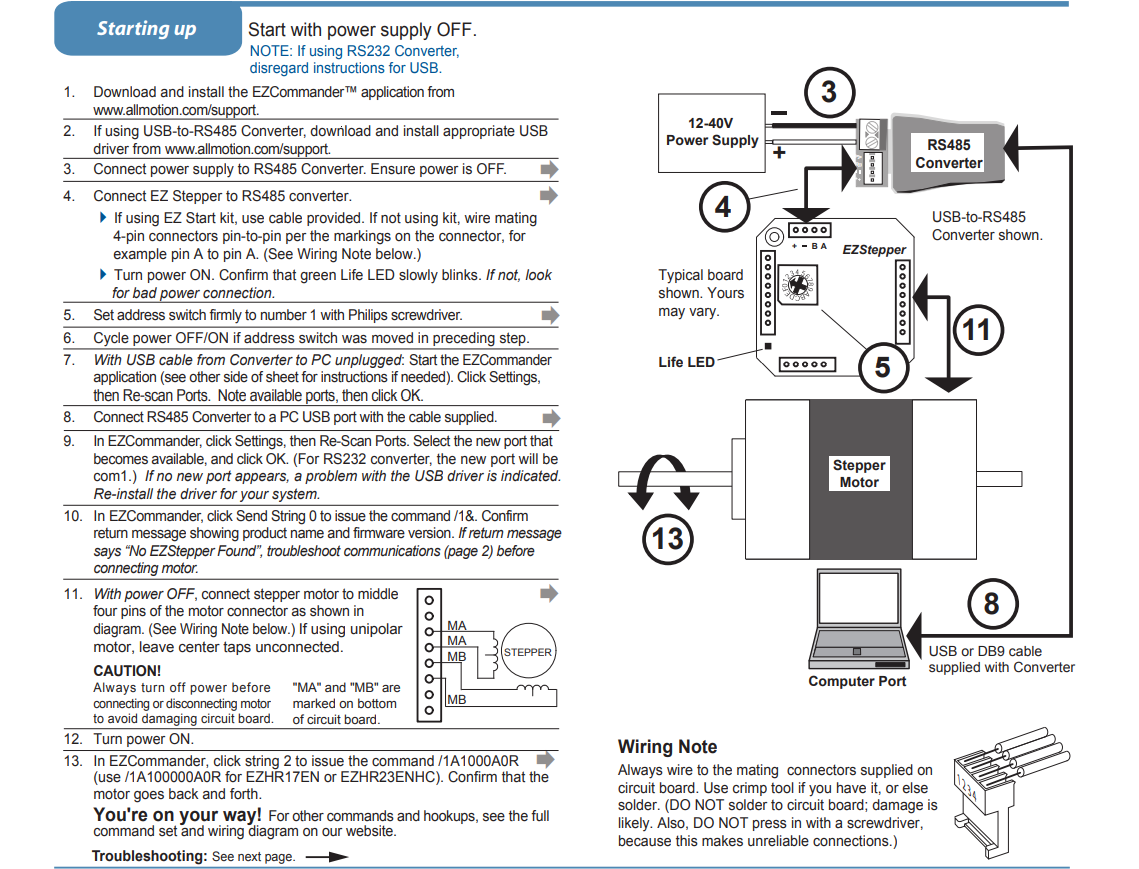

The second page of the EZStepper Wiring Diagram shows exactly how to wire the EZHR23 Stepper Motor Controller + Drive.

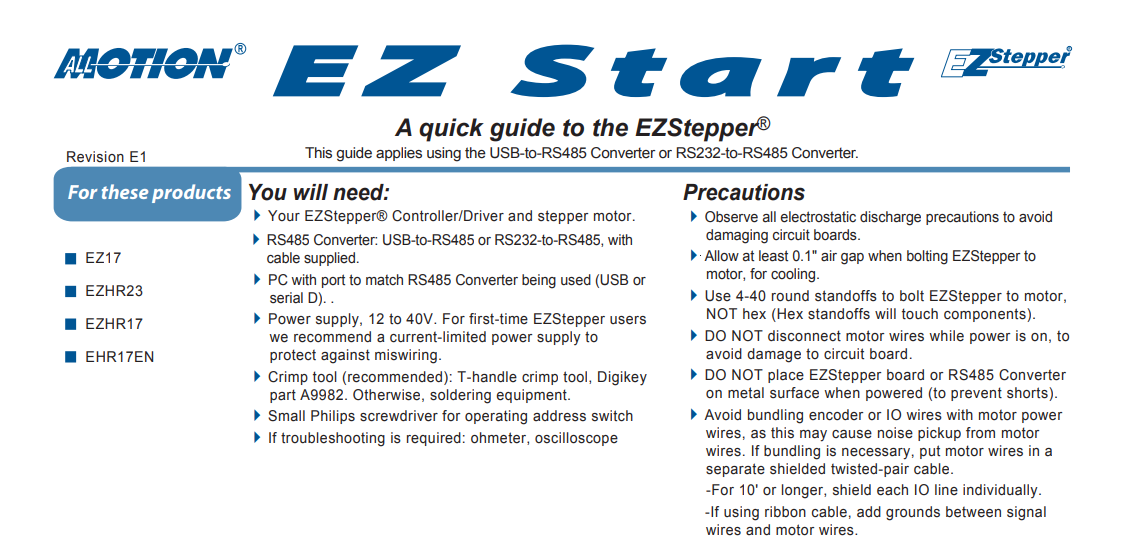

Once your motor is connected, connect the RS-485 Converter to your COM port on your PC and you'll be ready to start moving your motor. Please refer to the EZ Start Document available on the website.

RS232 to RS485 Starter Kit Contents

• EZHR23ENHC Stepper Motor Control+Driver
• RS485 to RS232 Enclosed Converter
• SK17-DB9 Wire Kit

USB to RS485 Starter Kit Contents

• EZHR23ENHC Stepper Motor Control+Driver
• RS485 to USB Enclosed Converter
• SK17-USB Wire Kit

Support Links

• EZStepper Wiring Diagram
• EZStepper Command Set
• EZStepper Windows Application
• EZ Starter Kit Instructions
• EZHR23ENHC Datasheet
• EZHR23ENHC 3D CAD Files
