AllMotion: Stepper Starter Kits EZHR23SK

Legacy

Everything to get your Motor running within half an hour!

The EZHR23SK Starter Kit combines one EZHR23 (3 Amp 40V) Stepper Motor Controller + Driver, an RS485 Converter, and all cables required for the first time user to get their Stepper Motor moving in less than half an hour. The user needs to provide only a power supply, stepper motor, and a PC.

The EZHR23 Stepper Motor Controller included with the Kit is preprogrammed with a short move sequence that will run the motor 200 steps in each direction 2 times. This happens as soon as power is applied. Initially no connection to a PC is required. Just connect your Stepper Motor, apply power and your motor will spin. (This power up sequence in the Stepper Drive can be erased or replaced with another sequence at a later time).

The second page of the EZStepper Wiring Diagram shows exactly how to wire the EZHR23 Stepper Motor Controller + Drive.

Once your motor is connected, connect the RS-485 Converter to your COM port on a PC and you'll be ready to start moving your motor. Please refer to the EZStart Document available on the website.

Kit Includes:

• One EZHR23 Stepper Motor Controller + Driver Board
• One RS485 Converter
• One Pre-Wired Opto Interrupter, for use as a home flag
• All Cables

Support Links

• EZStepper Wiring Diagram
• EZStepper Command Set
• EZStepper Windows Application
• EZ Starter Kit Instructions

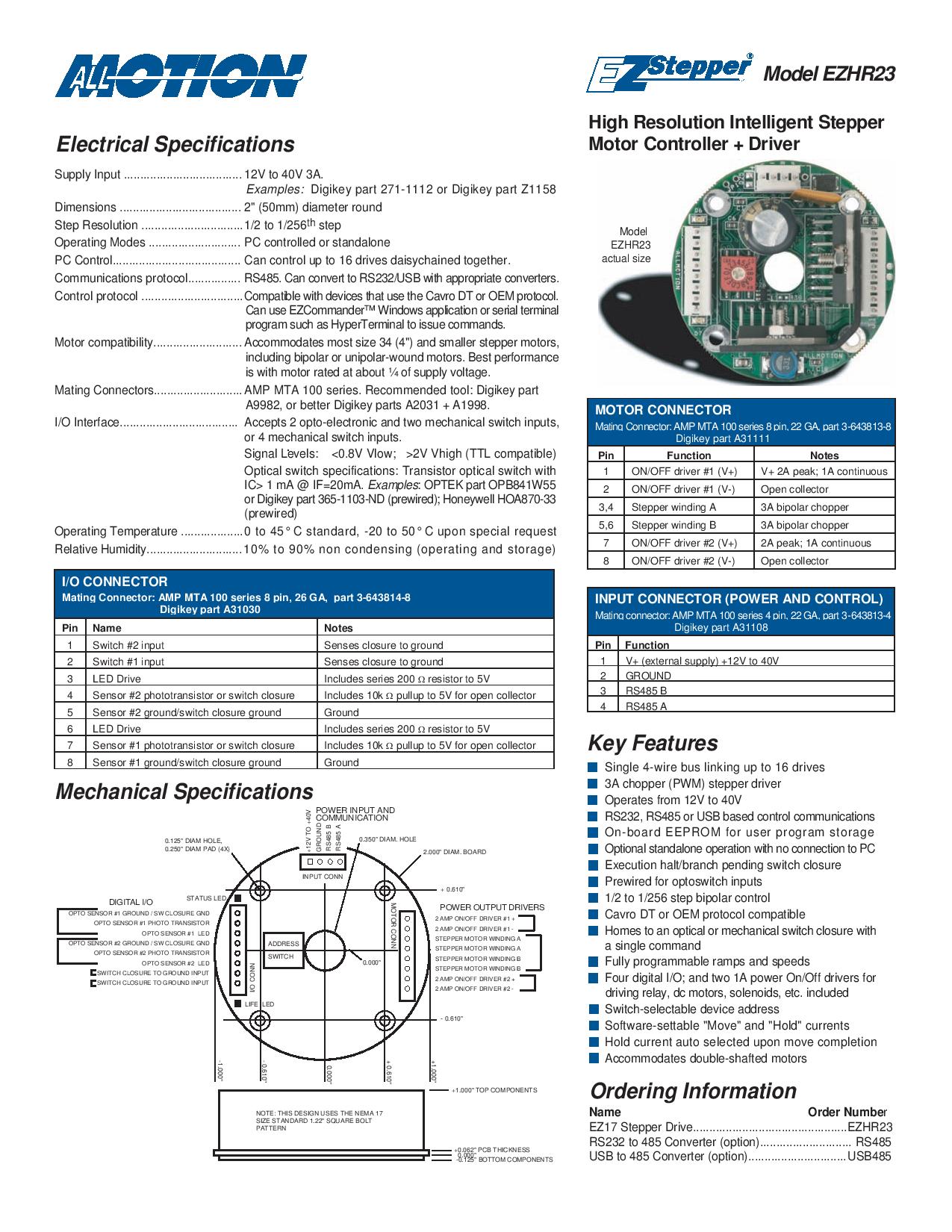

• EZHR23 Datasheet
