Everything to get 4 Motors running within half an hour!

The SK-4AXIS17XR Starter Kit combines an EZQUAD HR Stepper Stepper Motor Controller + Driver and communication cables required for the first time user to get 4 Stepper Motors moving in less than half an hour. The user needs to provide only a power supply, stepper motors and a PC.

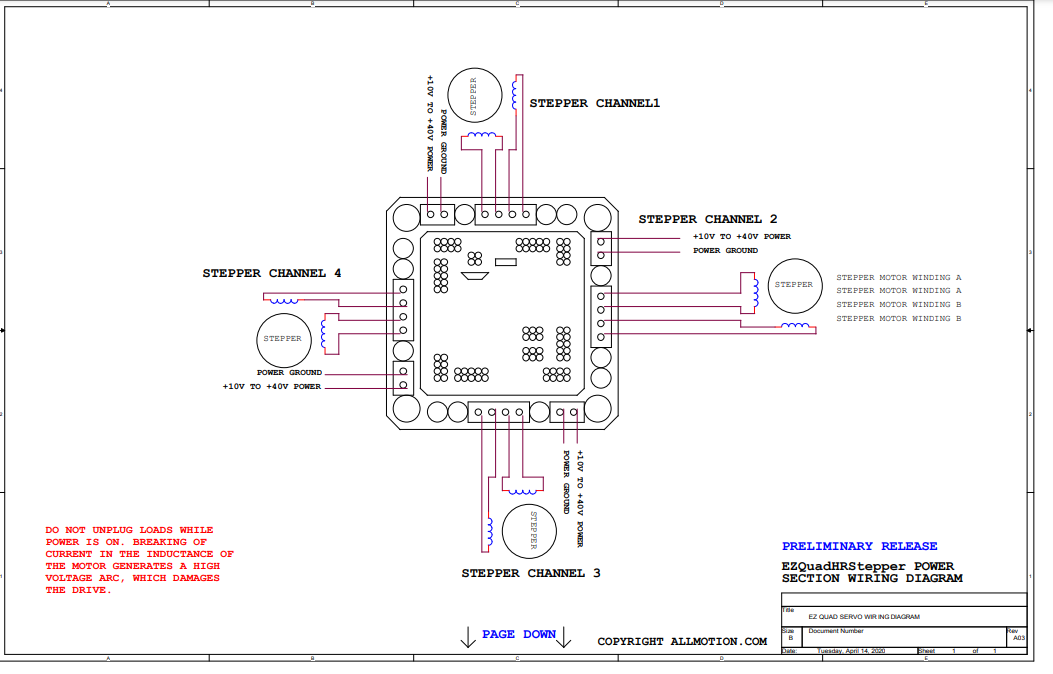

The EZQUAD HR Stepper Wiring Diagram shows exactly how to wire the EZ4AXIS Stepper Motor Controller + Drive.

Once your motor is connected, connect the USB cable to your PC and you'll be ready to start moving your motor. Please refer to the EZ Start Document available on the website.

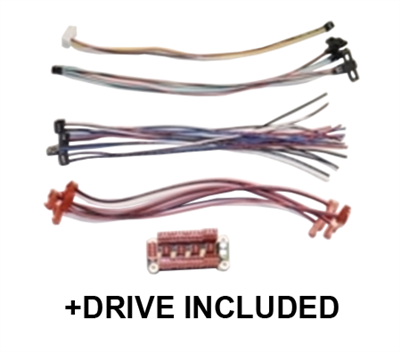

Kit Content

• EZQUADHRSTEPPER Stepper Motor Control+Driver
• SK-SK-EZQUAD_HR_STEPPER Wire Kit
• EZBus Station 9 Way

Support Links

• · EZQuad HR StepperCommandSet

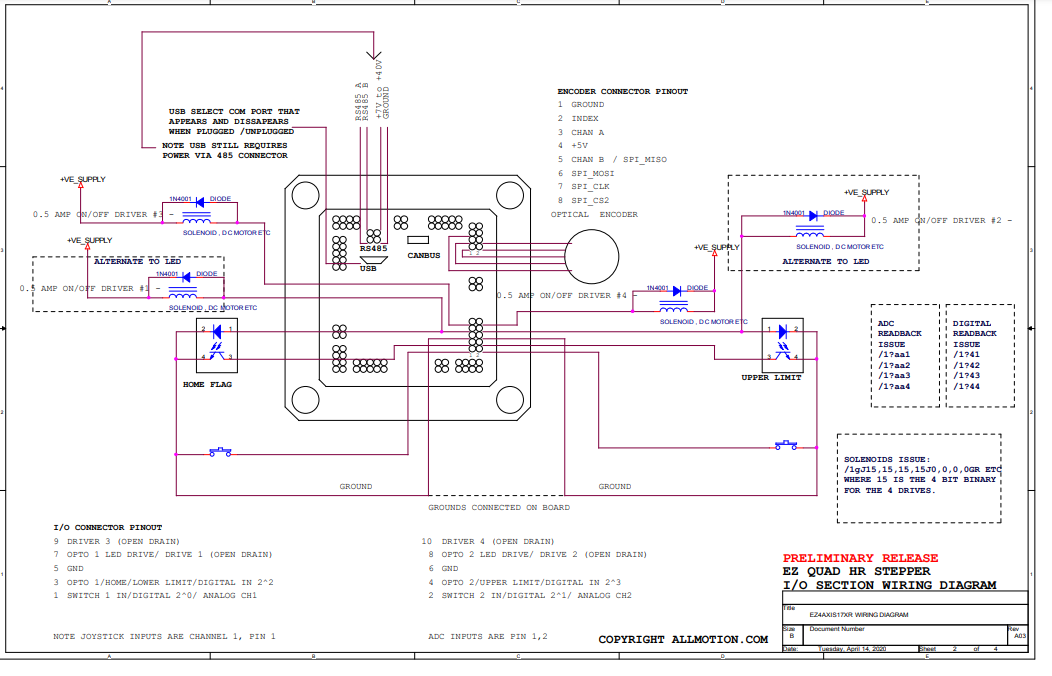

• · EZQuad HR Stepper WiringDiagram

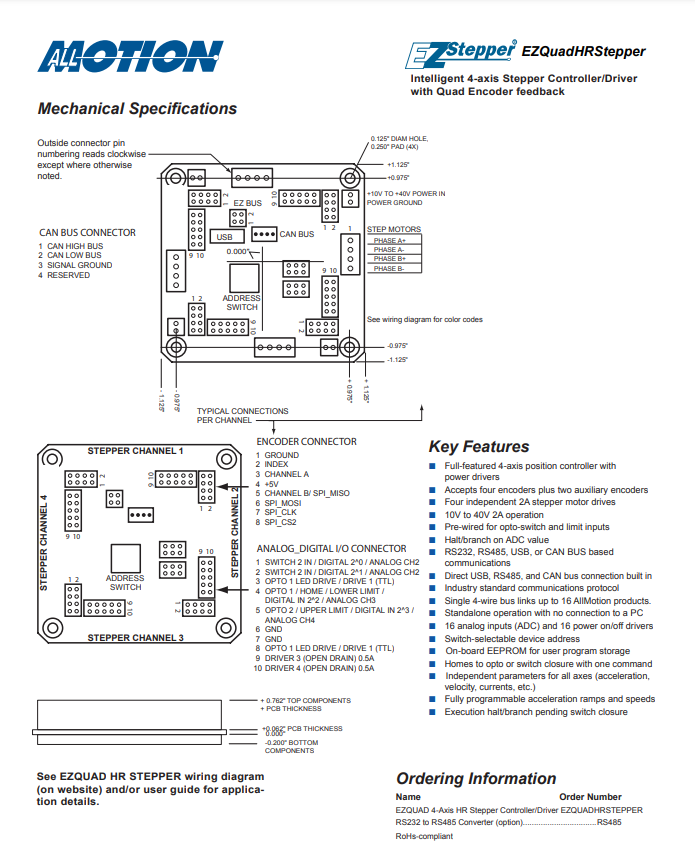

• · EZQuad HR Stepper Data Sheet
• · USB Drivers
