AllMotion: Stepper Starter Kits STEPPERSTICKSK

Everything to get your Motor running within half an hour!

The STEPPERSTICK Starter Kit combines one StepperStick (1 Amp 30V) Stepper Motor Controller + Driver, and all cables required for the first time user to get their Stepper Motor moving in less than half an hour. The user needs to provide only a power supply, a stepper motor, and a PC.

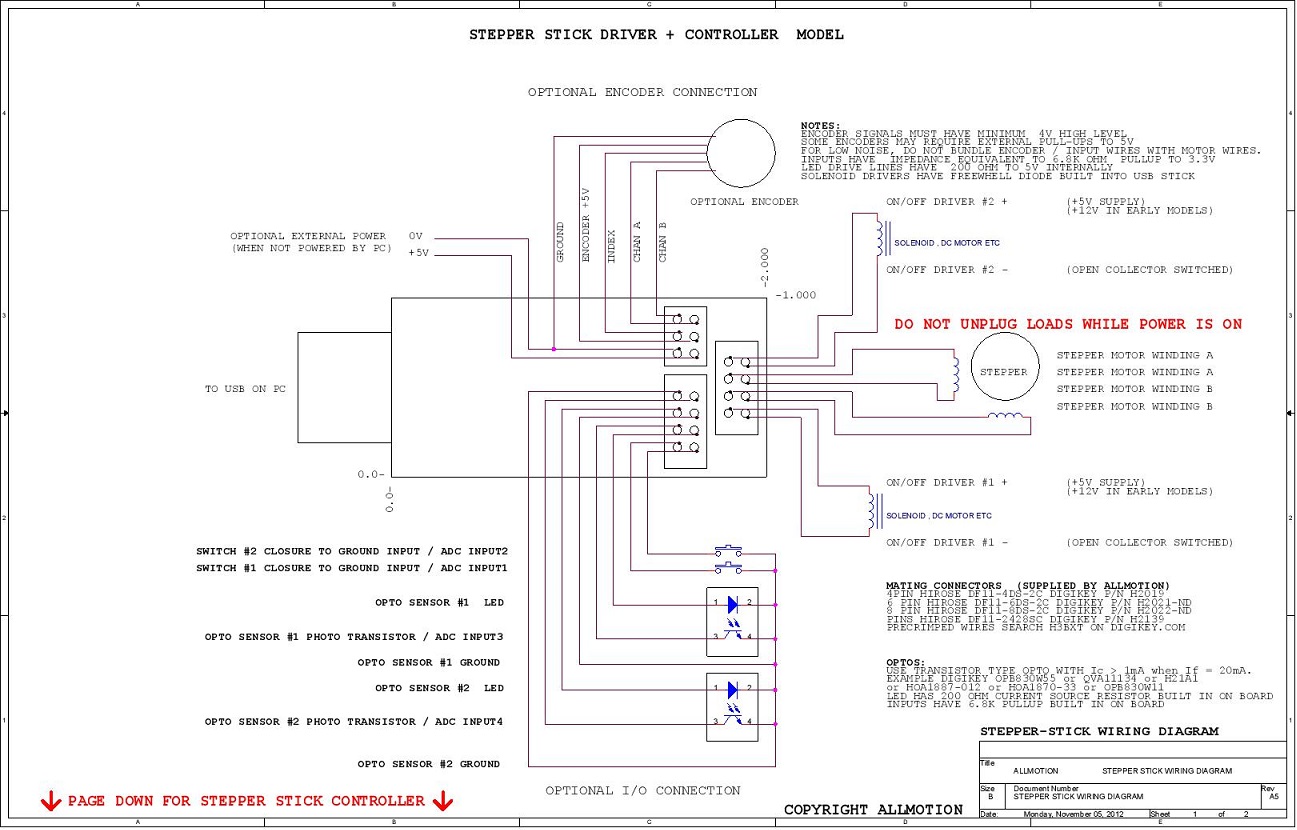

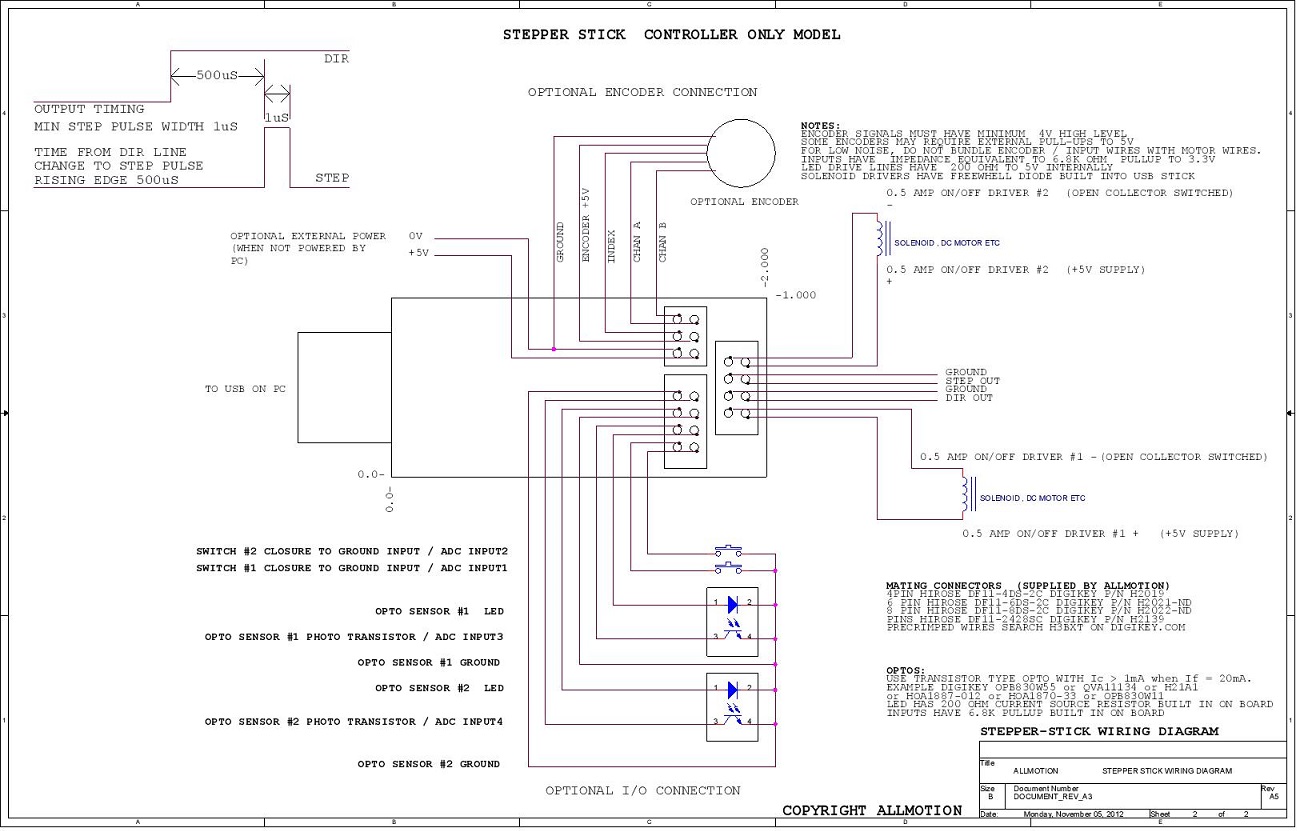

The StepperStick Wiring Diagram shows exactly how to wire the STEPPERSTICK Stepper Motor Controller + Drive.

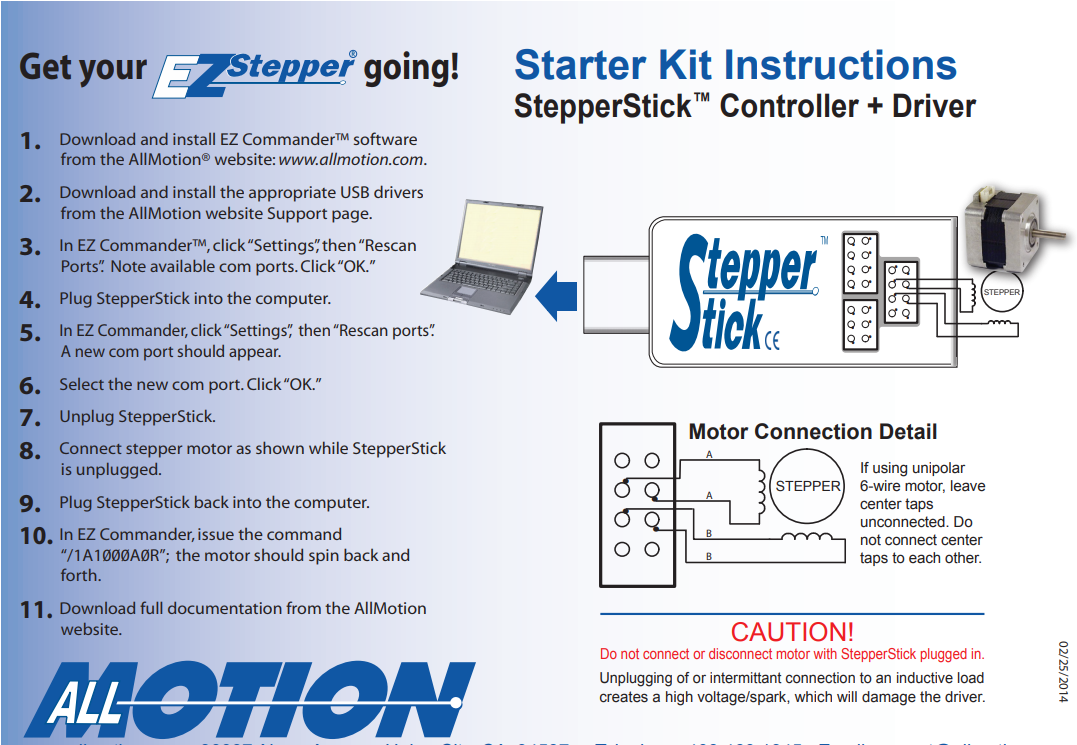

Once your motor is connected, plug the STEPPERSTICK in to a USB port on a PC and you'll be ready to start moving your motor. Please refer to the EZ Start Document available on the website.

Kit Contents

• STEPPERSTICK Stepper Control+Driver
• SK-STICK Wire Kit

Support Links

• STEPPERSTICK Wiring Diagram
• STEPPERSTICK Command Set
• STEPPERSTICK Data Sheet
• STEPPERSTICK EZStart
