Allmotion: Stepper Controller CONTROLLERSTICK

I/O Controls

The ControllerStick was designed to allow a first time user to learn to move a stepper motor intelligently in under half an hour.

Housed in a USB Stick measuring only 2" x 1" x 0.5” thick, the fully intelligent stepper motor Controller is capable of providing pullses to and step and direction trype stepper drive.

A Stepper Drive is wired to the stick via 4 wires. When inserted to the USB of PC, the drive draws power up to 0.5A from the PC. The ControllerStick appears as a Virtual Com Port, and commands are easily sent via ASCII text from any serial terminal program (such as HyperTerminal) or from the Windows Application.

The Commands are intuitive and simple. For example, the command A10000 will move the stepper motor to Absolute position 10000. This communications protocol is compatible with devices that use the Cavro DT or OEM protocol.

The ControllerStick is also capable of stand-alone operation with no connection to a PC. It can be set to execute a preset string of commands upon power up (i.e., only power is required in this mode). The Commands include nested loops and execution halt pending a switch closure, which is useful in stand-alone applications.

The ControllerStick Stepper Motor Controller will work with any stepper drive that accepts "step and direction" logic inputs. This drive is designed to enable a first time user to make a Stepper Motor move intelligently in less than half an hour.

Features

• Operates from 5V USB Power or external 5V source.
• Stand alone operation with no connection to a PC
• Execution Halt pending switch closure
• Pre-wired for OptoSwitch inputs (see wiring diagram)
• Industry standard communications protocol
• Homes to an Opto or Switch closure with a single command
• Fully programmable ramps and speeds
• Four Digital I/O and two 1/2 Amp Power On/Off Drivers included
• Optional ADC Inputs

Support Links

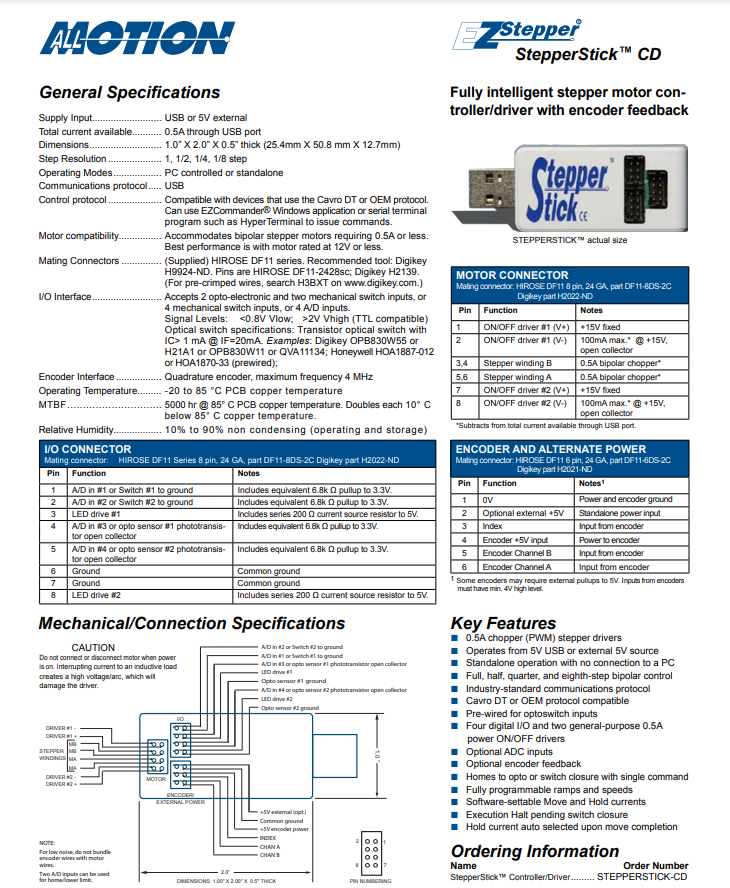

• Data Sheet

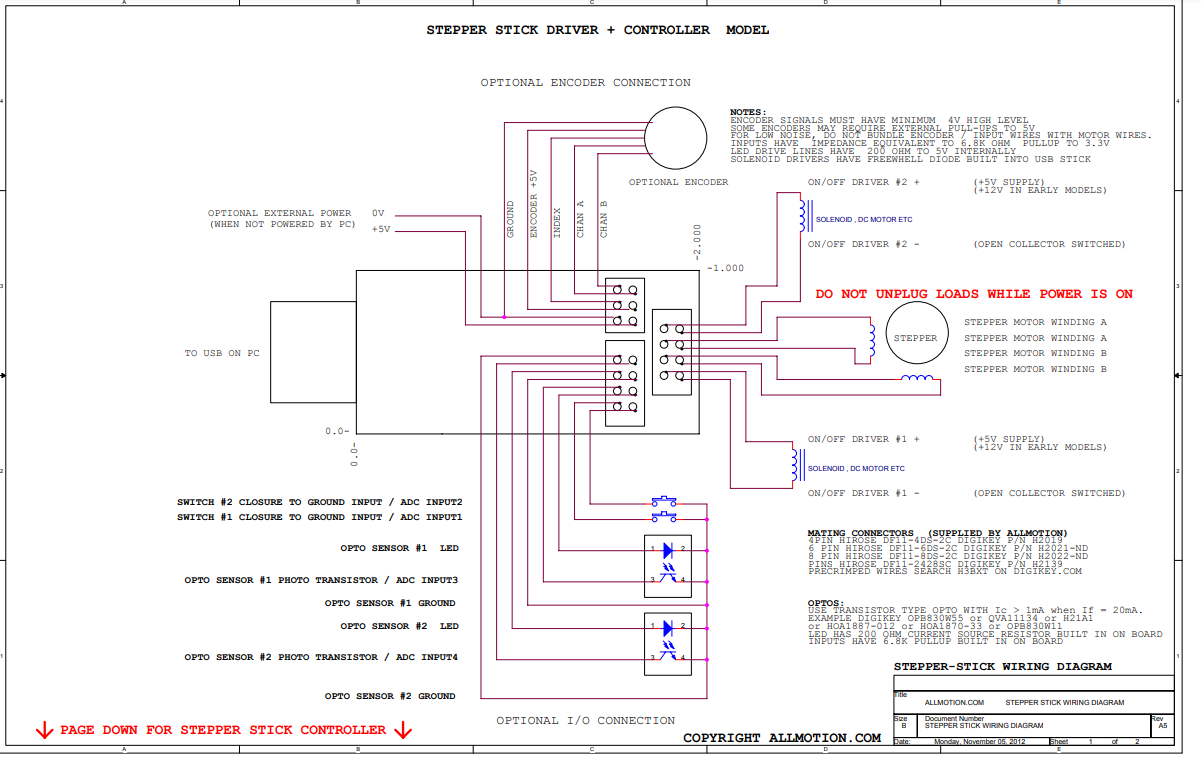

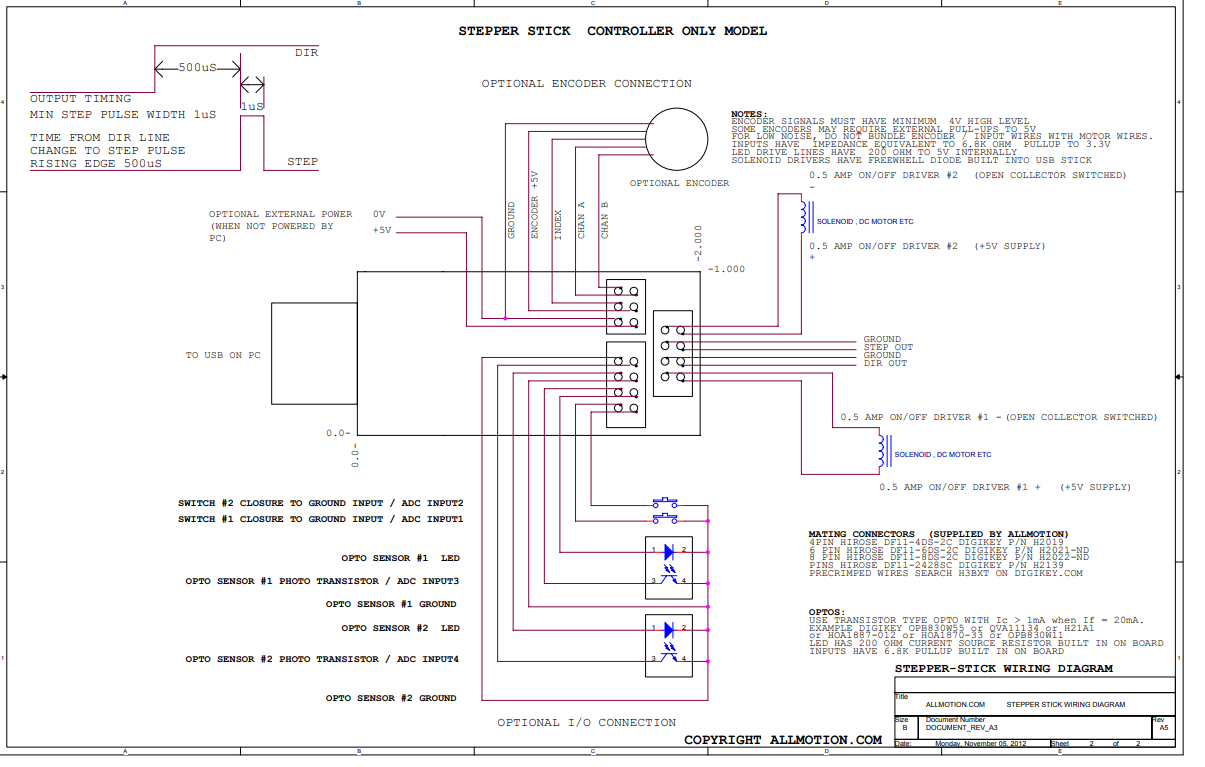

• Wiring Diagram
• Command Set
• Starter Kit Instructions
• Windows Application
