Integrate your serial RS-232/422/485 based industrial devices and equipment to a PROFIBUS control system without the need for any changes to the device. Just connect, configure and you're done!

The Anybus Communicator is a proven and trusted protocol converter gateway that connects non-networked industrial devices and equipment to PROFIBUS. The gateway performs an intelligent protocol conversion and presents the serial data to the Master PLC/Controller as easily processed I/O data.

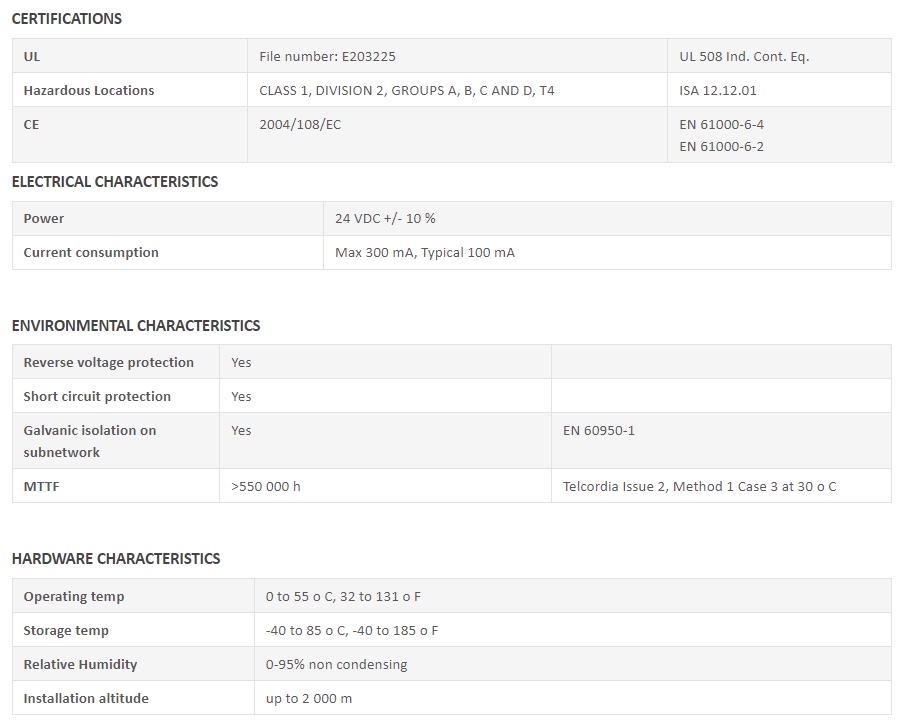

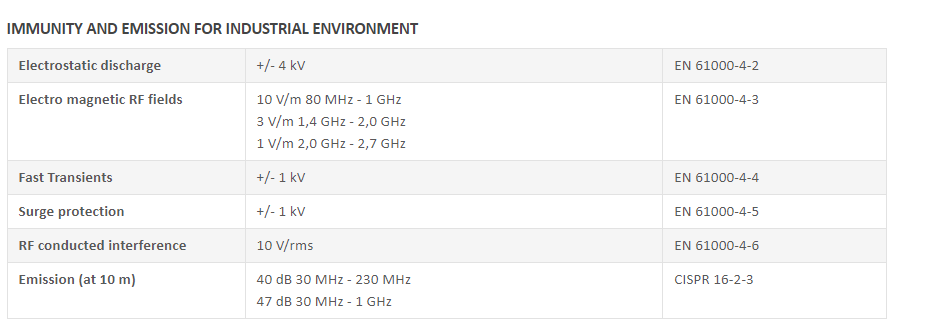

The Communicator is slim stand-alone gateway designed for IP20 and DIN-rail mounting, requiring a 24-volt power supply. The Communicator is conformance tested to current PROFIBUS specifications guaranteeing network compatibility.

CONVERT ALMOST ANY TYPE OF SERIAL PROTOCOL

The Communicator is capable of converting almost any type of serial protocol such as Modbus RTU, ASCII, DF1 or any other type of proprietary Query/Response or Produce/Consume protocol.

TYPICAL SERIAL APPLICATIONS

Typical serial applications include variable frequency drives, sensors, actuators, human machine interfaces, barcode readers, RFID readers and industrial scales among others.

SERIAL FEATURES

No high level programming skills are needed to set up the Anybus® Communicator as configuration is accomplished using the included, easy to use Windows™ based ACM (Anybus Configuration Manager).

• Selectable RS-232/422/485 interface
• Pre-defined 6-step Modbus-RTU configuration wizard
• Selectable pre-loaded DF1 commands. No scripting or serial frame building required!
• Ability to configure ASCII or vendor specific protocols (Request/Response or Produce/Consume via a visual frame building interface
• Multi-language support for English, German, Spanish, Italian, French, Polish, Russian, Chinese and Japanese
• Handy Save/Load function allows for a completed configuration to be re-used for many other installations
• Password protection prevents unauthorized upload and download of configurations
• Serial Line Listener and In-built Checksum calculations for diagnostic and troubleshooting

PROFIBUS INTERFACE FEATURES

• Complete PROFIBUS-DP slave according to IEC 61158
• Max 244 bytes of Input and 244 bytes of Output data - 416 bytes data length in total
• Automatic PROFIBUS baud rate detection (9600 bit / s - 12 Mbit / s)
• Supports PROFIBUS features: Sync and Freeze and Watchdog
• PROFIBUS uplink configuration via on-board switches or via .GSD file
• 1x D-sub 9-pin female PROFIBUS connector

FEATURES & BENEFITS

• Convert almost any RS-232/422/485 Request/Response or Produce/Consume protocol in just a few minutes — For example Modbus RTU, ASCII, DF1.
• Pre-defined for Modbus RTU. Avoid the hassle of scripting and serial Modbus frame building with the 6-step Modbus RTU wizard.
• No hardware or software changes are required for the connected automation device
• Compatible with PLCs from leading manufacturers such as Siemens, Rockwell, Schneider Electric etc
• Complete protocol conversion performed by the Communicator, no PLC function blocks required
• Handy Save/Load function means a completed configuration can be re-used for many other installations
• Included “Anybus Configuration Manager” with flexible serial frame building capabilities
• Versions with Dual Port switched Ethernet allows for daisy chaining and eliminates the need for external switches

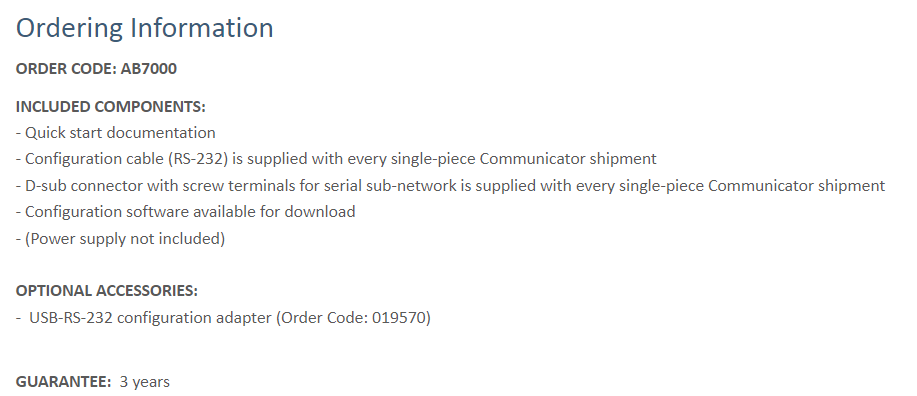

• Global free technical support and consultancy
