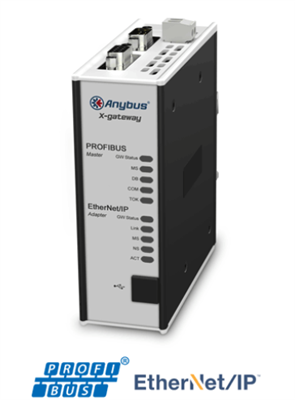

The Anybus X-gateway allows you to seamlessly inter-connect PLC control systems and their connected devices between PROFIBUS and EtherNet/IP networks.

FAST COPYING OF I/O DATA

The X-gateways primary function is with the fast transfer of cyclic I/O data between the two networks. This offloads your PLC from working with additional calculations. The gateway acts as a Master on the PROFIBUS network and as an Adapter on the EtherNet/IP network. The data transmission between the two networks is completely transparent, with a maximum data capacity of 512 bytes in each direction.

EASY CONFIGURATION - NO PROGRAMMING REQUIRED!

The connection between the two networks is qucikly set up in the Anybus Configuration Manager software, included with the X-gateway. No programming skills are needed to set up the X-gateway. As factory default the X-gateways have a pre-defined I/O size of 20 bytes I/O.

Features and benefits

• Fast copying of cyclic I/O data between PROFIBUS and EtherNet/IP networks (10-15 ms)

• Connected in minutes through a simple configuration. No programming required

• Proven and tested with all PLC manufacturers

• Powerful Master interface eliminates the need for a PLC controller on the PROFIBUS network

• Supports up to a maximum of 512 bytes of Input and Output data in each direction

• Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network

• Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server

• Optional control status information added to I/O data for diagnostic purposes

• Robust stand-alone housing for use in harsh industrial environments

• Global free technical support and consultancy

EtherNet/IP Adapter/Slave interface

EtherNet/IP adapter settings can be made either via the built-in web interface, or by importing the provided .EDS file into engineering tool of the controlling PLC.

• EtherNet/IP CONFORMANCE TESTED™ by ODVA

• EtherNet/IP Level 2 I/O Server CIP

• 10/100Mbit operation in full or half-duplex

• Max. 509 bytes Input and 505 bytes Output data

• Device Level Ring (DLR) functionality available (announce-based ring participant)

• Integrated FTP server provides easy file management using standard FTP clients.

• Web server with dynamic data capability and Server Side Include (SSI) capability

• Email client with dynamic data capability and Event-triggered email handling

• Per-user security framework

• Quality of Service (QoS) available

• DNS Capability

• TCP/IP settings via DHCP/ARP/Anybus IPconfig (HICP)

• Integrated switch allowing for a daisy-chain topology

• 2x RJ-45 EtherNet/IP ports available simultaneously

PROFIBUS Master/Scanner interface

An Anybus X-gateway with an integrated PROFIBUS Master interface can be used when there is no existing PROFIBUS controlling PLC.

• Complete Profibus DP Master functionality according to IEC 61158

• Controls up to 125 slaves

• Optional Live List of the active status of the connected slaves

• Maximum 512 bytes of I/O data in each direction

• Supports all baudrates up to 12Mbit/s

• Profibus Master/Slave configuration via the included Anybus Configuration Manager Windows tool via an RS-232 configuration port

• 1x D-Sub9 Male and 1x D-Sub9 Female connector
