Baumer: Diffuse Sensors with background suppression OT300.GL-GLZZJ.72N

Baumer: Diffuse Sensors with background suppression OT300.GL-GLZZJ.72N

Alternate View

Baumer

Price : $408.00

Availability: Mfr. Standard Leadtime
Order #: OT300.GL-GLZZJ.72N

Qty:

Description

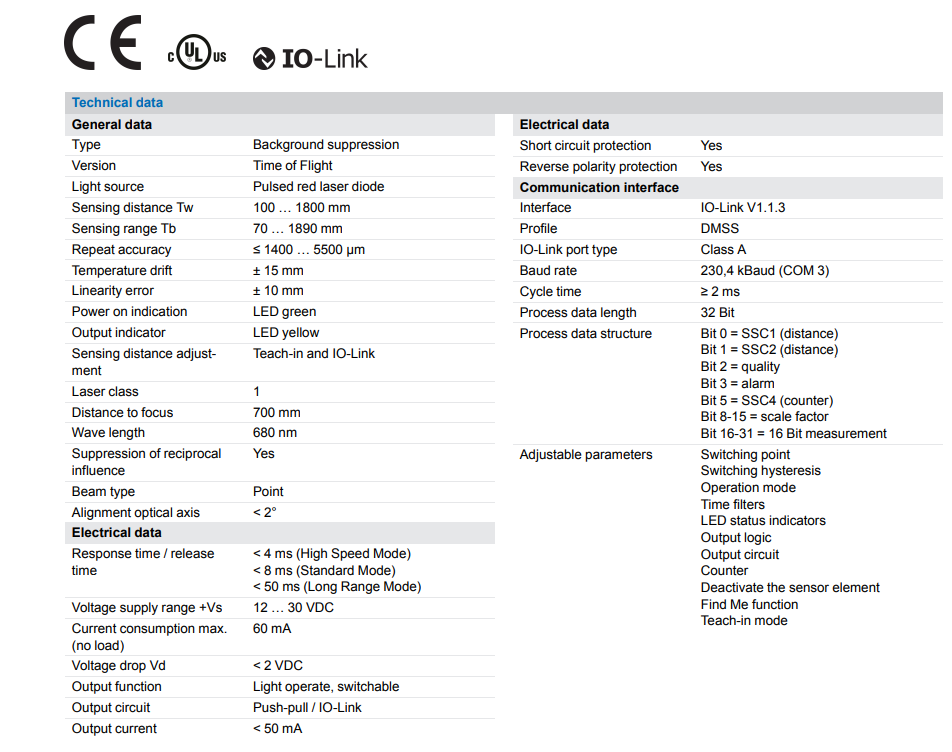

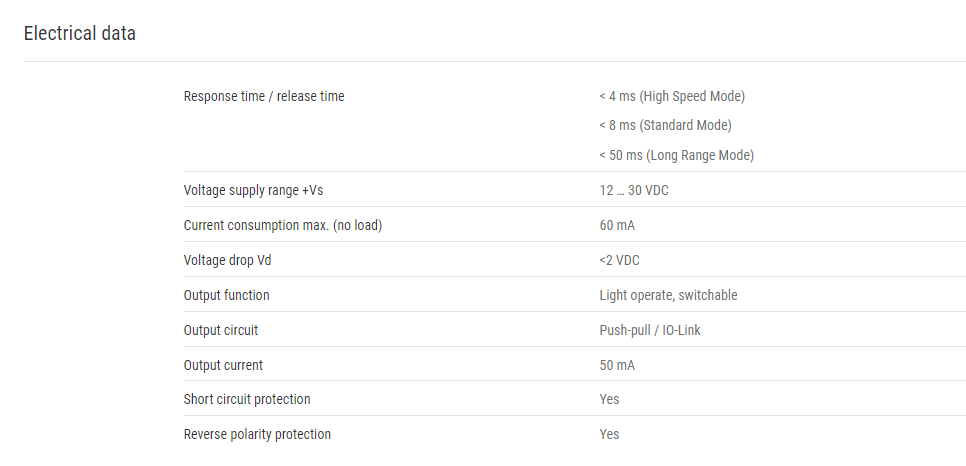

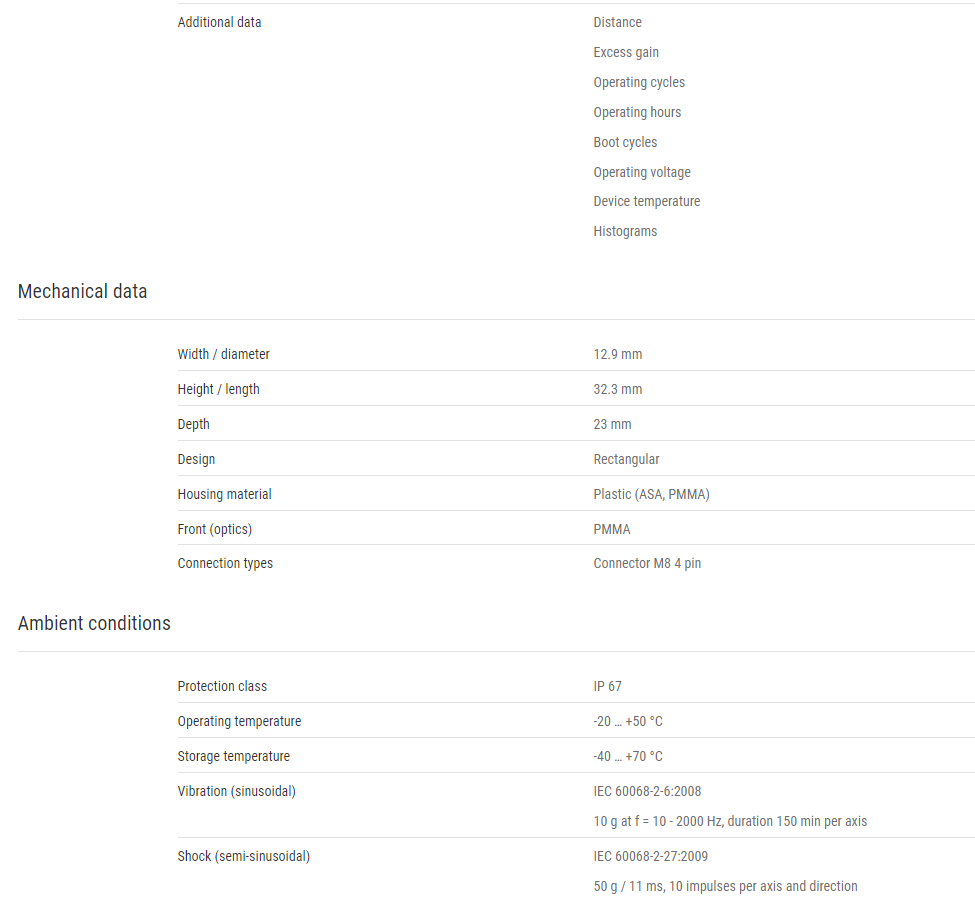

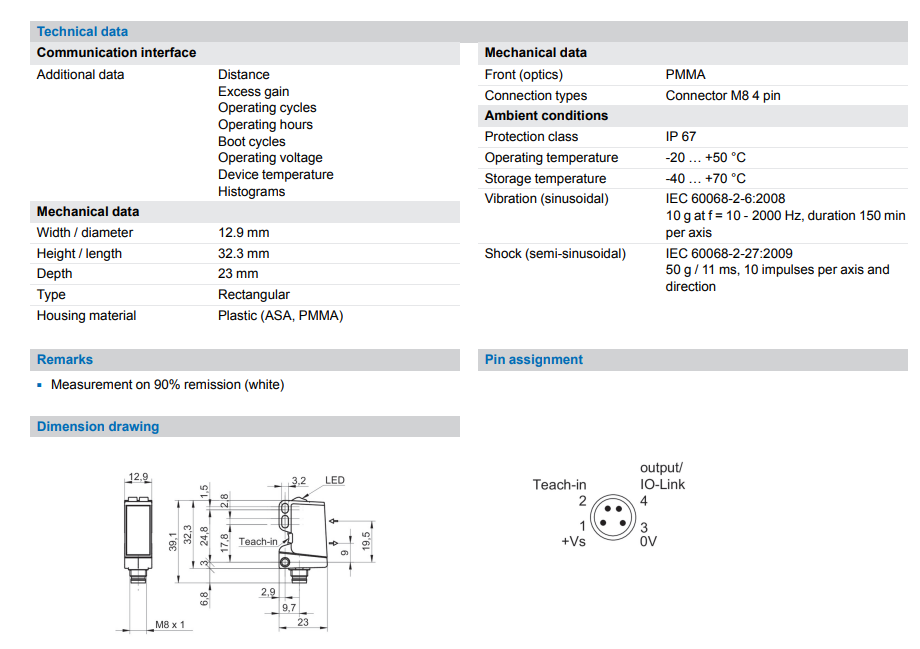

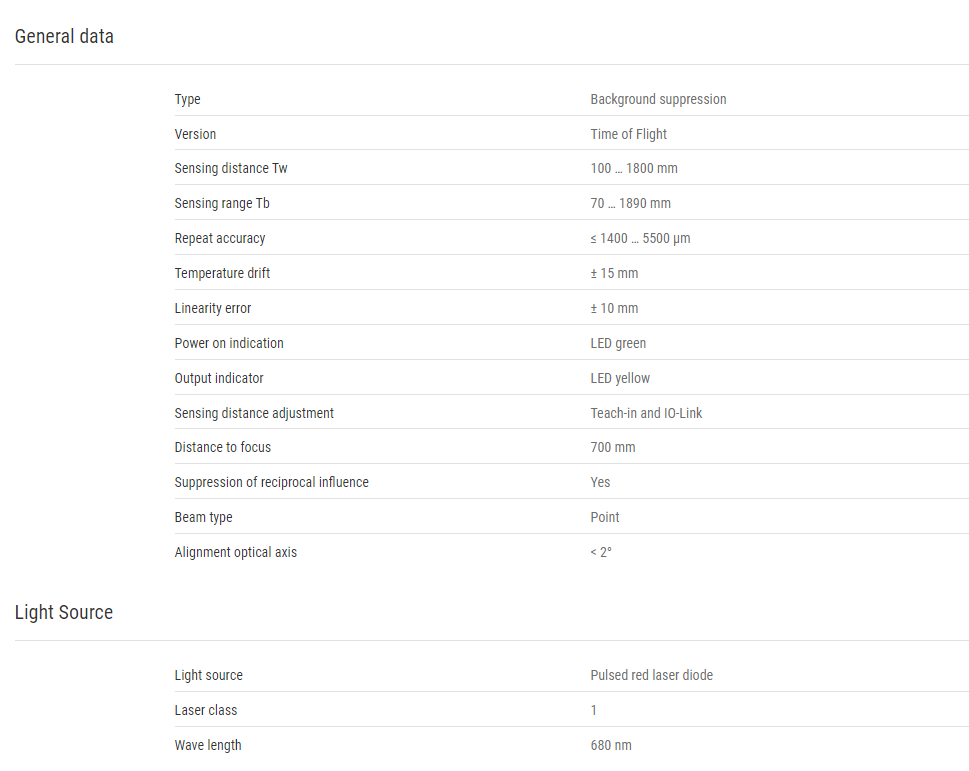

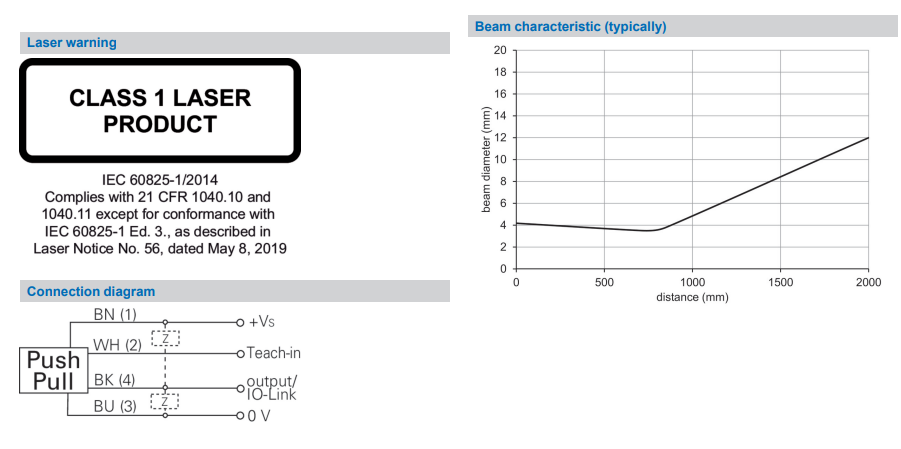

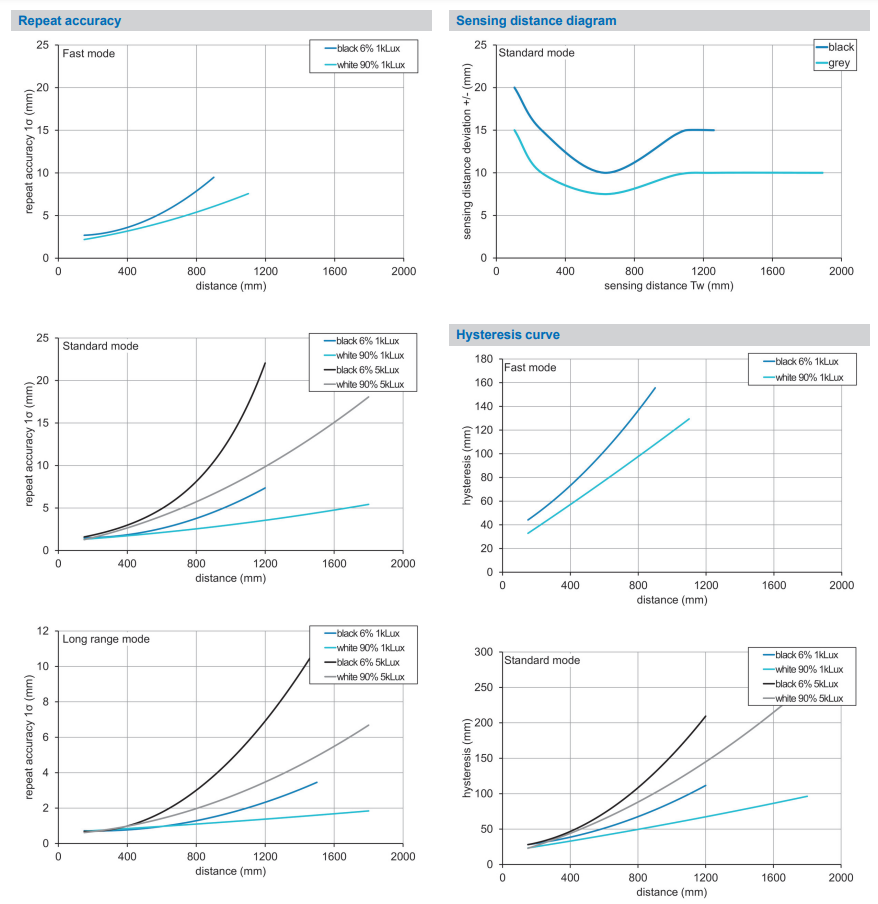

Specifications and Drawings

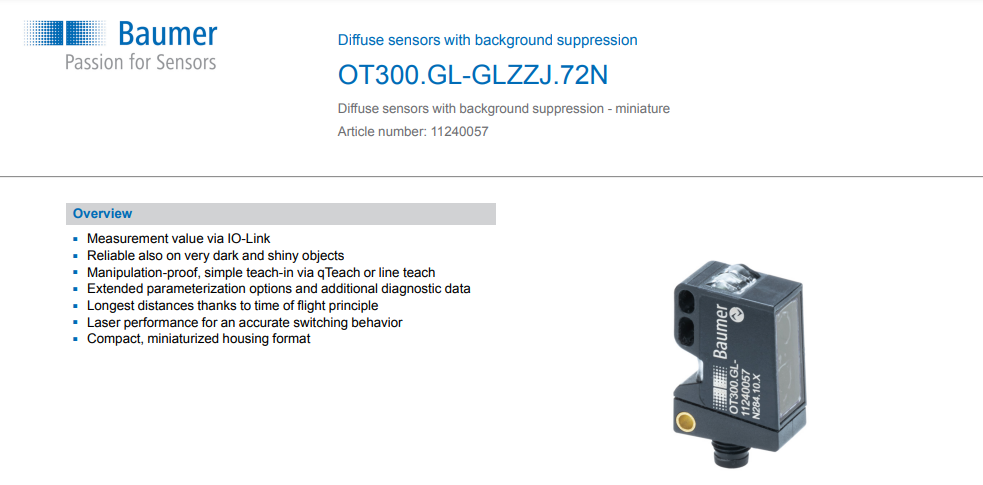

Baumer: Diffuse Sensors with background suppression OT300.GL-GLZZJ.72N
Article no.: 11240057
Diffuse sensors with background suppression - miniature

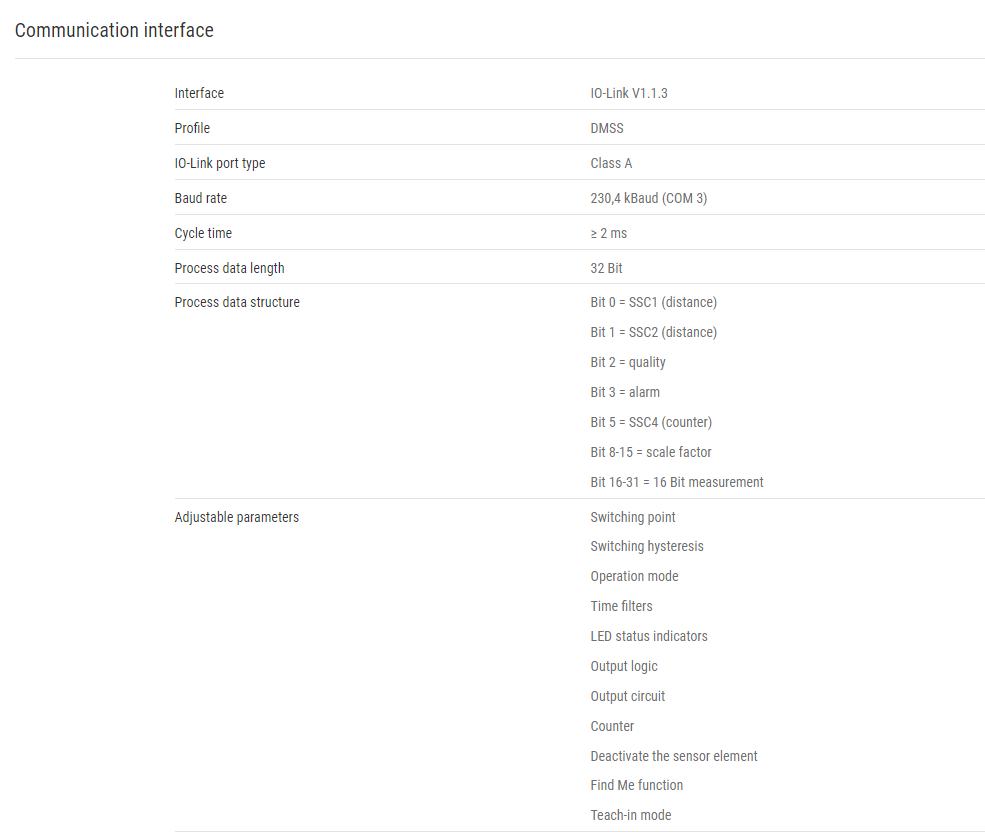

Measurement value via IO-Link
Reliable also on very dark and shiny objects
Manipulation-proof, simple teach-in via qTeach or line teach
Extended parameterization options and additional diagnostic data
Longest distances thanks to time of flight principle
Laser performance for an accurate switching behavior
Compact, miniaturized housing format

Software - IODD V1.1 (OT300GL)
- (ZIP | 279 KB)

EPLAN ________________________________________________Link to Data Portal

Support Links
Baumer: Sensors for object detection and distance measurement
