Faulhaber: Brushless DC-Servomotors Series 1935...BRC

Motors with integrated Drive Electronics (Diameter: 19 mm, Length: 35 mm)

Brushless DC-Motors

The efficient motor series with continuously smooth-running impresses with an extraordinarily long service life. In optimized continuous operation, the motors of the BRC family convince with their high-performance bearings and cogging-free running in the linear speed and torque range.
The brushless motors with integrated speed controller operate with precise speed control. This allows the operating point and the operating behavior to be precisely controlled by means of corresponding software. Measuring 15 to 31 mm in diameter, these motors are suitable for installation in extremely confined spaces and – thanks to their robust design – also for applications with high loads. The motors can be operated reversibly in a clockwise or anti-clockwise direction, depending on the required control mode. The frequency output of these motors enables precise reproduction and determination of the speed of the motor.

Motors with integrated Speed Controller

These new brushless DC motors combine the advantages of a slotless brushless motor with dedicated, high precision, speed control electronics.

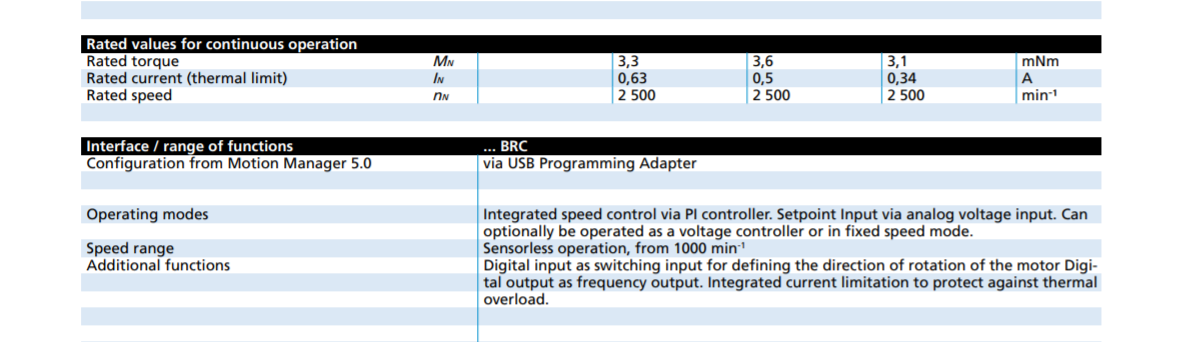

Speed control is achieved using the on board PI controller with an external command voltage.

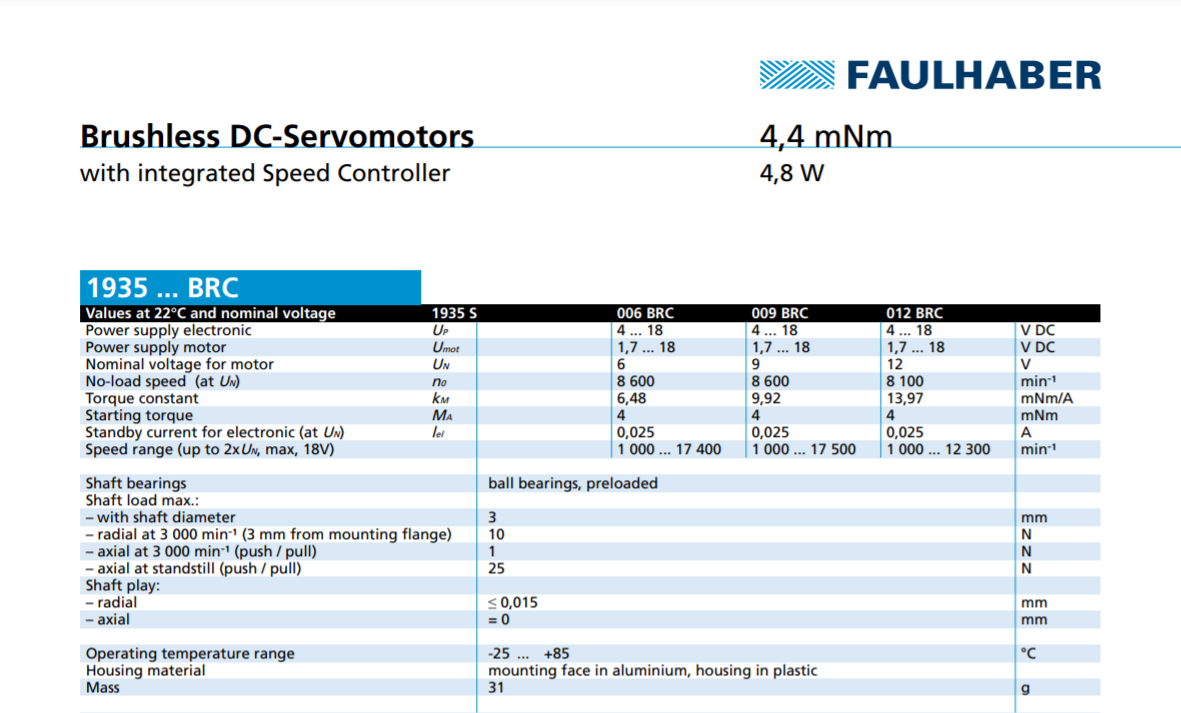

Brushless DC-Servomotors 1935...BRC Series with integrated Speed Controller

Features and Benefits:

Model No.: 1935S006BRC, 1935S009BRC, 1935S012BRC
