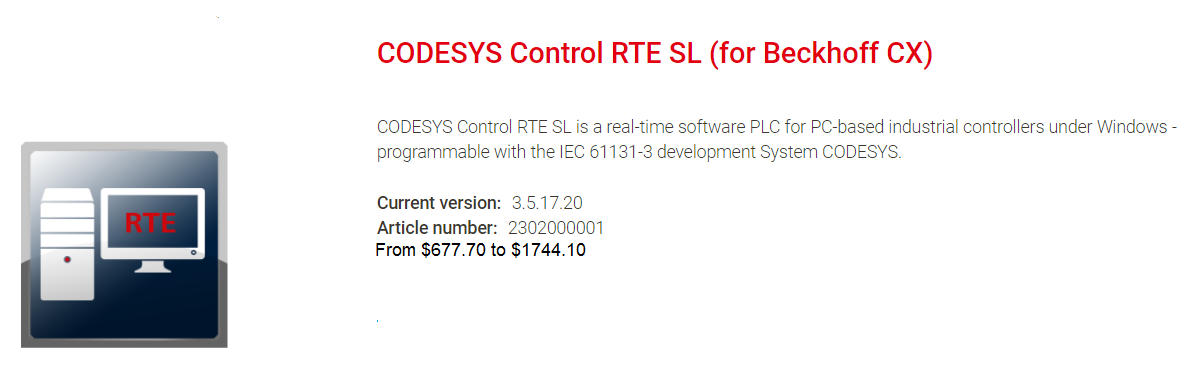

CODESYS Control RTE SL (for Beckhoff CX) Article no.2302000001
The product CODESYS Control RTE SL is a real-time software PLC for PC-based industrial controllers under Windows. The runtime system has its own real time kernel: deterministic behavior with jitter values in the µs region without additional hardware components or operating system extensions.

Interfaces

CODESYS OPC UA Server

The following CAN-PCI cards are supported:

Peak PCI: PCIe, MiniPCIe

Ixxat: SJA1000 (PCI card)

Automata: all PCI cards (1- and 2-channel)

Fieldbus support

With the delivery of the Runtime Package the following fieldbuses are supported:

CODESYS CANopen Manager / Device

CODESYS EtherCAT Master

CODESYS EtherNet/IP Scanner / Adapter

CODESYS J1939

CODESYS Modbus TCP Master / Slave

CODESYS Modbus Serial Master / Slave

CODESYS PROFIBUS Master

CODESYS PROFINET Controller / Device

CODESYS Sercos III Master

Product options

The product can be extended by the following chargeable options:

CODESYS SoftMotion SL

CODESYS SoftMotion CNC+Robotics SL

CODESYS WebVisu SL

CODESYS TargetVisu SL
