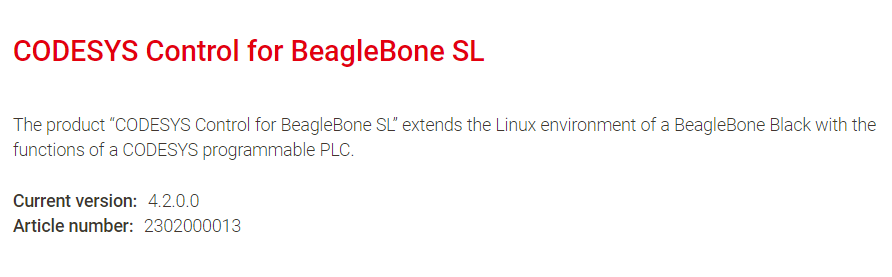

CODESYS Control for BeagleBone SL Article no. 2302000013

The CODESYS runtime environment contained in the product is specially adapted to the Beaglebone Black, the community supported hardware. With a CODESYS single device license (SL), users can permanently realize a PLC device and use functions of the freely available development environment CODESYS Development System to configure it in IEC 61131-3.

Benefits

The software package contains an extension for the CODESYS programming environment, with which an update mechanism is integrated in order to install the runtime environment on the BeagleBone Black without LINUX knowledge. The installation of the CODESYS Runtime component on the BeagleBone Black takes place in the form of a Debian package, directly from the CODESYS Development System. The supplied examples supplement the software package with useful applications that facilitate the first steps in the application.

With the integrated CODESYS “Wink” mechanism, the hardware can be clearly assigned to an existing gateway connection by flashing the LED.

Detailed information can be found in the CODESYS Online Help.

Interfaces

CODESYS OPC UA Server, as full version for data exchange.

GPIOs and analog inputs, supported as local interfaces.

Visualization

CODESYS WebVisu, is included as full version in the delivery of the runtime package.

Fieldbus support

With the delivery of the Runtime Package the following fieldbuses are supported:

CODESYS CANopen Manager / Device

CODESYS EtherCAT Master

CODESYS EtherNet/IP Scanner / Adapter

CODESYS J1939

CODESYS Modbus TCP Master / Slave

CODESYS Modbus Serial Master / Slave

CODESYS PROFINET Controller / Device

Product options

Further products can be licensed for a fee:

CODESYS BACnet SL

CODESYS KNX SL

CODESYS Redundancy SL

CODESYS SoftMotion SL

CODESYS SoftMotion CNC+Robotics SL
