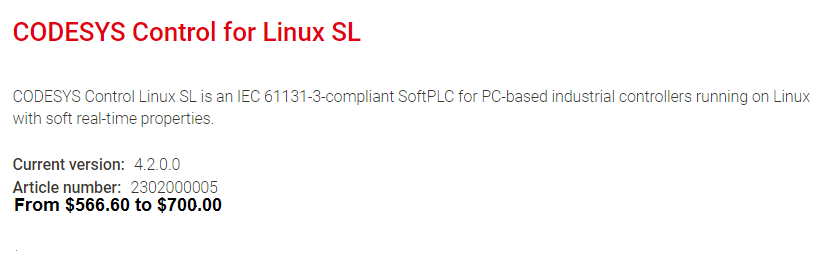

ODESYS Control for Linux SL Article no. 2302000005

CODESYS Control Linux SL converts an industrial PC into a high-performance PLC – scalable to nearly any degree by the PC performance. The system is suitable for applications without hard demands on the real-time behavior.

Benefits

The runtime system supports numerous I/O interfaces, such as discrete inputs and outputs or fieldbus adapters, as well as integrated IEC 61131-3 protocol stacks. The fieldbuses are configured directly in the CODESYS Development System without using any additional tools.

Communication with the CODESYS Development System, also for debugging the running application

Execution of controller functions and generation of graphical user interfaces

Operation of I/O systems and fieldbuses

Detailed information can be found in the CODESYS Online Help.

Interfaces

CODESYS OPC UA Server, as full version for data exchange.

Visualization

CODESYS WebVisu, is included as full version in the delivery of the runtime package.

Fieldbus support

With the delivery of the Runtime Package the following fieldbuses are supported:

CODESYS CANopen Manager / Device

CODESYS EtherCAT Master

CODESYS EtherNet/IP Scanner / Adapter

CODESYS Modbus TCP Master / Slave

CODESYS Modbus Serial Master / Slave

CODESYS PROFIBUS Master

CODESYS PROFINET Controller / Device

Product options

Further products can be licensed for a fee:

CODESYS BACnet SL

CODESYS Control for Linux MC SL

CODESYS KNX SL

CODESYS Redundancy SL

CODESYS SoftMotion SL

CODESYS SoftMotion CNC+Robotics SL
