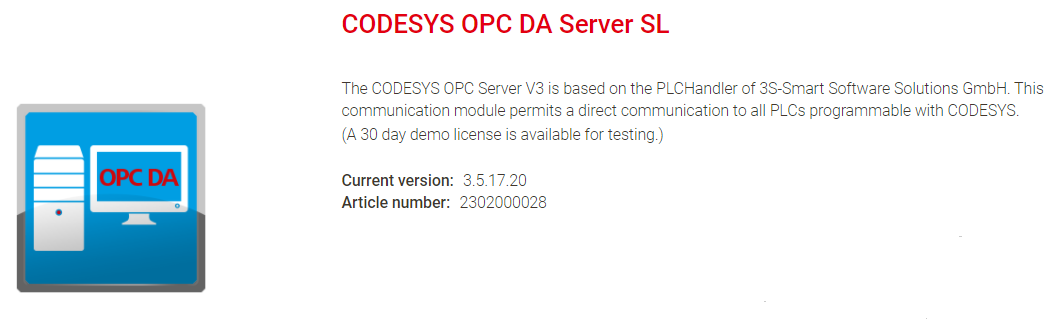

CODESYS OPC DA Server SL Article no. 2302000028

CODESYS OPC DA Server SL

The CODESYS OPC Server V3 is based on the PLCHandler of 3S-Smart Software Solutions GmbH. This communication module permits a direct communication to all PLCs programmable with CODESYS.

(A 30 day demo license is available for testing.)

Product description

The OPC Server is able to communicate with both, V3 as well as V2.3 PLCs, at the same time. Furthermore a missing PLC can be simulated. Then a symbol file with all symbols instead of the PLC provides the OPC server the symbol pool (XML file or SDB file).

A detailed description of all functionalities and commissioning can be found in the CODESYS OPC DA user guide (part of the setup).

Thereby, the CODESYS OPC Server V3.x supports the following OPC specifications:

OPC Common Definitions and Interfaces Version 1.0

Data Access Custom Interface Standard Version 1.0

Data Access Custom Interface Standard Version 2.05A

Data Access Custom Interface Standard Version 3.0 Data Access Automation Interface Standard Version 2.0

Alarms and Events Custom Interface Version 1.1

Communication between OPC Server and PLC can be carried out via one of the following interfaces:

Gateway V3

Gateway V2.3

ARTI

ARTI3

SIMULATION

SIMULATION3
