CODESYS PROFINET Device SL Article no. 2303000021

Data Sheet CODESYS PROFINET Device SL

The CODESYS PROFINET Device enables a CODESYS PLC to act as a PROFINET Device that is programmable with the CODESYS Development System.

Product description

PROFINET (Process Field Network) is an open standard for realtime industrial Ethernet systems in automation technology. It is promoted by the user organization PI (PROFIBUS & PROFINET International as an umbrella group of the PROFIBUS user organization PNO) and is regarded as the successor of PROFIBUS. PROFINET uses UDP/IP and IEEE 802.3 (Standard Ethernet) for acyclic services and/or I/O communication

The fully integrated CODESYS PROFINET Device Solution provides a uniform configurator for different variants of underlying PROFINET Device communication stacks:

CODESYS PROFINET Device (IEC)

Protocol stack in the form of a CODESYS library (in IEC 61131-3 code), operates on standard network interface cards. The Ethernet adapter is not used exclusively, it’s still available for all other applications using TCP/IP on this adapter (e.g. CODESYS Visualization, Web Browser).

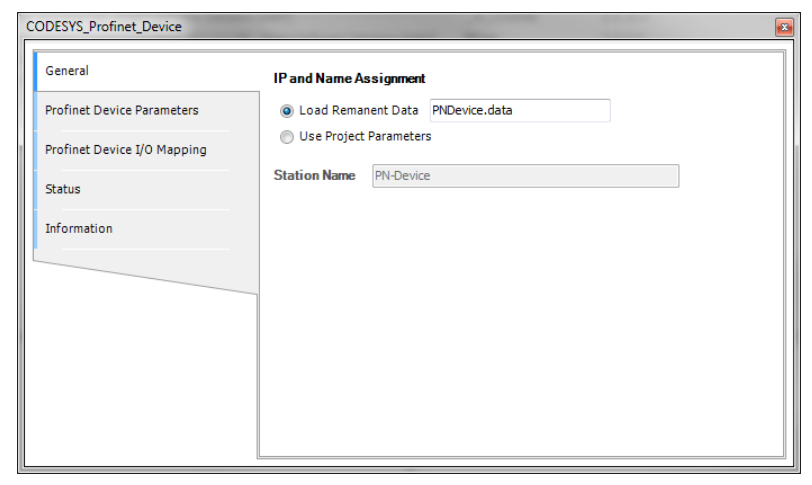

CODESYS PROFINET Device Configurator

Configurator for settings of PROFINET Device Sample GSDML file included in scope of delivery Configuration of module’s in- and output-mapping Status page with detailed view of currently pending diagnostics
