CODESYS Text Editor Example - Article no.000105

With the sample project Text Editor. project included in the package, you can open, close, create, and save text files. By entering a text into the search field, corresponding words and lines can be found in a file. Moreover, a text field allows for writing and editing of texts, and the “Read Only” mode can be adapted by means of a switch.

More information

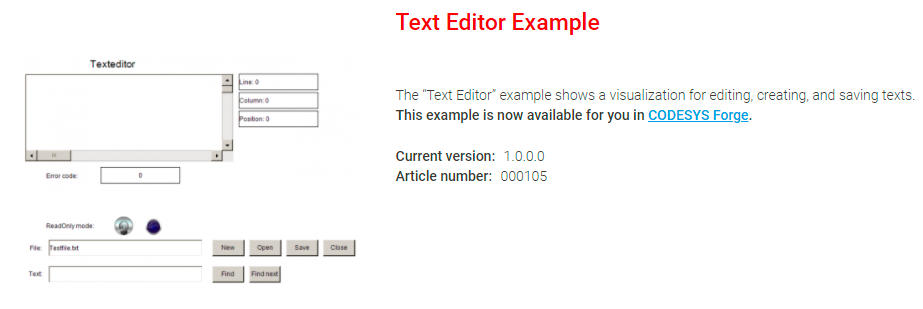

The example includes a visualization that is divided into two halves.
In the upper half, texts can be written and edited.
In the lower half, it is possible to open, close, and save text files by means of buttons.
Moreover, the "Read Only" mode can be switched on and off there, in which a lamp indicates the current state of the mode (the lamp is lit when Read Only is switched on).
A text field is located in the last line for searching for words in a text file.
