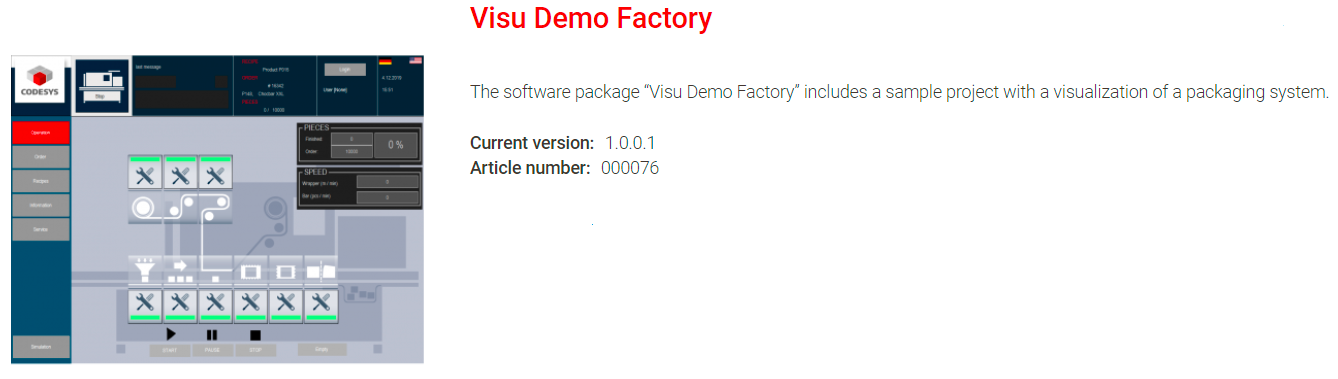

CODESYS Visu Demo Factory - Article no. 000076

Product description:

The sample project shows what a visualization can look like and which visualization elements are available. The implemented packing system consists of several modules with states that can be simulated.

In order to start the simulation of production, a user must be logged in

Login user: a

Login password: a

The production is started by pressing the start button. If an error is displayed, then a dialog is opened by clicking the red module button. Then you can reset the error.

You can use the recipes to change the settings of the machine for a specific product. This can also be changed in the respective modules on the operating side if the tool symbol is displayed.
