CYCLONE: 400W Servo Motor (SEMA-04)
CYCLONE: 400W Servo Motor (SEMA-04)

Price : $364.00

Price with Selected Options: $364.00


Availability: Usually Ships in 1 to 2 Business Days
Order #: SEMA-04


Brake Option:

Encoder:

Shaft:

Qty:
Description Specifications and Drawings


Specifications:

  • Brand: CYCLONE
  • Model: SEMA-04
  • Rated Speed: 3000 rpm
  • Maximum Speed: 5000 rpm
  • Rated Power: 400W
  • Rated Torque: 1.3 Nm
  • Peak Torque: 3.9 Nm
  • Rated Current: 2.9A
  • Peak Current: 8.7AF


Catalog

Buying Guide

SEMA Specs.

SEMA Torque Curves

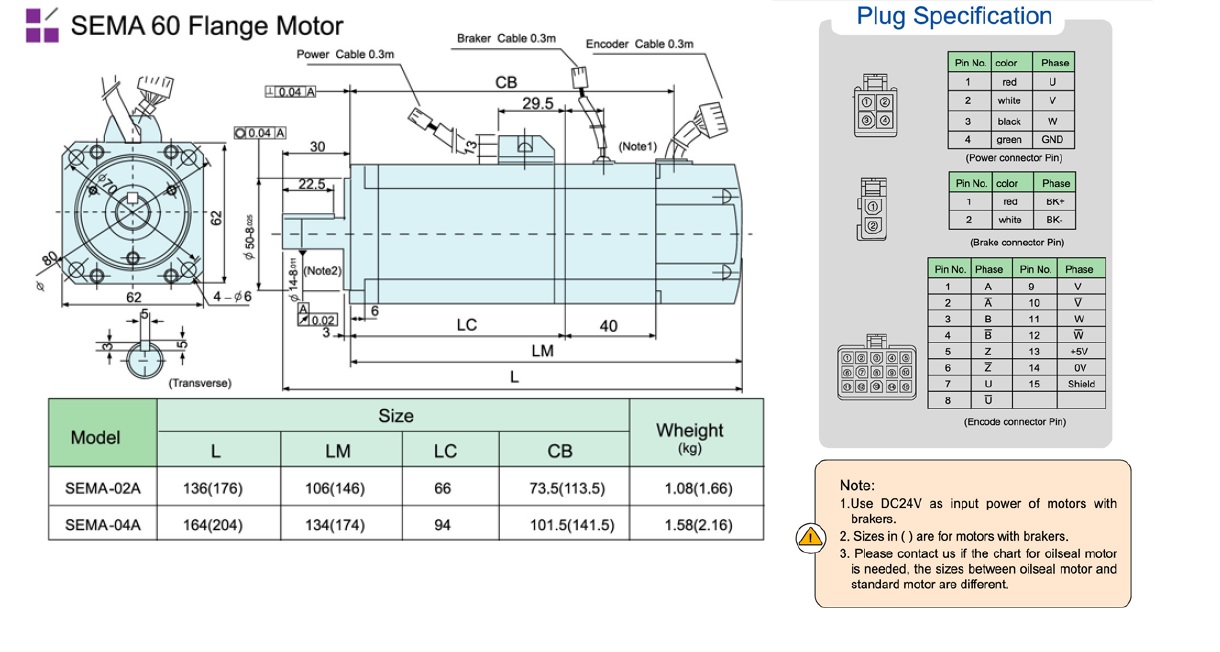

SEMA 60 CAD
