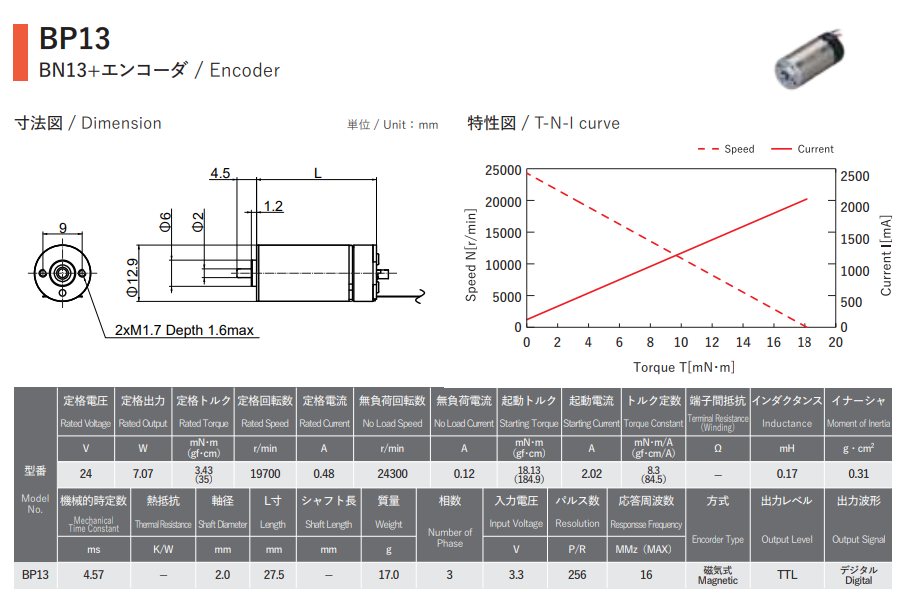

Specifications and Drawings

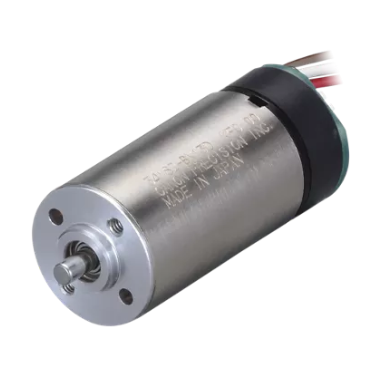

Canon: Brushless Motor BP13 (BN13+ENC)

Canon brushless motors are compact in size and provide high output power. They are inner-rotor-type with quick response and great control. Φ13 and Φ22 types are newly designed motors applying coreless coil winding technologies. Various customization options can also be incorporated to meet your needs.

BP13

Higher Starting Torque in Φ13×22mm size
Low inertia / cogging less
High-precision positioning
Wide operating range
Excellent design with vibration resistance and anti-shock
