DGW provides communication between “Ether CAT and EtherNet/IP” or “EtherCAT and the CCLink” devices. In case of using FANUC PLC(of Ethe rNet/IP) or MITSUBISHI PLC(of CC-Link) as host controller, you can implement I/O information transmission and reception with EtherCAT-based Robot Motion Controller via DGW.

DGW allows the connection between PLC and the Robot Motion Controller by a single LAN cable, which reduces costs and increases maintenance efficiency through simple wiring, space efficiency, and saves time developing communication programs by establishing a network between Ether CAT and EtherNet/IP or CC-Link.

In addition, the error status of the communication can be easily diagnosed through the external LED, and it is easy to install in the control box by adopting the DIN rail mounting method.

Features:

- Supports CC-Link (Slave) from/to EtherCAT(Slave) Gateway function

- Supports EtherNet/IP(Scanner) from/to EtherCAT(Slave) Gateway function

- Robot Motion Controller can be connected to upper PLC

- PLC examples: FANUC, MITSUBISHI, etc.

- Minimize cable connections by sending and receiving I/O data between two networks with LAN cable

- Reduced wiring, work and space saving

- Contribution to shortening development period and cost reduction

- Error diagnosis function by LED

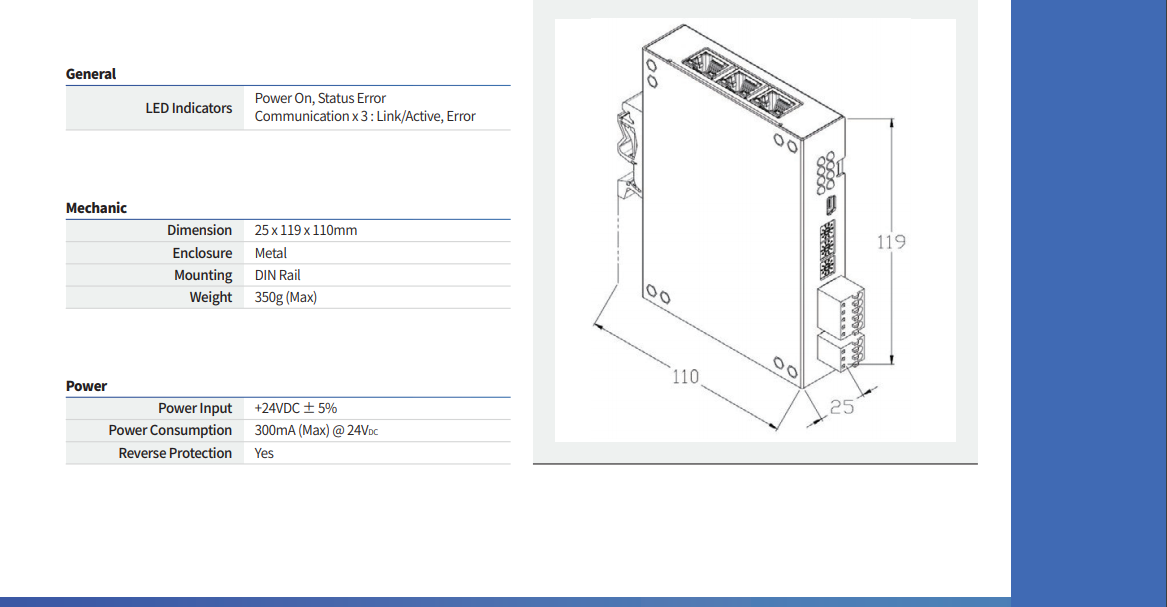

- DIN Rail type for easy installation
