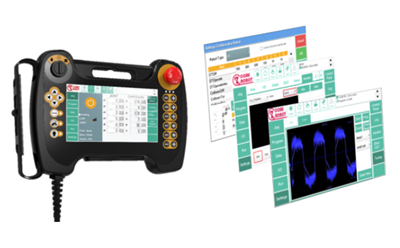

Daincube: Robot Motion Controller (DTP7H-coreCon)
Daincube: Motion Controller (DTP7H-coreCon)

Alternate View


833-9MOTION inquiry@e-motionsupply.com.
Price : $3,200.00


Availability: Lead Time is 2-4 weeks.
Order #: DTP7H-CORECON
Qty:

Description Specifications and Drawings

Daincube: Robot Motion Controller (DTP7H-coreCon)

Optimized for industrial robots

DTP7H-coreCon is an integrated robot motion controller with teach pendant. It is equipped with high performance ARM Cortex-A9 processor and real-time operating system and integrated motion control software “coreCon”. It supports various EtherCAT servo motor drivers and I/O can be controlled in Real-Time.

"coreCon”, which is a robot motion control S/W, can easily use the various robots(such as MultiAxis, Delta, SCARA, Cartesian and Cobot etc.) and the EtherCAT slave devices with simple setup and operation, and the similar robot language supported by ABB, FANUC, YASKAWA etc..

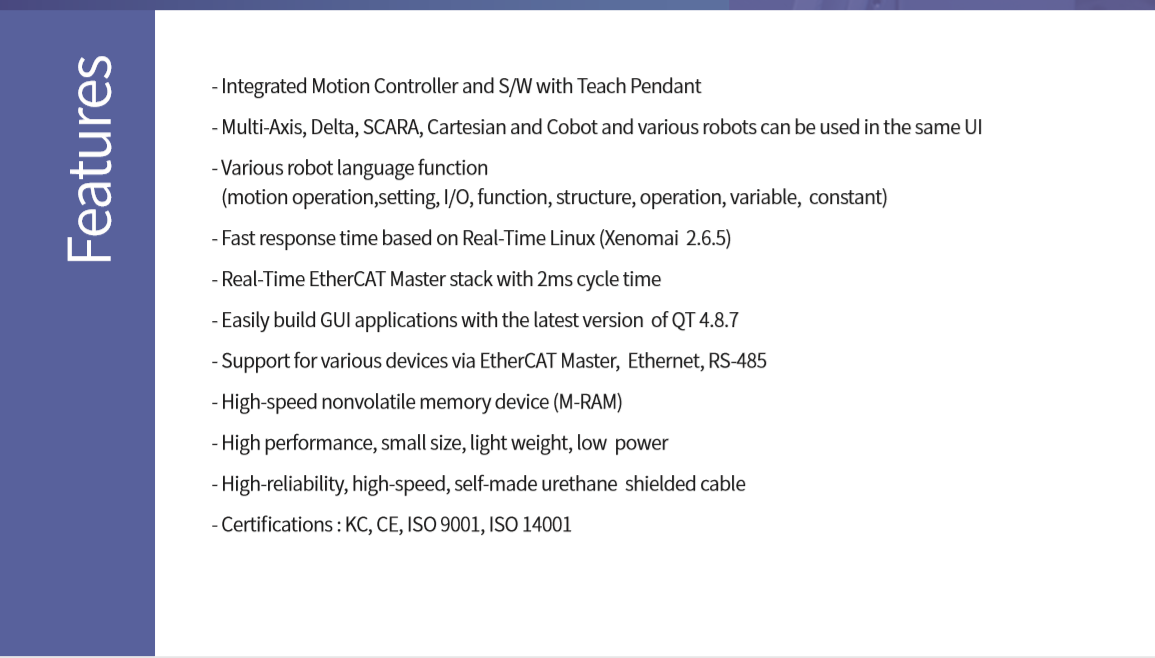

Features:

· Integrated Motion Controller and S/W with Teach Pendant

· Multi-Axis, Delta, SCARA, Cartesian and Cobot and various robots can be used in the same UI

· Various robot language function
(motion operation,setting, I/O, function, structure, operation, variable, constant)

· Fast response time based on Real-Time Linux (Xenomai 2.6.5)

· Real-Time EtherCAT Master stack with 2ms cycle time

· Easily build GUI applications with the latest version of QT 4.8.7

· Support for various devices via EtherCAT Master, Ethernet, RS-485

· High-speed nonvolatile memory device (M-RAM)

· High performance, small size, light weight, low power

· High-reliability, high-speed, self-made urethane shielded cable

· Certifications: KC, CE, ISO 9001, ISO 14001

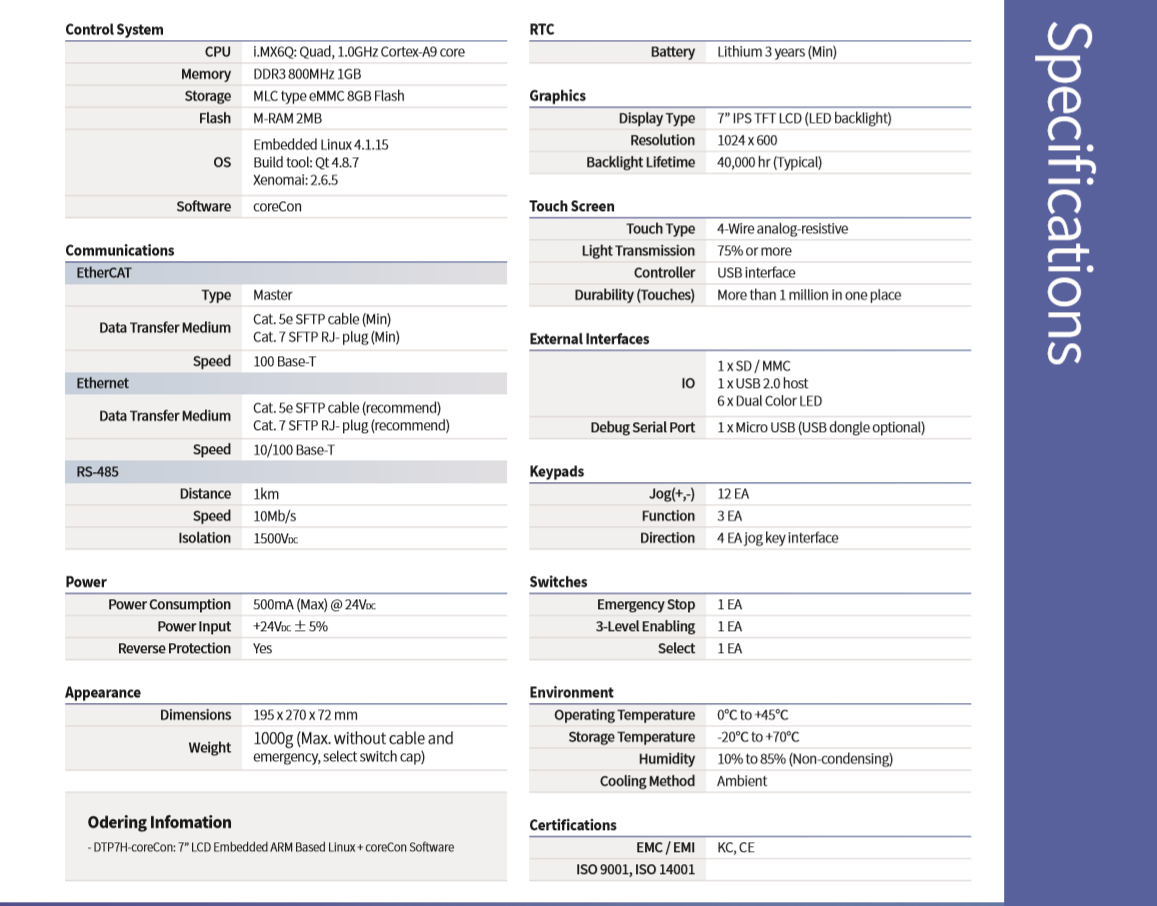

Technical info

  • ARM Cortex-A9 – 1GHz
  • DDR3 1GB
  • USB, SD Card
  • Communicates with controller : RS-232, RS-485, Ethernet, EtherCAT

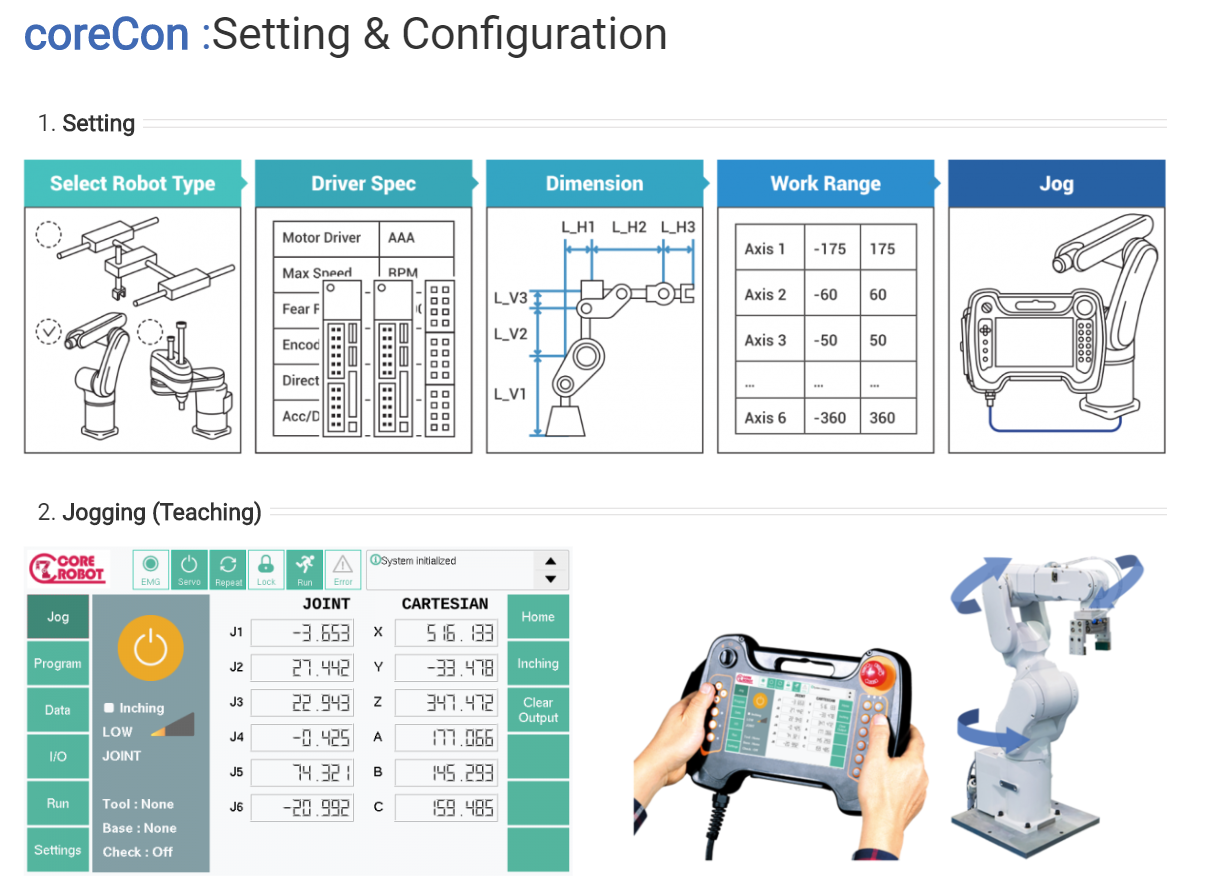

coreCon software Technical info

  • EtherCAT Master interface
  • Real-Time OS (Xenomai)
  • Robot methodology (Cartesian, SCARA, Delta, Vertical multi-axis, Take-out, Gantry and WTR, etc.)
  • Operating mode (Teach / Repeat / Manual)
  • Function of system logging & EtherCAT monitoring
  • Supporting rich robot languages (motion, I/O, function, structure, calculation, variable number, invariable number)



[Robot Motion Controller] 6-Axis vertical articulated robot with DTP7-coreCon
[Robot Motion Controller] Custom robot with DTP7-coreCon
[Robot Motion Controller] 6-axis articulated robot with DTP7-coreCon
[Robot Motion Controller] 6-axis articulated robot with DTP7-coreCon
