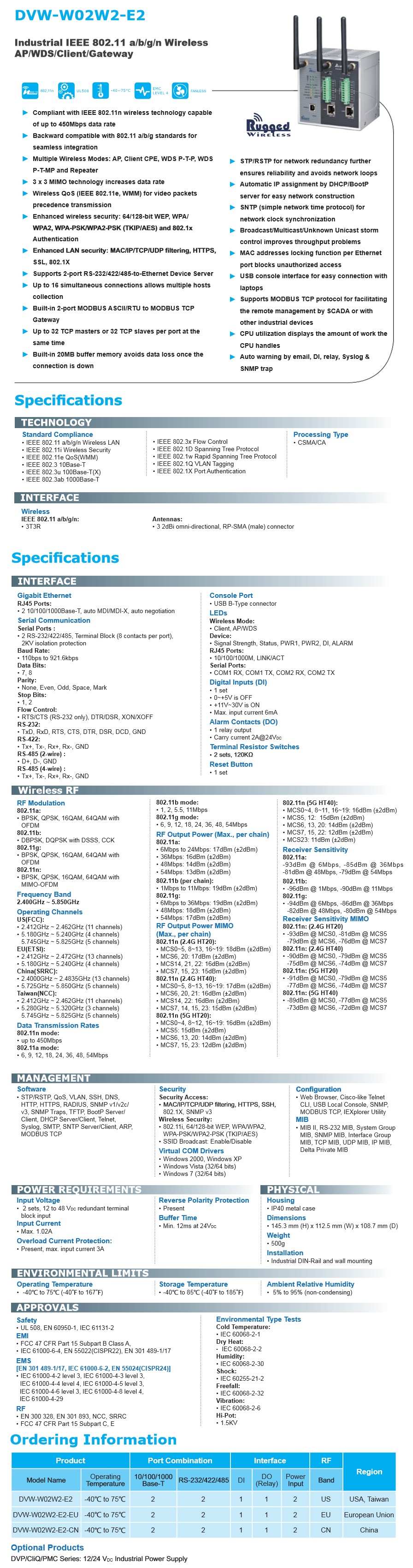

Delta: Industrial Ethernet Solution (DVW-W02W2-E2 Series) Delta has just launched the Delta Industrial Ethernet Total Solution, which provides Ethernet products with enhanced hardware design, a user-friendly software interface, packet protection and compatibility with multiple industrial communication standards. With the rise of industrial automation technology and intelligent municipal engineering systems, the Ethernet, with its advantages of high speed, high stability and high compatibility, has become the most popular and widely used communication protocol. Based on Delta’s accumulated customer service experience and industrial know-how, the Delta Industrial Ethernet Total Solution helps customers construct an industrial Ethernet system that will satisfy their requirements in a wide range of applications. All of Delta’s Ethernet products are certified to UL, CE and FCC standards. Wireless AP/WDS/Client/Gateway: DVW-W02W2-E2 Series Adopting MIMO technology, and support multiple wireless operating mode. 3-in-1 serial ports, enhanced wireless security, WMM and a wide-operating temperature from -40℃ to 75℃ help constructing a reliable industrial wireless network. Compliant with IEEE 802.11n wireless technology capable of up to 450Mbps data rate Backward compatible with 802.11 a/b/g standard for seamless integration Multiple Wireless Modes: AP, Client CPE, WDS P-T-P, WDS P-T-MP, Repeater 3×3 MIMO technology increases data rate Wireless QoS(IEEE 802.11e, WMM) for video packets precedence transmission Enhanced wireless security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES) and 802.1X Authentication Supports 2-port RS-232/422/485-to-Ethernet Device Server Up to 16 simultaneous connections allows multiple hosts collection Built-in 2-port MODBUS ASCII/RTU to MODBUS TCP Gateway Up to 32 TCP masters or 32 TCP slaves per port at the same time Built-in 20MB buffer memory to avoids data loss once the connection is down SNTP (simple network time protocol) for network clock synchronization Broadcast/Multicast/Unknown Unicast storm control improves throughput problems USB console interface for easy connection with laptops Supports MODBUS TCP protocol for facilitating the remote management by SCADA or with other industrial devices CPU utilization displays the amount of works the CPU handles Auto warning by email, DI, Relay, Syslog & SNMP trap
Technology (Standard Compliance) IEEE 802.11 a/b/g/n Wireless LAN IEEE 802.11i Wireless Security IEEE 802.11e QoS(WMM) IEEE 802.3 10Base-T IEEE 802.3u 100Base-T(X) IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN Tagging IEEE 802.1X Port Authentication
Antennas: 3 2dBi omni-directional, RP-SMA(male) connector Serial Ports : 2 RS-232/422/485, Terminal Block(8 contacts per port), 2KV isolation protection Baud Rate: 110bps to 921.6kbps Data Bits: 7, 8 Parity: None, Even, Odd, Space, Mark Stop Bits: 1, 2 Flow Control: RTS/CTS ( RS-232 only ), DTR/DSR, XON/XOFF RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422: Tx+, Tx-, Rx+, Rx-, GND RS-485( 2-wire ) : D+, D-, GND RS-485( 4-wire ) : Tx+, Tx-, Rx+, Rx-, GND
Console Port : USB B-Type connector 1 set 0~+5V is OFF +11V~30V is ON Max. input current 6mA
1 relay output Carry current 5 A@24VDC
Terminal Resistor Switches: 2 sets, 120KΩ 802.11a BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11b DBPSK, DQPSK with DSSS, CCK 802.11g BPSK, QPSK, 16QAM, 64QAM with OFDM 802.11n BPSK, QPSK, 16QAM, 64QAM with MIMO-OFDM
Frequency Band: 2.400GHz ~ 5.850GHz STP/RSTP, QoS, VLAN, SSH, DNS, HTTP, HTTPS, RADIUS, TACACS+, SNMP v1/v2c/v3, SNMP Traps, TFTP, BootP Server/Client, DHCP Server/Client, Telnet, Syslog, SMTP, SNTP Server/Client, ARP, MODBUS TCP Security Security Access: MAC/IP/TCP/UDP filtering, HTTPS, SSH, 802.1X, TACACS+, SNMP v3 Wireless Security: 802. 11i, 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES) SSID Broadcast: Enable/Disable
Virtual COM Drivers: Windows 2000, Windows XP, Windows Vista (32/64 bits), Windows 7 (32/64 bits) Configuration: Web Browser, Cisco-like Telnet CLI, USB Local Console SNMP, MODBUS TCP, IEXplorer Utility MIB: MIB II, RS-232 MIB, System Group MIB, SNMP MIB, Interface Group MIB, TCP MIB, UDP MIB, IP MIB, Delta Private MIB Input Voltage: 2 sets, 12 to 48VDC redundant terminal block input Input Current: Max. 1.02A Overload Current Protection: Present, Max. input current 3A Reverse Polarity Protection: Present Buffer Time: Min. 12ms at 24VDC
Housing: IP40 aluminum metal case Dimensions: 145.3 mm(H) × 112.5 mm(W) × 108.7 mm (D) Weight: 500g Installation: Industrial DIN-Rail and wall mounting
Operating Temperature: -40℃ to 75℃(-40℉ to 167℉) Storage Temperature: -40℃ to 85℃(-40℉ to 185℉) Ambient Relative Humidity: 5% to 95%(non-condensing)
Safety : UL 508, EN 60950-1, IEC 61131-2, BSMI EMI: FCC 47 CFR Part 15 Subpart B Class A, IEC 61000-6-4, EN 55022, EN 301 489-1/17 EMS: EN 301 489-1/17, EN 55024, IEC 61000-6-2 RF: FCC 47 CFR Part 15 Subpart C & E, EN 300 328, EN 301 893, NCC, SRRC
Model No.: DVW-W02W2-E2, DVW-W02W2-E2-CN, DVW-W02W2-E2-EU
|
|
|
 |
|
 |
|
