Delta: LYTE DIN Rail Power Supply DRL-48V120W1AA

Home > Accessories > Power Supply > Delta PSU Division >

Price : $96.50

Availability: 2-4 business days
Order #: DRL-48V120W1AA

Qty:

Description

Ordering Information

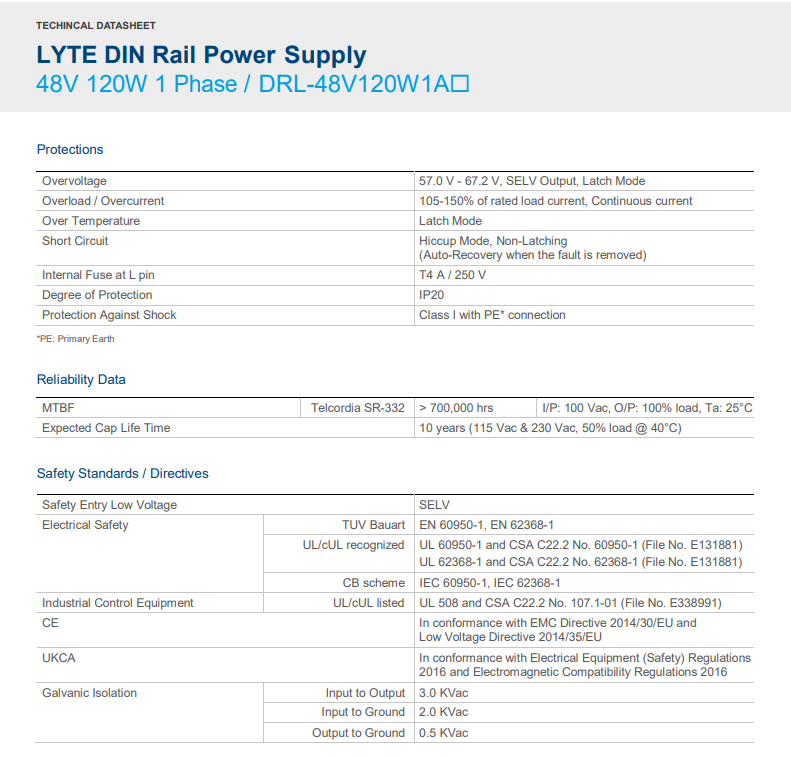

Specifications and Drawings

Delta: LYTE DIN Rail Power Supply DRL-48V120W1AA

48V 2.5A 120W DRL-48V120W1AA

Delta’s LYTE DIN rail power supply series is designed for cost sensitive users who need to fulfill essential features needed for many

general industrial applications, without compromising on quality and reliability. The convection-cooled LYTE series will operate

between -20°C to +70°C, with full rated power available from -10°C to +50°C at 230 Vac. The overcurrent protection is designed to

operate in constant current mode, which makes the LYTE series suitable for inductive and capacitive load applications. The product is

certified according to safety standards IEC/EN/UL 60950-1 & IEC/EN/UL 62368-1 for Information Technology Equipment (ITE) and UL

508 for Industrial Control Equipment (ICE). Electromagnetic radiated and conducted emissions are compliant to EN 55032, Class B; and,

the product is RoHS compliant for environmental protection.

Highlights & Features

• Universal AC input voltage

• Built-in constant current circuit for reactive loads

• Up to 90.0% efficiency

• Full power from -10°C to +50°C operation at 230 Vac

@ 5,000 meters or 16,400 feet altitude

• Built-in DC OK relay contact option available

• Compliance to SEMI F47 @ 200 Vac

• Conformal coating on PCBAs to protect against common

dust and chemical pollutants

Support Links
LYTE DIN Rail Power Supply: DRL-48V120W1AA
