Delta: PLC Compact Modular Mid-range (AS Series)

Programmable logic controller (PLC) is a control system using electronic operations. Its easy storing procedures, handy extending principles, functions of sequential/position control, timed counting and input/output control are widely applied to the field of industrial automation control.

Flexible, Smart, Friendly - The Best Choice for a Controller of Automated Equipment AS Series

The AS Series Compact Modular Mid-range PLC is a high-performance multi-purpose controller designed for all kinds of automated equipment. It features Delta's self-developed 32-bit SoC CPUs for enhanced execution speed (40k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and 6 axes via pulse control (200kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines. The AS Series Controller is equipped with CANopen and EtherNet/IP network communication for high-speed data transmission. The professional yet simple editing software ISPSoft delivers quick hardware and network configuration with built-in function blocks for different industries. It also provides multi-layer password protection for enhanced system security. The AS Series adopts a rackless design and patented DIN rail clips for fast vertical module installation. The simple shape and dark gray exterior of the AS series help resist stains and dirt in harsh industrial environments.

Features & Benefits.

• New 32-bit SoC (System on Chip) CPU to enhance execution speed（40 k steps / ms）
• Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse control
• Robust non-backplane design and patented DIN rail clips for vertical module installation and replacement
• ISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning

Specifications

• New 32-bit SoC (System on Chip) CPU
• Max. I/O: 1,024

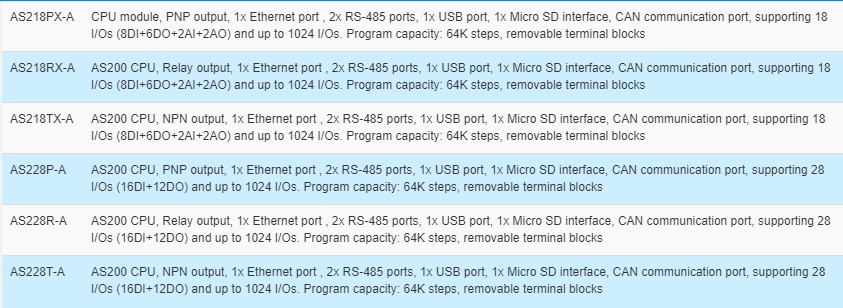

• Program capacity: AS300 series 128k steps, AS200 series 64k steps
• Data registers: 60k words
• Extension modules: max. 32 (analog modules: max.16 / communication modules: max. 4)

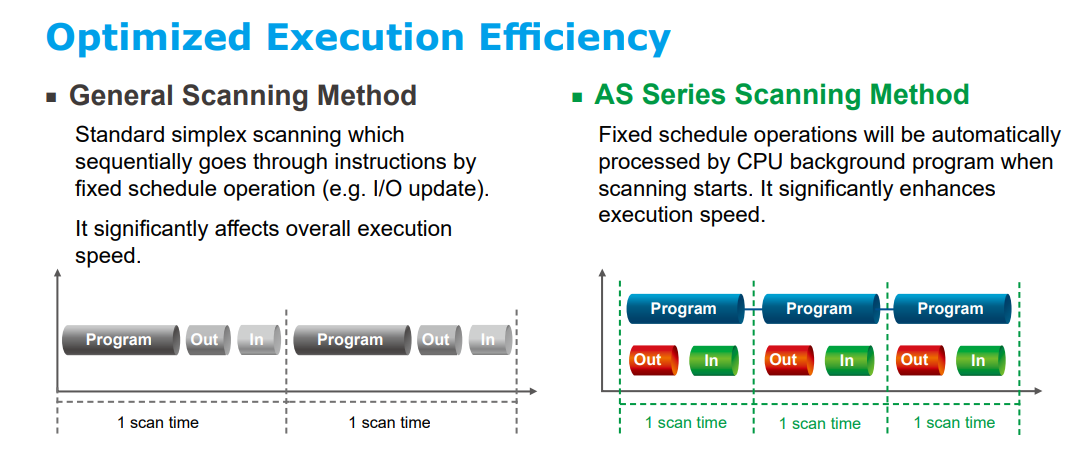

• Execution speed: up to 40 k steps / ms
• - Basic instruction (LD): 25 ns
• - Application instruction (MOV): 0.15 μs
• Abundant selection of DIO modules, AIO modules, temperature modules, load cell module and function cards.

Applications:

Automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines
