Delta: Timers / Counters / Tachometers (CTA Series)
Delta: Timers / Counters / Tachometers (CTA Series)


Price : $100.80

Price with Selected Options: $100.80


Order #: CTA


Options:

Qty:

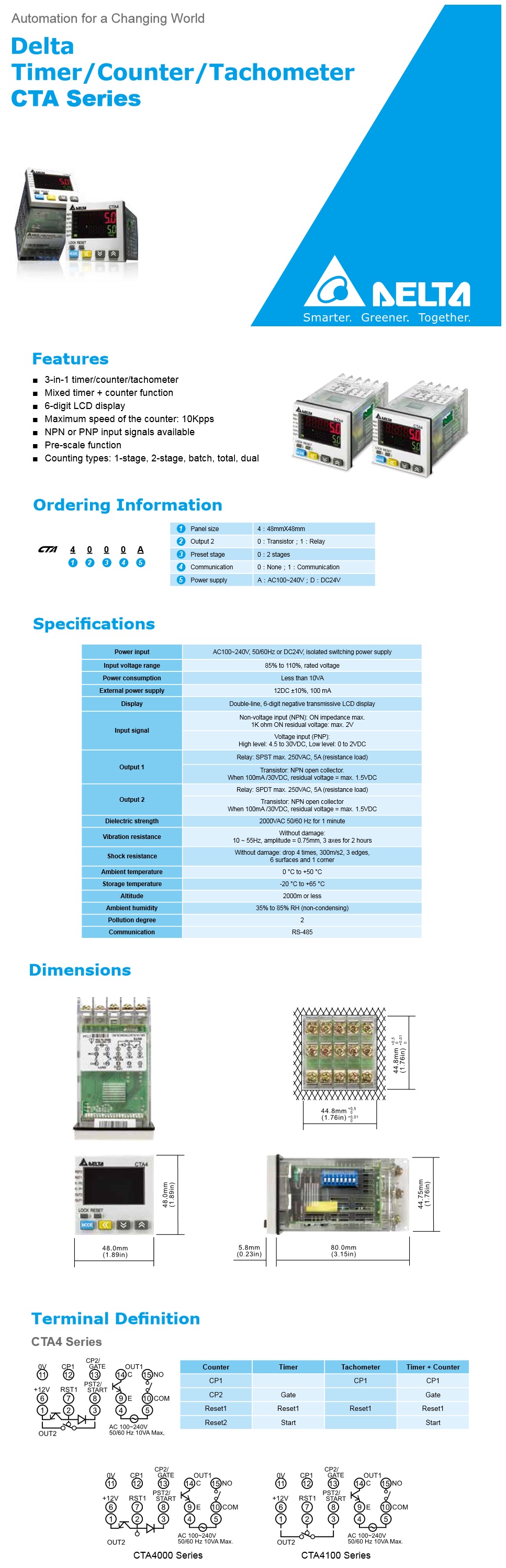

Description Ordering Information Specifications and Drawings


Delta: Timers / Counters / Tachometers (CTA Series)

CTA Timer/Counter/Tachometer is able to receive external input signals and calculate the times of events, frequency and driving speed. CTA can be applied to batch counting, total counting, length measurement, position control, accurate timing, rotation speed and so on.

CTA Timer/Counter/Tachometer features easy and handy parameter settings and tuning and are certified by international standards CE and UL.

Features:

CTA Timer/Counter/Tachometer features easy and handy parameter settings and tuning and are certified by international standards CE and UL.

Specifications:

  • Panel size: 48mm x 48mm

  • Power input: 100~240VAC, 50/60Hz or DC24V

  • Range of input voltage: 85%~110%, rated voltage or DC21.6V~26.4V

  • Power consumption: less than 10VA or 5W

  • External power supply: 12VDC ± 10%; 100mA

  • Display: Double-line 6-digit LCD display

  • NPN input: ON impedance 1K ohm max. ON residual voltage: 2V max.

  • PNP input: high level: 4.5~30VDC; low level: 0~2VDC

  • Dielectric strength: 2,000VAC; 50/60Hz for 1 minute

Applications:

  • Label printers

  • Cut-to-length machines

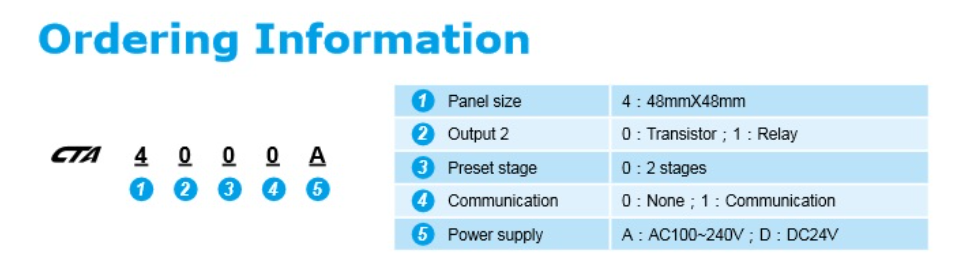

Options:
CTA4000A (output 2: NPN / no RS-485, AC 100-240V power supply),
CTA4100A (output 2: relay / no RS-485, AC 100-240V power supply),
CTA4101D (output 2: relay / RS-485, DC 24V power supply)
