Delta: Advanced Industrial Touch Screen Panel HMI - Human Machine Interfaces
(DOP-100 Series)

Touchscreen, 4.3", Color, High Resolution, Enhanced Ethernet HMI

A human machine interface (HMI) is a platform which permits interaction between users and automation equipment. Delta’s HMI products provide various communication ports for fast communication and convenient control of a diverse range of machines, systems and facilities. The color touchscreen enables intuitive parameter entry and a variety of ways to display variable data, including trend graphs and alarm elements. The high resolution LCD display visualizes operating, monitoring and efficient control in real time. In addition, the user-friendly editing software guides users in quickly creating easy-to-navigate visual icons and easily designing intuitive monitoring screens for applications, while making adjustments, scheduling, and programming operational sequences that enhance flexibility and save development time. This achieves rapid system development that simplifies wiring and installation, saves operating expenses, and makes systems more efficient, eliminating time-consuming adjustment and additional maintenance costs.

DOP-100 Series

The DOP Series Human Machine Interface (HMI) provides various touch screens with multiple dimensions and colors. It also offers fast and convenient control functions for industrial automation machines. In addition, Delta Windows-based and user-friendly DOPSoft Screen Editor and Programming Software configures the whole DOP Series. With DOPSoft, users can quickly edit images and graphs and easily set suitable communication protocol. More applications can be created, edited, downloaded and uploaded.

Specifications:

• 4.3”(480*272) 65,536 Colors TFT
• Cortex-A8 800MHz CPU
• 512 MB RAM
• 256 MB ROM
• Built-in Ethernet
• 1 COM port / 1 extension COM port
• Multilingual input
• USB Host
• USB Client
• CE / UL certified
• Operation Temperature: 0℃ ~ 50℃
• Storage Temperature: -20℃ ~ 60℃
• Pressing times: >10,000K times

Applications:

• Meets Customer Needs.
• Satisfies a Variety of Applications.
• Not just Delta industrial automation products, but more than 30 brands, and over 100 models of PLCs or controllers can be connected for effortless communication and versatile operation.

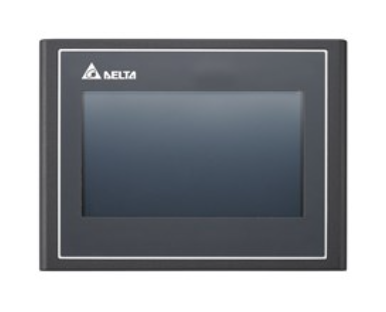

The Model DOP-103WQ is the replacement of the obsolete model DOP-B03E211.
