Digi-Pas:DWL4200XY 2-Axis Compact Inclination Sensor Module
Digi-Pas® DWL-4200XY and DWL-4500XY are the most Compact & Cost Effective models yet of our iconic 2-Axis Inclination Sensor Modules that are specifically designed to be integrated into machine/equipment/structure with less space needed. Come with the capability of real-time simultaneous monitoring of plane levelling position, 2D tilt angles, vibration measurement, and data logging function when used with the ‘Plug and Play’ PC Sync Software. These compact intelligent modules are embedded with advanced MEMS sensor technology, developed for application engineers to ensure precision structural stability or angular position on any desired object. These smart & compact inclination sensor modules are tough, durable, IP65 waterproof, have shock resistance, small footprint, and are enabled to communicate with external peripheral devices through various protocols such as USB, RS232, RS485, & wireless Bluetooth.
PLANAR & WIDE ANGLE RANGE MEASUREMENT
Precision levelling and tilt angles measurement essentially involve simultaneous 2-dimensional planes rather than single-axis. Digi-Pas 2-axis intelligent tilt sensor modules having high precision and wide measurement range are capable of providing real-time levelling & vibration readings that empower application engineers to continuously monitor machine/equipment/structure angular positional status precisely and speedily.
These small footprint MEMS driven 2-axis sensor modules effectively eliminate the limitations of using multiple single-axis sensors or bulky pendulum based sensors to achieve 2D levelling and planar angular measurements
PROGRAMMABLE & USER-DEFINABLE SYSTEM
Digi-Pas 2-axis tilt sensor module system is designed to be integrated into precision machine/equipment/structure enabling application engineers to instantly access angular positional status without the need for tedious and time-consuming programming. The angular measurement system enables user-defined settings to activate any external connected peripheral devices at ease.

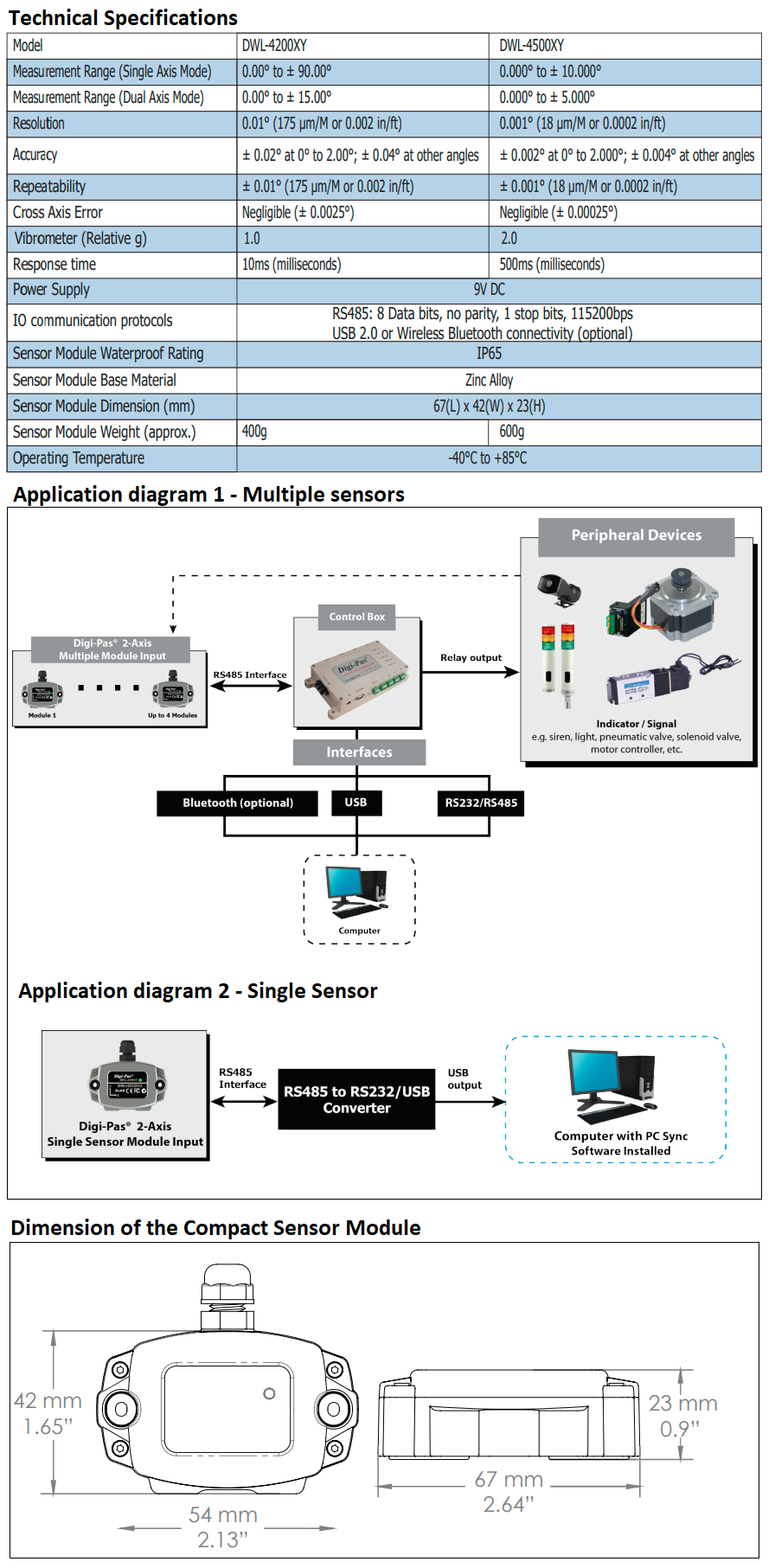

TECHNICAL SPECIFICATIONS
Measuring range from 0° ~ ±90° (Single-Axis); 0° ~ ±15° (Dual-Axis)
Resolution of 0.01° (0.2mm/M) (0.002 in/feet)
Accuracy: ± 0.02°(0.4mm/M) at 0° to ±2.00°; ± 0.04° (0.8mm/M) at other angles
Repeatability: 0.01° (0.2mm/M or 0.002in/ft)
Vibration (Relative g): 1
Respond time: 100ms
Power Supply: 9-30V DC
IO Communication: RS485
Material: Zinc Alloy
Waterproof Rating: IP65
Operating Temperature: -40°C ~ +85°C
Size: 67mm (L) X 42mm (W) X 23mm (H)
