Digi-Pas:DWL9000XY (Bluetooth + PC Sync PRO Software) 2-Axis Ultra Precision Inclinometer 2-09001-99

There are 2 models in this product range with different resolution and measuring range. DWL9000XY is a 2-Axis ultra precision inclinometer with built-in Vibrometer, having resolution of 0.2 arcsec. or 1 µm/M and wide measuring range of 7,200 arcsec. or 35mm/M and DWL8500XY is another 2-Axis ultra precision inclinometer with built-in Vibrometer, having resolution of 1 arcsec. or 5 µm/M and wider measuring range of 14,400 arcsec. or 70mm/M.

Each model is specifically designed to REPLACE TWO UNITS of conventional SINGLE-AXIS levels/Inclinometers which are often BULKY in size and FRAGILE caused by its pendulum moving sensor parts. Digi-Pas MEMS technology 2-axis instrument has no moving parts and thus very TOUGH and RUGGED yet SMALLER in size and is durable when subjected to common "bumps and knocks" during daily usage and transportation. Digi-Pas ultra precision 2-axis inclinometers are developed for precision leveling, tilted-plane angles measurements, two dimentional surface-plane profiling & precision alignment tasks, and capable of real-time wireless Bluetooth/USB remote measuring & data logging. The accuracy performance certification of this instrument is verified by 3rd parties accredited calibration & test bodies in US, Japan & National Metrology Center of Singapore in accordance with ISO/IEC 17025:2005 and/or ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN under ILAC & A2LA.

This instrument is exceptionally engineered to greatly simplifying the task of engineering professionals & scientists in installation, setting up, maintenance and characterization of very large-sized CNC machines, plane-surface flatness profiling, precision test/measuring instruments & 2D alignment-sensitive equipment.

SPEED, PRECISION & EFFECTIVENESS

Precision levelling, angle measurement/alignment and surface flatness profiling tasks essentially involve 2-dimensional planes rather than single-axis. Thus, 2-axis simultaneous display of surface plane angles readings are required to effectively guide engineers in adjusting precision object/machine to a targeted position accurately and speedily.

Digi-Pas pioneered world's-first 2-axis simultaneous angles display instrument (U.S. patented) embedded with vibrometer which offers superior performance. It empowers engineers in eradicating constraints associated with using traditional single-axis 'bubble' or digital levels that require them to conduct those time-consuming tasks 'one axis at a time' with tedious trial-and-error iterations.

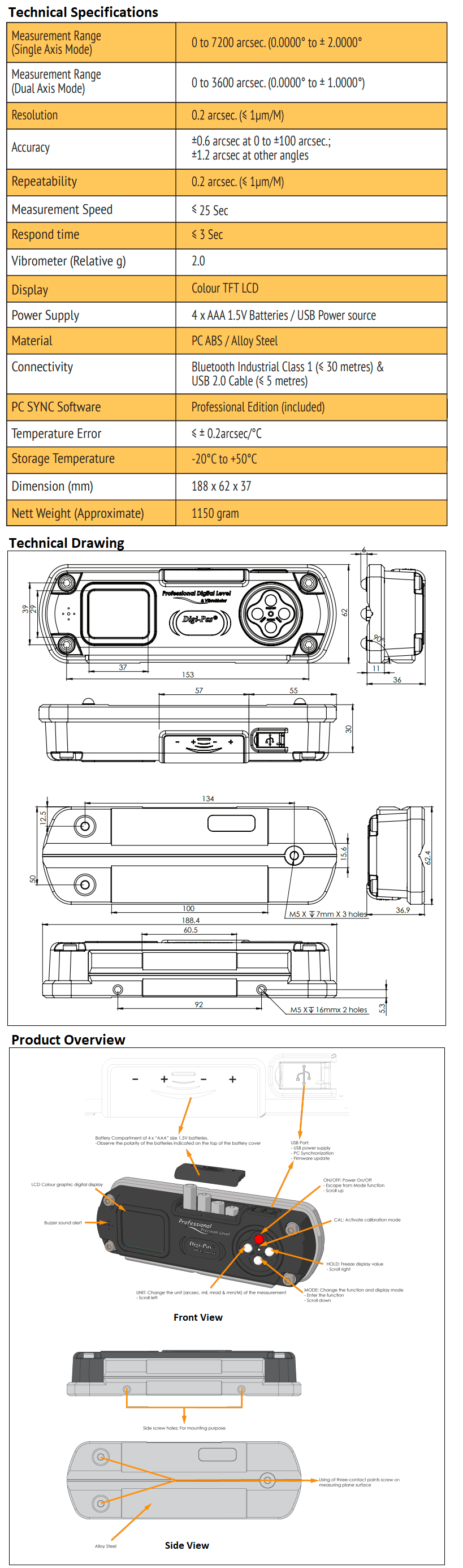

Technical Details - DWL9000XY
Measuring range from 0.0 to 7200 arcsec. (Single Axis); 0.0 to 3600 arcsec. (Dual Axis)
Resolution of 0.2 arcsec. (≤ 1μm/M)
Accuracy ±0.6 arcsec at 0 to ±100 arcsec.; ±1.2 arcsec at other angles
3D surface geometry graph using PC-Sync Software for high accuracy surface flatness profile measurement
Digital colour graphic display of dual angles
Vibrometer display real time low-frequency (2 to 75Hz) vibration graph
Angularmeter display real-time 2-Axis angle graph
Wireless Bluetooth Industrial Class 1 (>30 Meters)
Professional PC Sync Software with wireless Bluetooth or USB-cable connection to device for remote acquisition and data logging,
USB external power source
Operating temperature at 50°F to 104°F or +10°C to +40°C
3-points contact base for most stable surface-to-surface contact to prevent “rocking”

General Specification
