Digi-Pas: DWL5800XY 2-Axis Inclination Sensor Module + PC Sync PRO Software 2-05801-99
Digi-Pas® DWL-5800XY are 2-Axis Inclination Sensor Modules that specially designed to be integrated into machine/equipment/structure with capability of real-time simultaneous monitoring of plane levelling position, 2D tilt angles, vibration measurement and data logging function when used with the ‘Plug and Play’ PC Sync Software. These intelligent modules are embedded with advanced MEMS sensor technology, developed for application engineers to ensure precision structural stability or angular position on any desired object. These smart inclination sensor modules are tough, durable, IP65 waterproof , shock resistance, small footprint and enabled to communicate with external peripheral devices through various protocols such as USB 2.0, RS232, RS485 & wireless Bluetooth

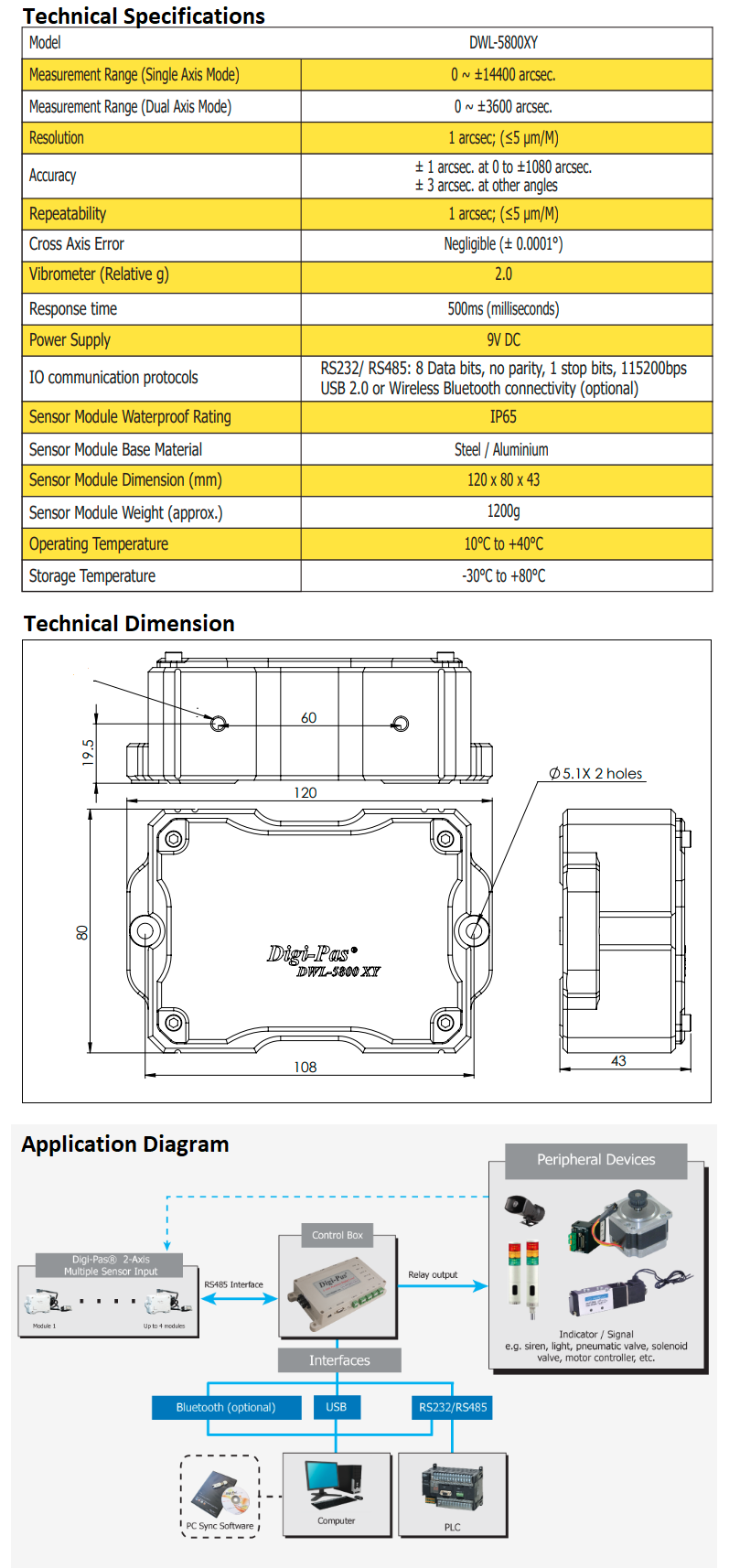

Technical Details
Measuring range from 0 ~ ±14400arcsec (Single-Axis); 0 ~ ±3600 arcsec (Dual-Axis)
Resolution of 1 arcsec; (≤5 µm/M)
Accuracy: ± 1 arcsec; at 0 to ±1080 arcsec.; 3 arcsec at other angles
Multiple I/O communication protocols i.e. USB, RS232, RS485 & (optional) Bluetooth connectivity
IP65 certified - waterproof protection
Shock/Impact Test survives over 3,000g to 6,000g
Built-in vibrometer for real time low-frequency (2 to 75Hz) vibration measurement
User-friendly PC-based programmable software
General Specification
