• Bright, widescreen display with touch screen.

• 800 x 480 pixel WVGA, 7"(177mm) diagonal, LED lighted, TFT color LCD touch screen display.

• 10/100 Base-T Ethernet.

• Two serial ports: EIA-232 and EIA-232/422/485.

• NEMA-4X and IP66 scaling for harsh environments.

• Qlarity 2 object-based programming language.

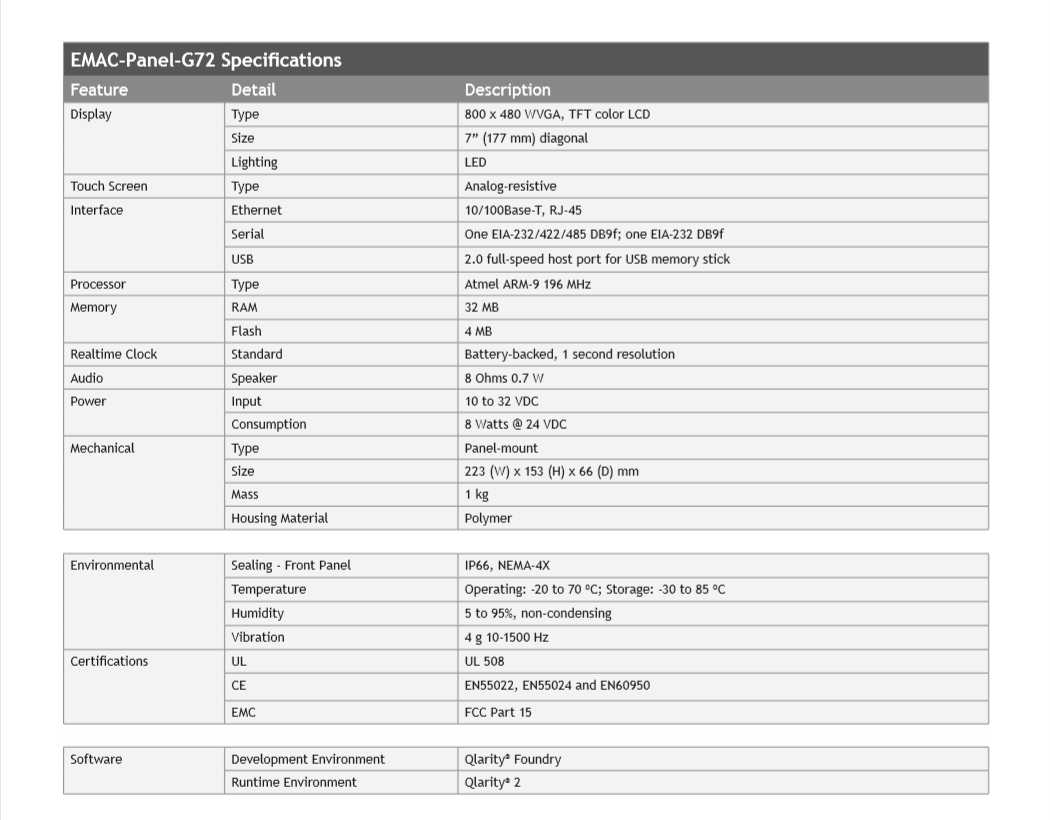

Specifications

• Input: 10 - 32 VDC
• Consumption: 8 Watts @ 24 VDC
• Standard real time clock, battery backed, 1 second resolution.
• SD Ram: 32 MB
• Flash: 4 MB
• Audio speaker: 8 Ohms 0.7 W

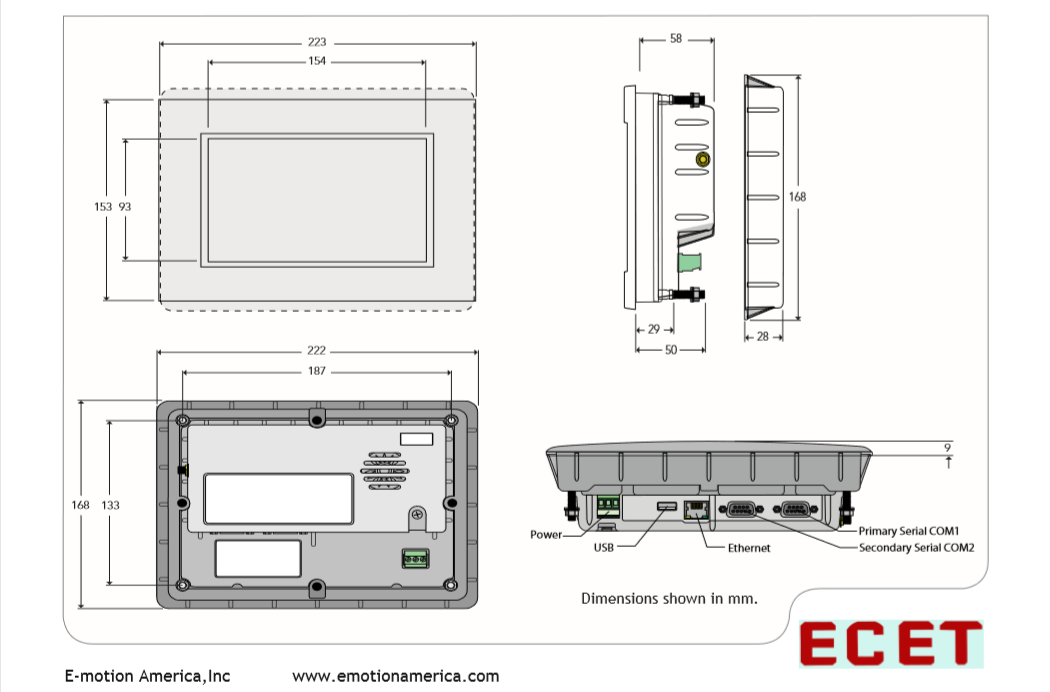

• Size: 223(W) x 153 (H) x 66 (D) mm
• IP66 Sealing for front panel.
