ECET: Zebra Series RS485 integrated Stepping Motor With 4096 Lines Incremental Encoder ZSM-17

Alternate View

Price with Selected Options: $0.00

Availability: In stock soon. Order now to get in line. First come first served.
Order #: ZSM-XX-X-00-00-485-00

Model Number/Code*:

Qty:

Description

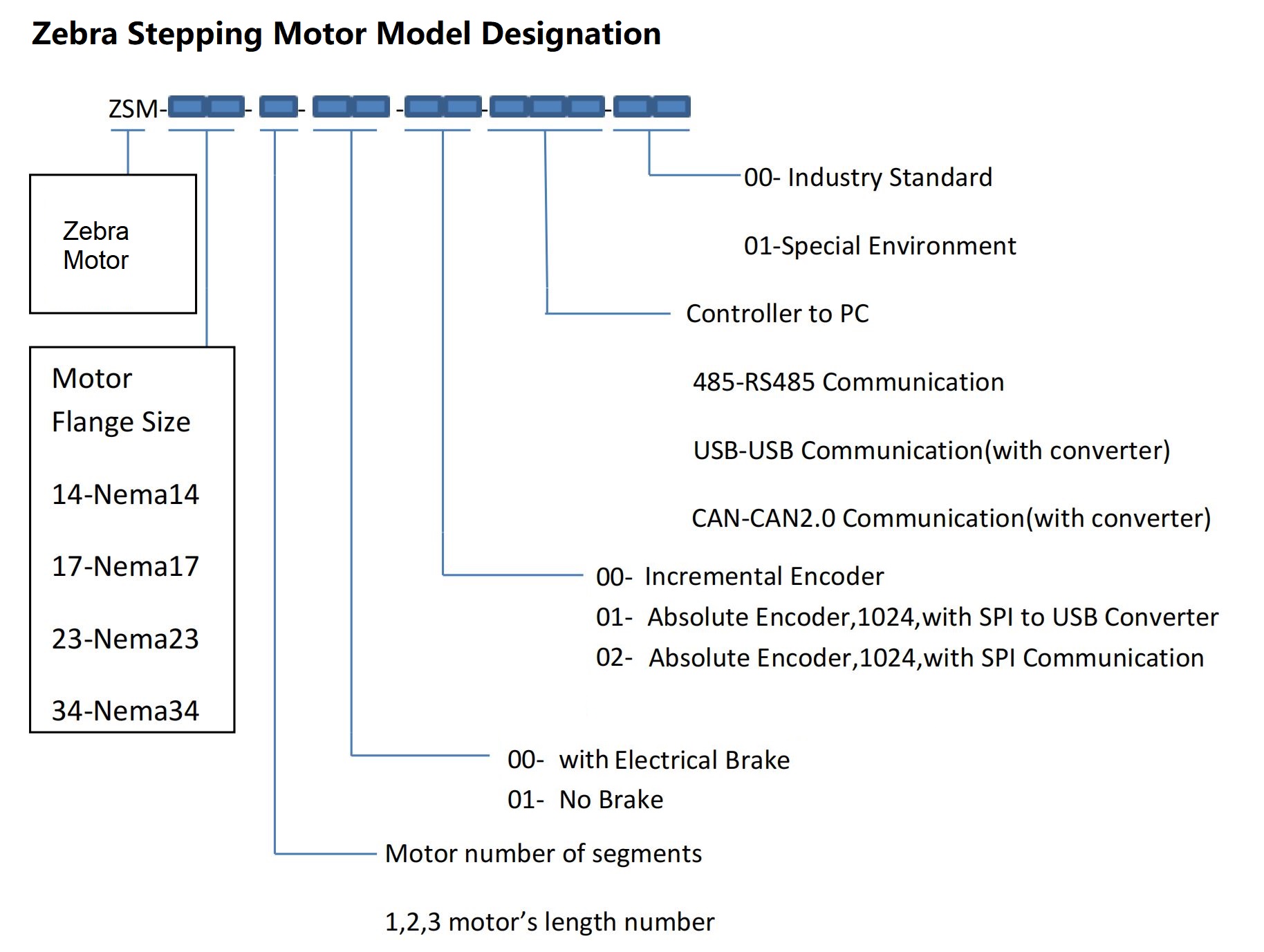

Ordering Information

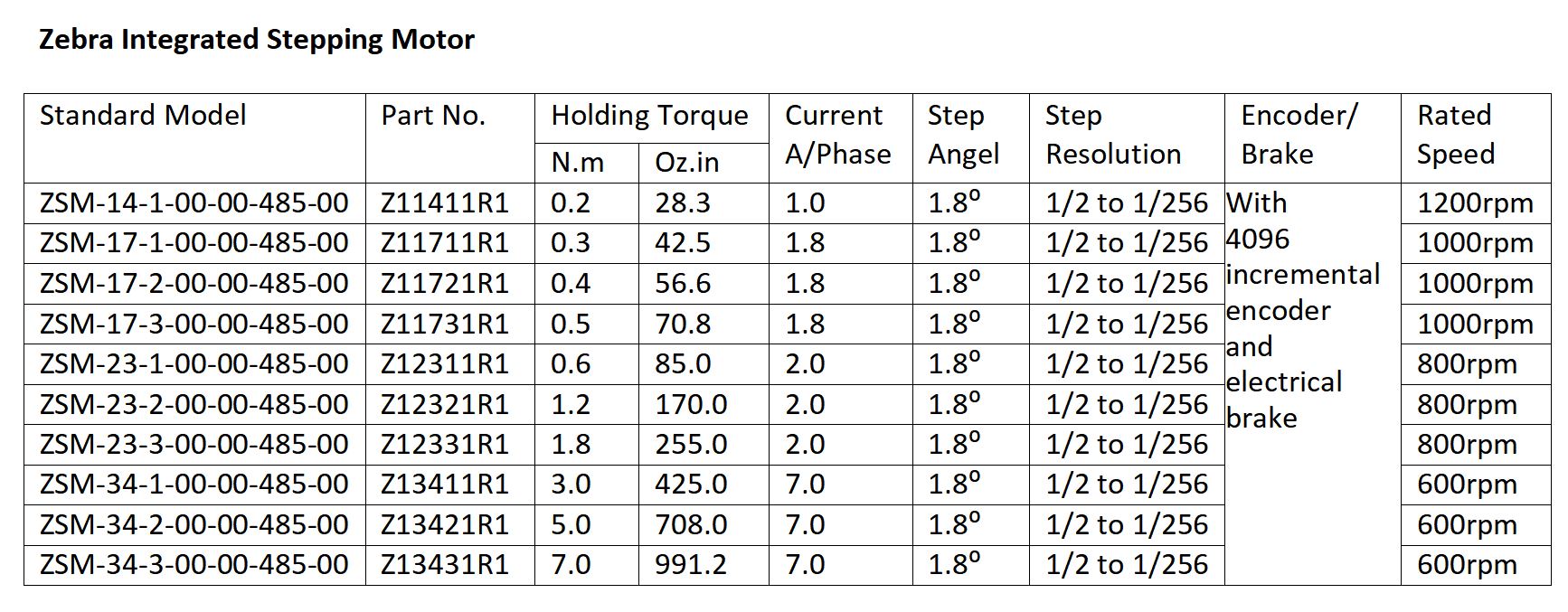

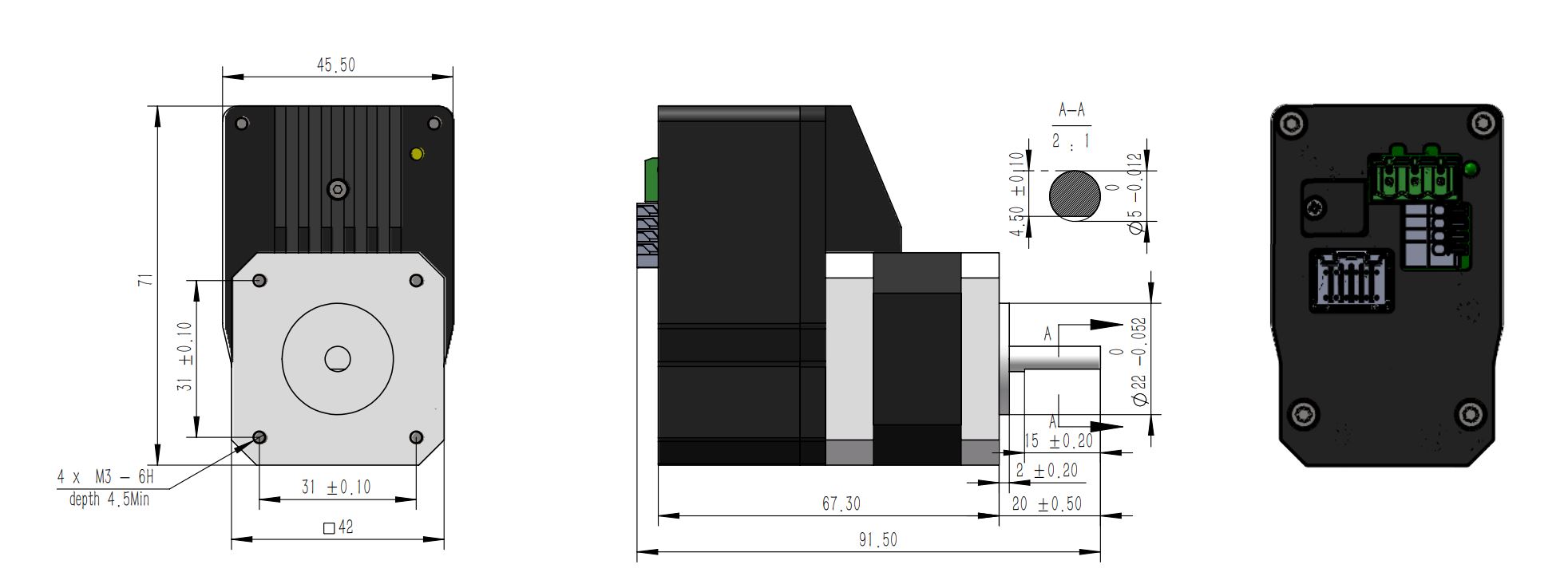

Specifications and Drawings

Zebra Series Stepping Motor series incremental encoder feedback, intelligent stepper motor with electronic brake

Utilize modern manufacturing technology to make the whole system highly densely integrated, integrating stepper motor, 4096 incremental encoder, single-axis motion controller, PLC, and stepper motor.

It integrates the driver and powerful software that is easy to use and easy to learn; provides RS232/485, and can work independently from the host do.

Zebra Series Stepping Motor Highlights:

1. Using our unique patented stepper motor electronic brake technology, it has changed the previous mechanical brake or electromagnetic brake with slow response, short life, and high noise, saving installation space;

2. The unique 4096 line incremental encoder as feedback, fix the trouble of stepping motor out of step and improves the precise positioning ability of the equipment ;

3. The use of advanced servo and subdivided stepping drive technology and unique algorithms improves the running speed of the stepping motor and realizes high-speed and high-precision fixed.

4. Compared with the servo motor, it saves the trouble and difficulty of PID adjustment of the servo motor, and the load capacity is better than that of the servo under the same volume, and the rated torque

The torque is equivalent to the highest torque of the servo;

5. Low-voltage power supply DC20-40V, which consumes less energy and is safer, providing a good solution for energy saving;

6. Adopt highly integrated circuit integration technology to make the volume smaller and provide a perfect solution for some special applications with limited space;

7. The highly integrated technology saves the use of a lot of cables and provides a guarantee for the improvement of system reliability;

8. Use Hyperterminal to communicate with computer, support Microsoft® Robotics, Labview Drivers, Visual Basic, C# programming.

9. It can realize the control of up to hundreds of axes.

10. The reducer can be optional, and Zebra smart motors can be customized for low temperature, vacuum, clean room and anti-riot occasions.
