Compact Lightweight Powerful Single Axis Servo Drive Module (MITE)

The Single-Axis Mite is ideal for applications where a Single-Axis drive is needed to power up a single motor; thus, providing extreme power and precision, in a tiny size. It is 2/3 the size of the Dual-Axis Mite Series module and yet it maintains the series’ light weight and high efficiency features.

The Single-Axis Mite module offers several feedback interface options such as Sensor less, Encoder, Resolver, Hall and BiSS-C providing a user friendly and configurable platform. The user can pick and choose feedback options without compromising power where size and weight are critical.

The built in DSP and Mosfet Power Driver combined with the cutting-edge software capabilities, ensure the highest level of performance without compromising power or performance.
Highlights

• Wide temperature range

• Aerospace ready • Compact size

• Single and dual-axis configurations available

• High-power density

• Configurable, user-friendly GUI with built-in scope features

Applications

• Gimbals & antenna positioners

• Missiles & armaments

• Satellites

• Unmanned systems

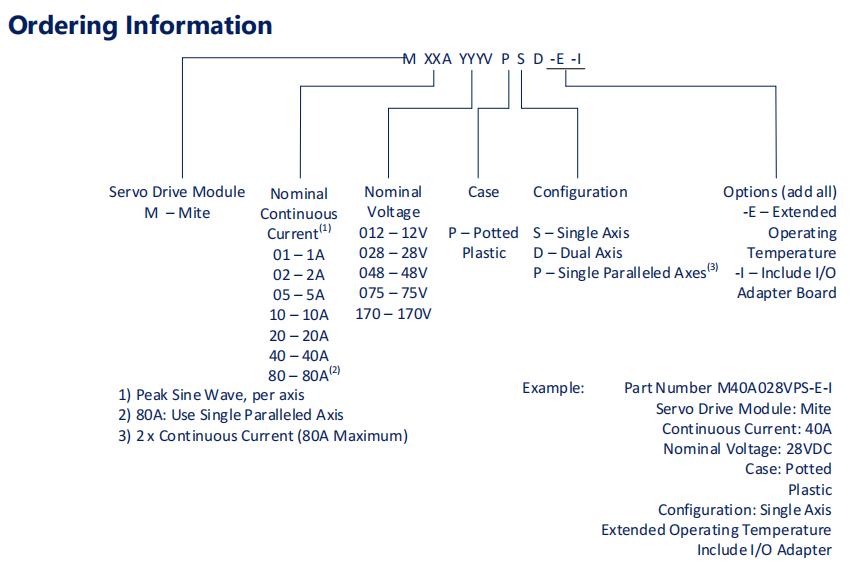

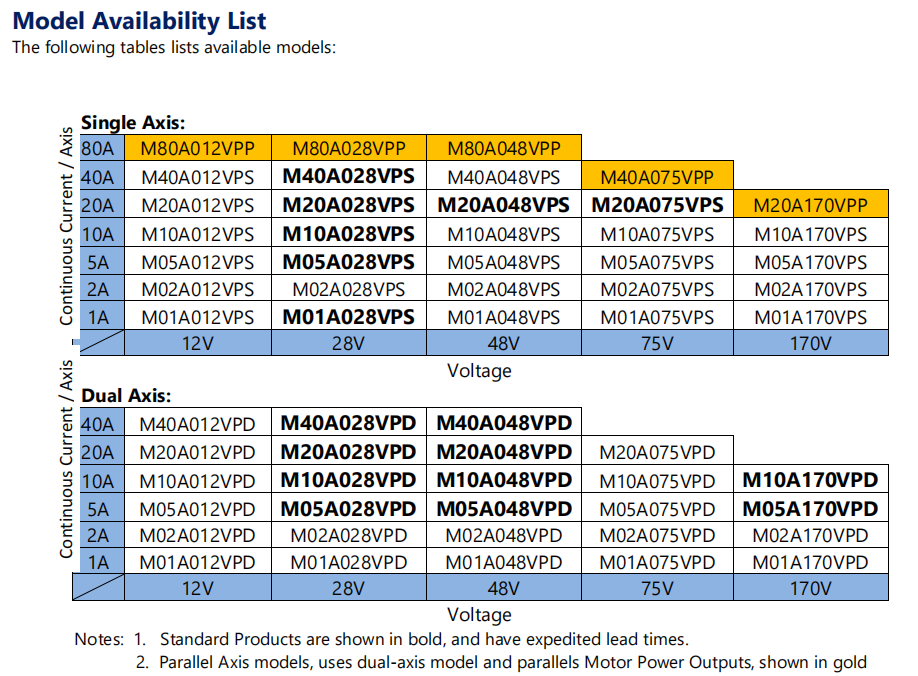

75+ Configurations

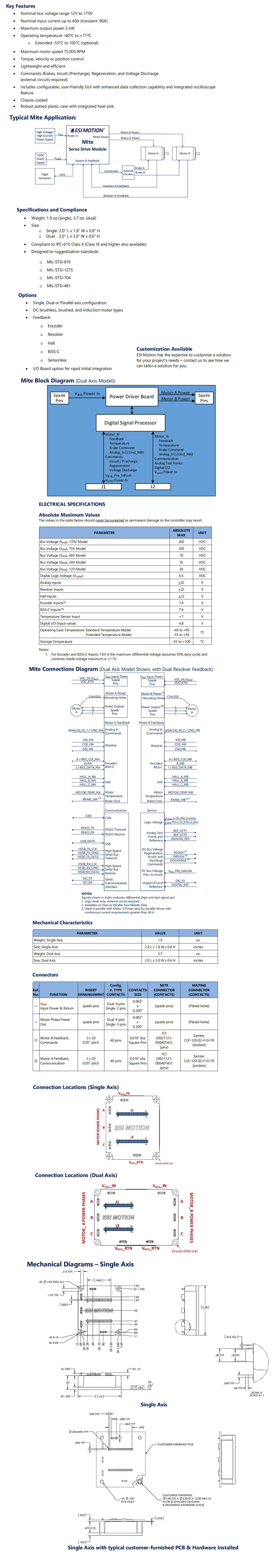

Specifications
