SimplIQ Line Bassoon Digitas Servo Drive BAS-A5/230-4
The Bassoon is a powerful servo drive that operates in digital current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor or DC brush motor. The Bassoon features flexible sinusoidal and trapezoidal commutation, with vector control. The Bassoon can operate as a stand-alone device or as part of a multi-axis network in a distributed configuration.
The Bassoon drive is set up and tuned using Elmo’s Composer software. This Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor.
The Bassoon connects directly to 110/230 VAC single-phase power source. A separate 24 VDC power supply serves as both the auxiliary supply and the backup supply. This allows a safe and economical "power backup" feature that is essential for positioning systems.

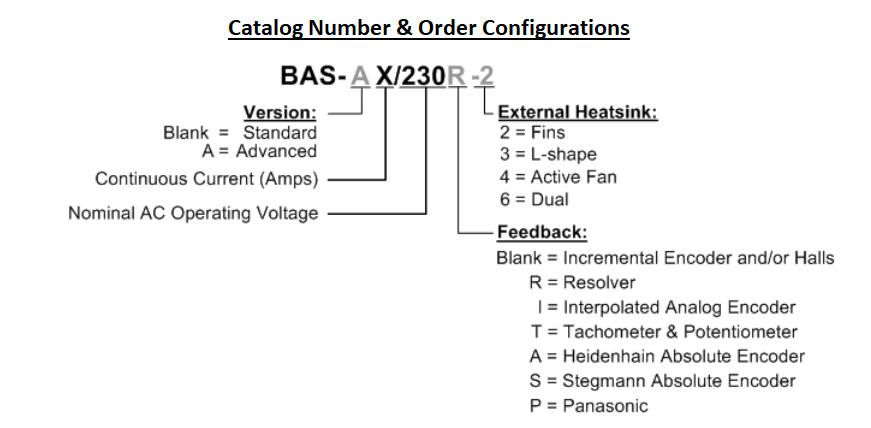

Two variations of the Bassoon are available: the Standard version and the advanced version, which features advanced positioning capabilities. Both versions operate with RS-232 and/or CAN communications
The Bassoon is a series of intelligent digital servo drives for DC brush, brushless motors and linear motors. The servo drive supports up to 6 amps continuous current. Its high density allows the drive to deliver 1900 W continuous power and 3800 W peak power. Based on Elmo’s SimplIQ Motion Control technology, the Bassoon is capable of operating in position, velocity and current modes and contains a wide range of feedback and I/O options. With Elmo’s Composer software, users can easily perform drive setup, configuration, tuning, analysis and programming. The drive operates on AC power. The Bassoon’s compact case enables efficient and cost saving implementation.

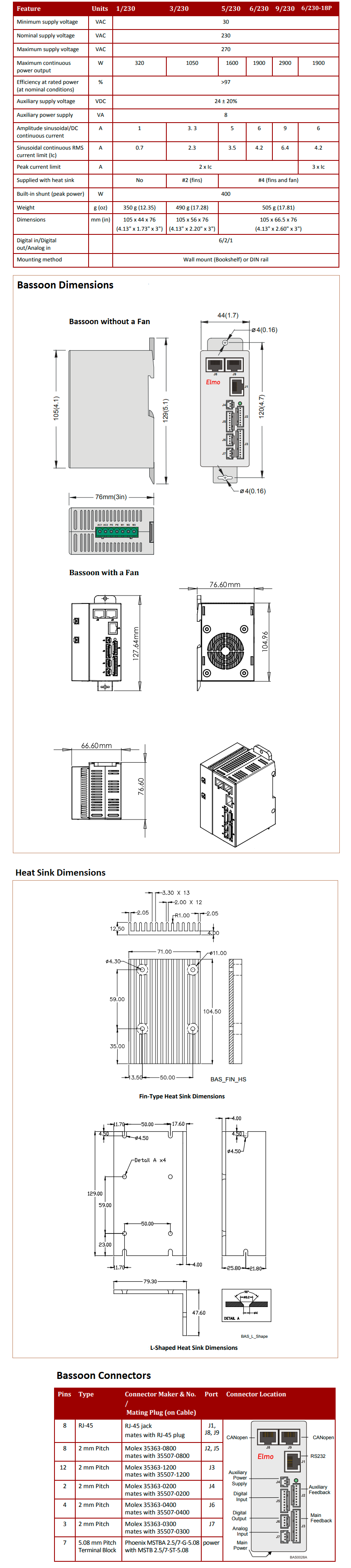

General Specifications
