Elmo Motion Control: ExtrIQ, Gold Line

The ExtrIQ, Servo Solutions For Harsh Environments

Elmo's ExtrIQ is a standard "off the shelf" series of durable motion control products designed, verified, manufactured and tested for applications operating under extreme environmental conditions.

The ExtrIQ series includes both Elmo’s Control Cores: The senior SimplIQ drives and the “State Of Art” GOLD Servo Drives.

In addition to enduring the most extreme environment the ExtrIQ exhibits top servo performance, super compact sizes, high efficiency, negligible EMI, High Reliability and answering any servo requirement The durability is verified by the most severe Environmental, EMC and Safety Standards.

Mating Power Supply ELP-30.

Servo Drives that are “Ready For The Extreme”

• Extreme Outdoor operation anywhere on the globe, hot, cold, icy, frozen, desert, humid, blustery,

• AGV, Automatic guided vehicles on ground, air and sea.

• Ground mobile

• Marine

• Aviation

• Laboratory Automation

• Aerospace

• Deepwater Oil Refining

• Unmanned Vehicles

• Satellite Communication

• Arctic Drilling

• From complex multi-axis motion control to extremely demanding servo mechanisms

• With advanced performance, high precision and accuracy

• With the fastest response and speed

• Yielding superior results

• Any Motion: Single and multi-axis control for any range and accuracy level of motion, centrally controlled.

• Any Servo: One development environment and one control application for servos of all sizes, motions, and power capabilities.

• Any Power: From 10- 65,000 watts, highly stable and consistent power.

• Any Current: From 1A to 600A.

• Any Voltage: AC, DC and direct-to-mains.

• Any Feedback: Support for any industry feedback from any machine manufacturer.

• Any Motor: AC Servo, Linear, Direct Drive, Gantry, Planar, Stepper,..

• Any Environment: Support any environment from -40°C to 70°C, from 0 to 14GRMS.

• Any Space: Ultra Miniature, Ultra Rugged, Ultra Efficiency.

ExtrIQ Durability

The ExtrIQ Products are designed, manufactured and tested to meet Extreme Environmental Conditions. The ExtrIQ durability is qualified,verified and tested according to the most severe Environmental, EMC and Safety Standards exceeding the traditional and senior Military STDs.

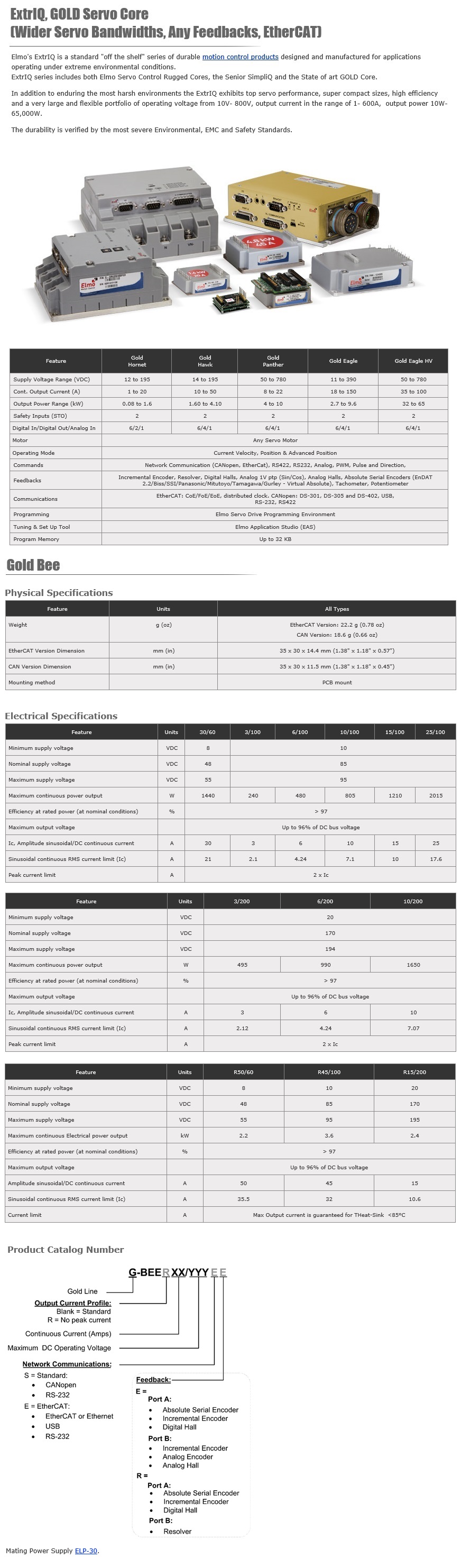

Gold Bee Series

-40°C to+70°C, Vibrations up to 14 GRMS. Ultra Small Servo Drive, up to 4000W.

Designed, qualified, verified, manufactured and tested to withstand Extreme Environments
