Powerful Digital Servo Drive up to 9.6 kW of Continuous Power

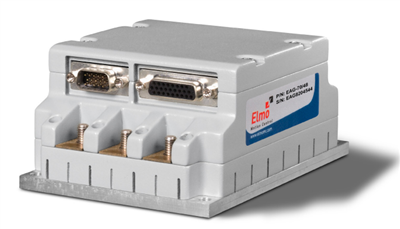

The Eagle is a highly durable series of ExtrIQ digital servo drives for DC brush, brushless motors and linear motors. The powerful servo drive can withstand Extended Environmental Conditions and support up to 90 amps continuous current. Its high density allows the drive to deliver a peak of 15,800 W of power and 9,600 W of continuous power.

Based on Elmo’s SimplIQ Motion Control technology, the Eagle is capable of operating in position, velocity and current modes and contains a wide range of feedback and I/O options. With Elmo’s Composer software, users can easily perform drive setup, configuration, tuning, analysis and programming. The drive operates on DC power.

Mating Power Supply ELP-30.

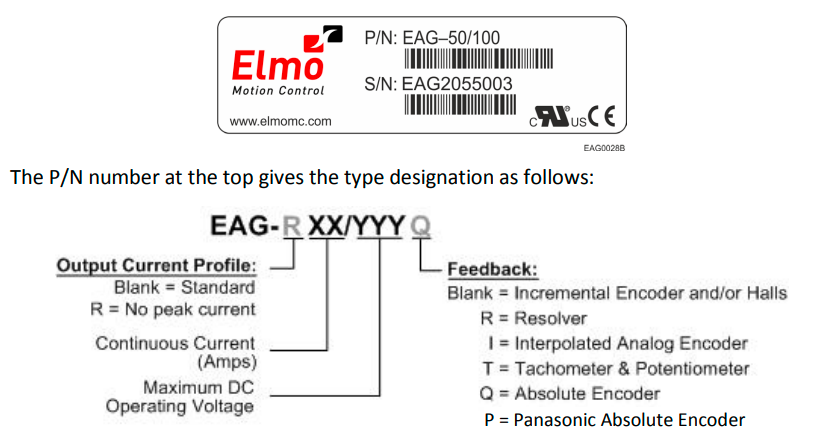

Catalog Number: EAG-100/100Q, EAG-18/400Q, EAG-35/200Q, EAG-70/48Q, EAG-70/60Q, EAG-R100/60Q, EAG-R50/100Q, EAG-R60/200Q, EAG-R75/100Q, EAG-R90/60Q

Installation Guides

Eagle Installation Guide_V.1.904_Oct 2017

3D IGES Format

2D DXF Format
