Elmo Motion Control: ExtrIQ SimpIQ HARSH ENVIRONMENT SERVO SOLUTIONS (Falcon)

Smart and Slim Digital Servo Drive

Ideal for extreme environmental conditions

The Falcon is a highly durable series of slender ExtrIQ digital servo drives for DC brush, brushless motors and linear motors.

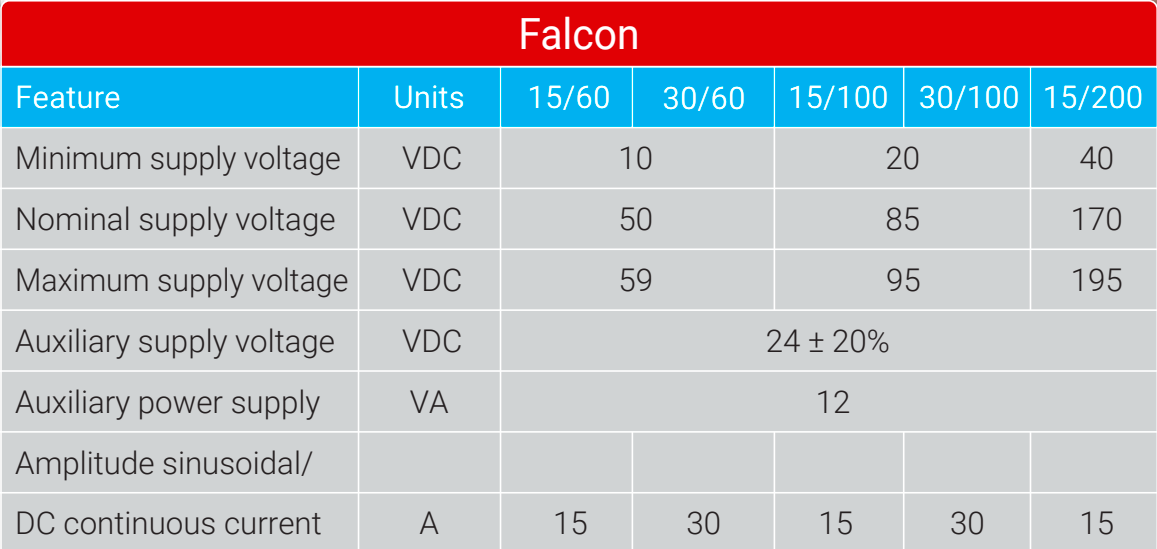

The slim servo drive can withstand extended environmental conditions and can support up to 30 amps continuous current. Its high density allows the drive to deliver up to 2.4 kW of continuous power and 4.8 kW of peak power.

Based on Elmo’s SimplIQ technology, the Falcon is capable of operating in position, velocity and current modes and contains a wide range of feedback and I/O options. With Elmo’s Composer software, users can easily perform drive setup, configuration, tuning, analysis and programming. The drive operates on DC power. The Falcon’s slender case enables efficient, cost saving implementation.

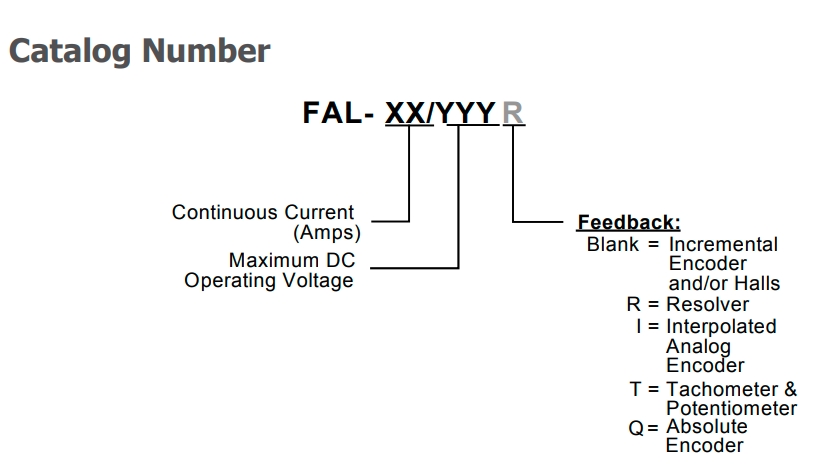

Catalog Number: FAL-15/100, FAL-15/200, FAL-15/60, FAL-30/100, FAL-30/60

Installation Guides

Falcon Installation Guide_V.1.503_Oct 2017

Product Design Files

3D IGES Format

Mating Power Supply ELP-30.
