Elmo Motion Control: ExtrIQ SimpIQ HARSH ENVIRONMENT SERVO SOLUTIONS (Panther)

DC Offline Servo Drive for Extreme Environmental Conditions

The most compact, PCB-mounted servo drive that operates directly from the mains (up to 400 VDC or 800 VDC power source) and delivers up to 10 kW of continuous qualitative power

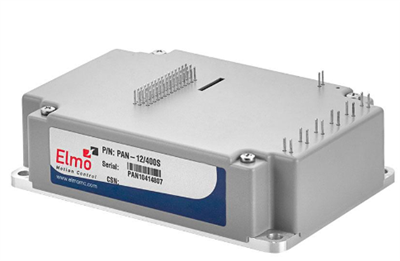

The Panther is a new addition to Elmo’s ExtrIQ product suite – intelligent digital servo drives for sinusoidal, trapezoidal and DC motors that are designed to operate under extreme environmental conditions.

The Panther delivers up to 10 kW of continuous power or 16 kW of peak power in a compact package.

This servo drive is PCB-mounted and it provides top performance, coupled with intelligent networking capabilities in a high level programming environment.

A Feature-rich Solution

The Panther is truly feature-rich, combining high power density, programming flexibility, CANopen networking and numerous motion control features, resulting in a very effective solution for a wide variety of challenging applications.

There are two single DC bus options: 50 – 400 VDC and 100 – 800 VDC, with a built-in smart supply for controlling the back-up capabilities. The Panther can also operate with a 24 VDC auxiliary power supply for the back-up features.

Panther Highlights:

Ready for use in extreme applications

Based on SimplIQ core motion control technology

Ultra-compact, highest power density

PCB-mounted

Highly efficient

Supports a wide variety of feedback sensors

Vector control sinusoidal commutation

Advanced filtering and velocity gain scheduling for enhanced dynamic performance

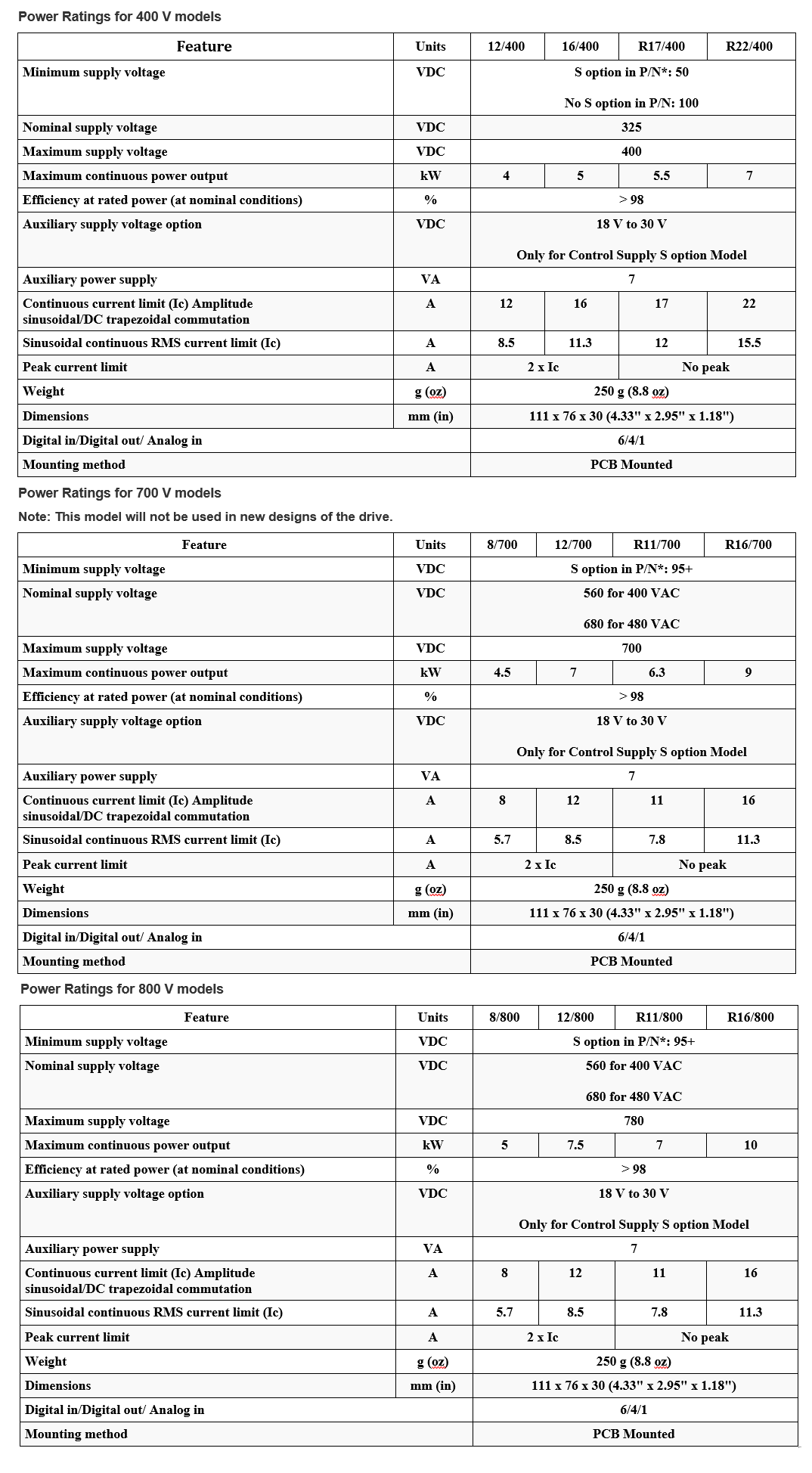

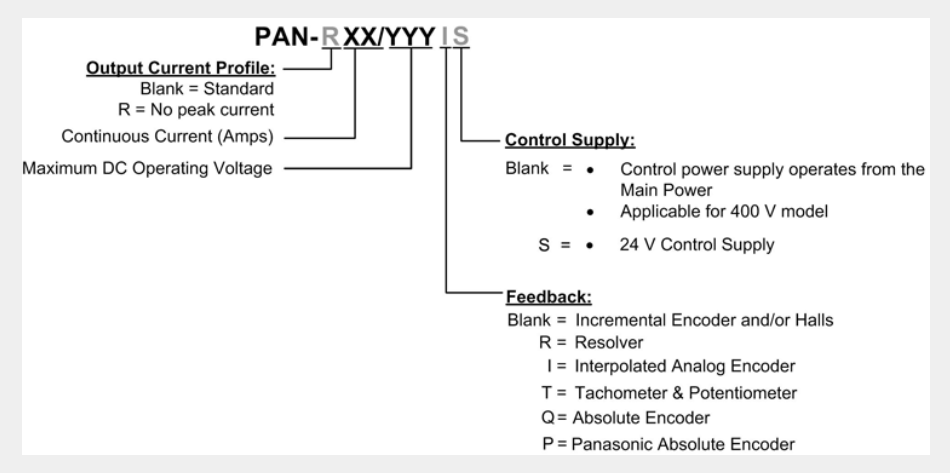

Catalog Number: PAN- R17/400, PAN-12/400, PAN-12/700, PAN-12/800, PAN-16/400, PAN-8/700, PAN-8/800, PAN-R11/700, PAN-R11/800, PAN-R16/700, PAN-R16/800, PAN-R22/400

Installation Guides

Panther Installation Guide_V.1.303_Oct 2017

Product Design Files

3D IGES Format

Mating Power Supply ELP-30.
