Elmo Motion Control: Gold Line Servo Drives (Gold Bassoon)

10A, 230VAC Ultra Compact Servo Drive

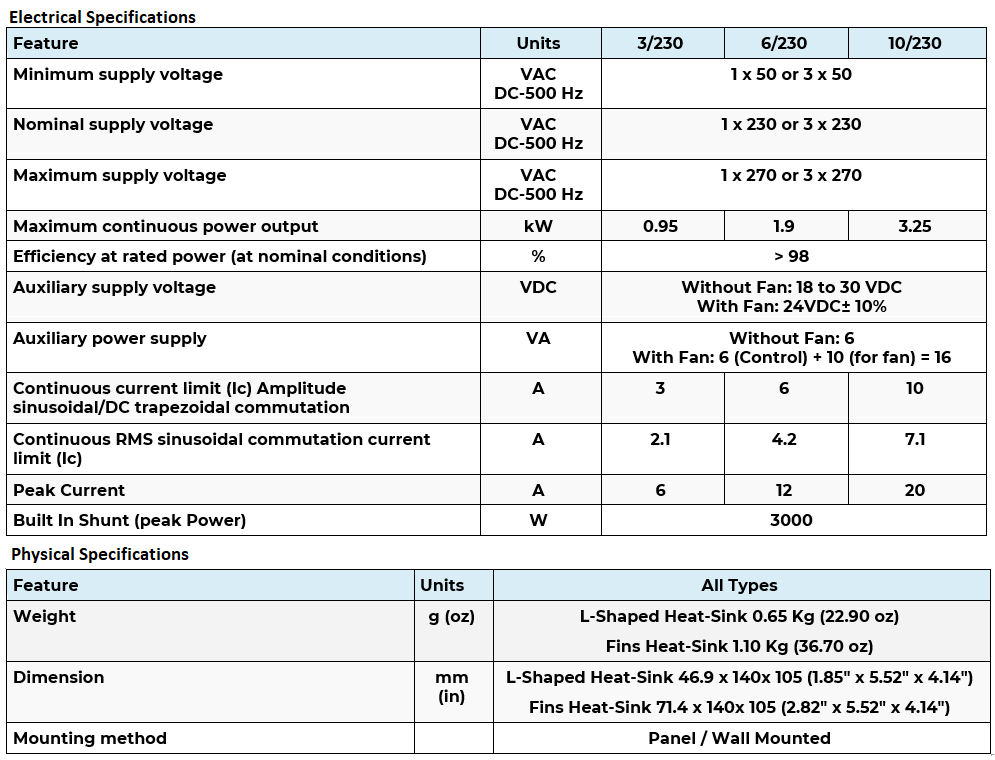

The Gold Bassoon is an advanced high power density servo drive that provides top servo performance delivering up to 3200 Watts (6400 Watts peak).

The Gold Bassoon operates from an AC power source of 30VAC- 270VAC, single or 3 Phases.

The G-BAS drive can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.

The Gold Bassoon is available in a variety of options. There are multiple power rating options, two different communications options, a variety of feedback selections and I/O configuration possibilities.

The drives are easily set up and tuned using Elmo Application Studio software tools. This Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor.

An auxiliary 24 VDC power supply is required.

The Smart Fan operation (in 10A models) is activated only “when required” and thus significantly prolonging the fan’s life-time.

Gold Bassoon Servo Drive Highlights:

“Direct-to-mains” networking servo drive

Rectifies AC input voltage of up to 3x270VAC

Gold Line core motion control technology

High Regeneration braking capability

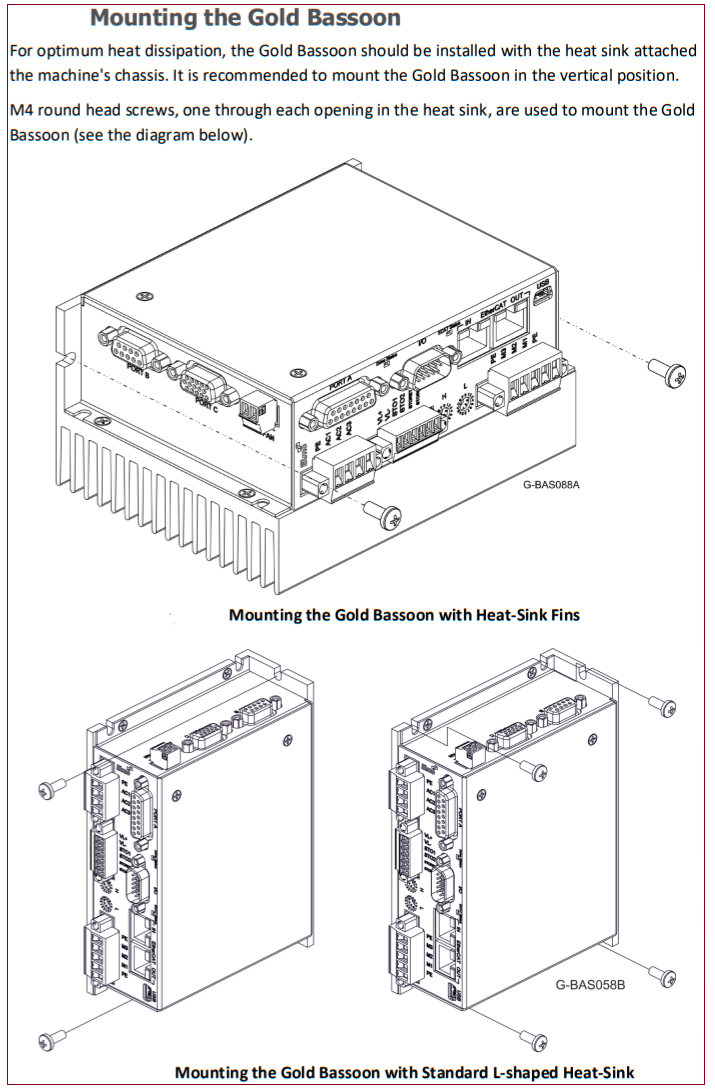

Ultra-compact, highest power density

Highly efficient ≈98%

High servo performance, wide current, velocity, position bandwidth

Continuous output current: 3A, 6A,10A.

Extra ordinary current loop dynamic range of 2000:1

Real-time deterministic network communications: EtherCAT, CANopen

Host communication: USB, Ethernet

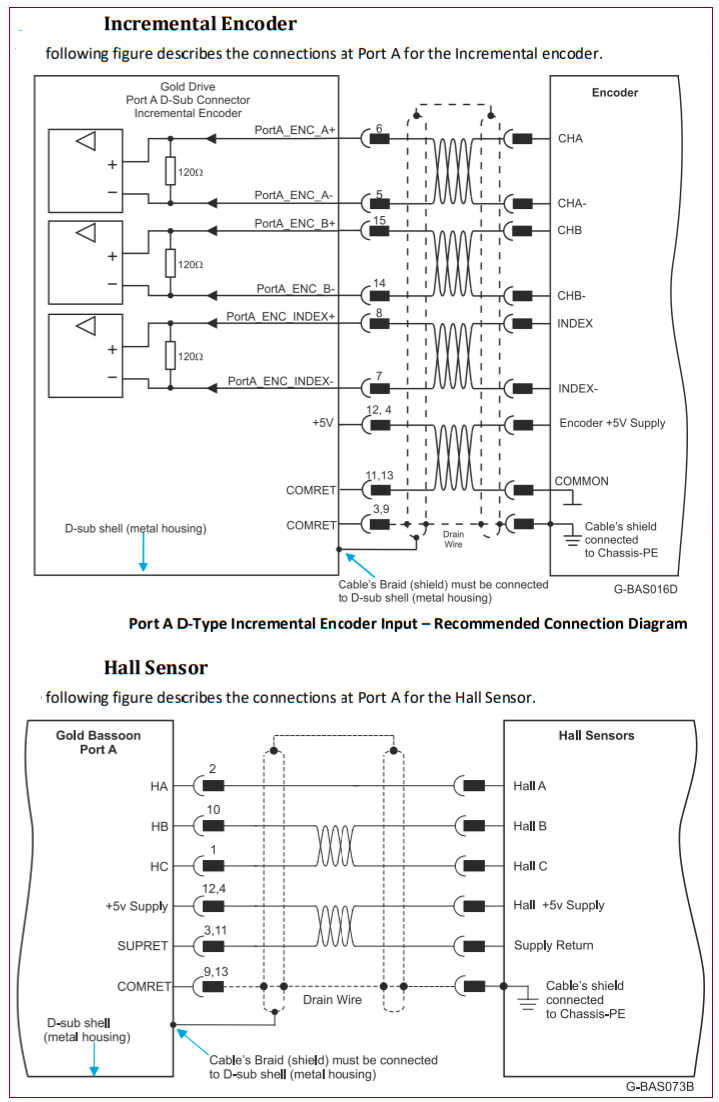

Supports a wide variety of feedback sensors in single, dual and gantry loop configurations

Advanced tuning, filtering and gain scheduling options for enhanced dynamic performance

Vector control sinusoidal commutation

Easy to set up and tune with Elmo Application Studio software tools

STO, Safe Torque Off

Complies to safety, Environmental and EMC STD: IEC61800, UL508c, UL60950, EC61800-5-2

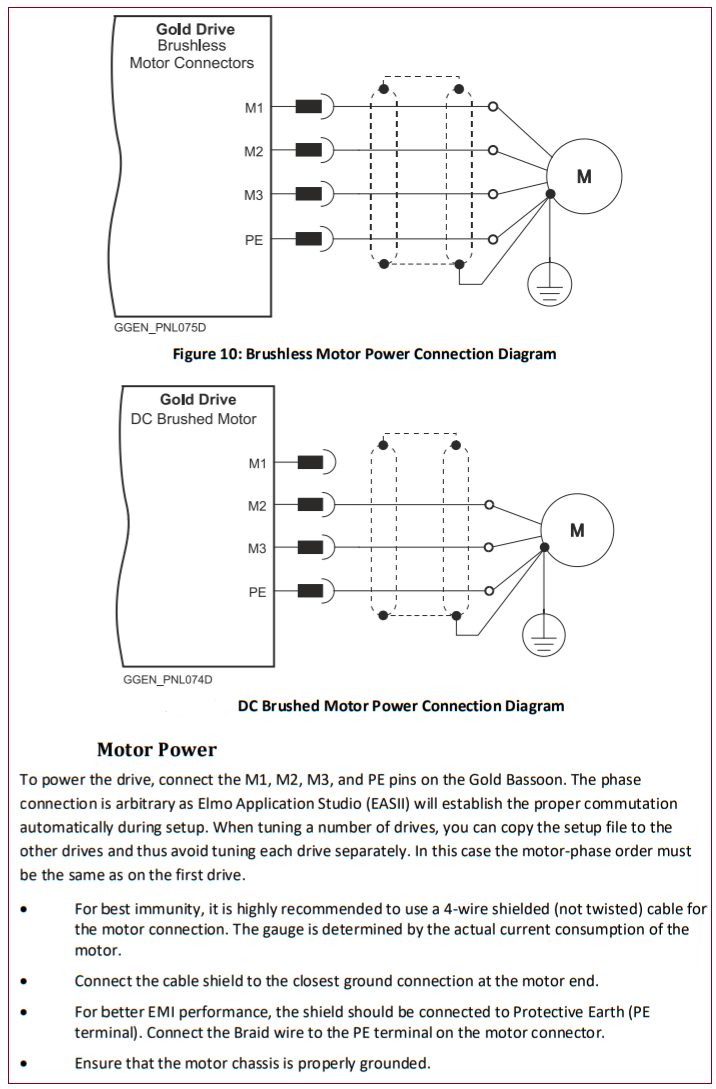

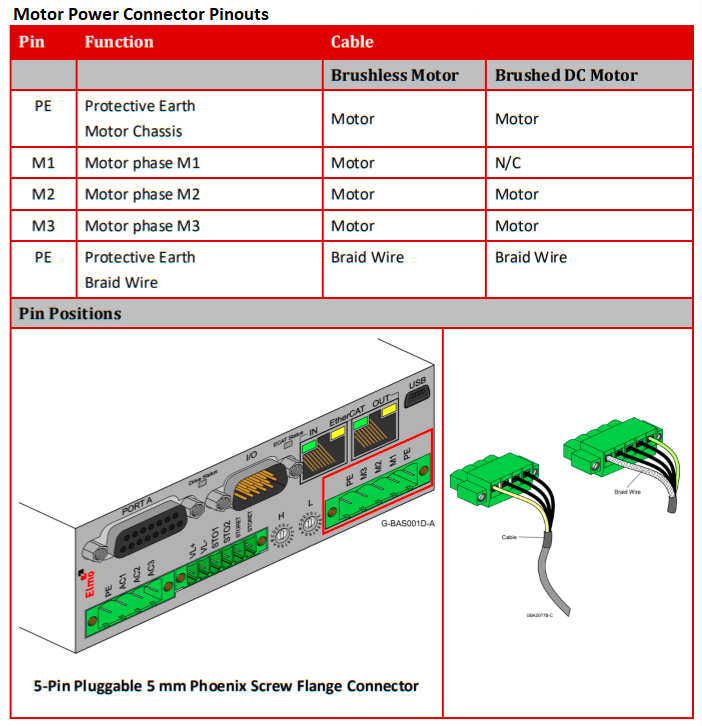

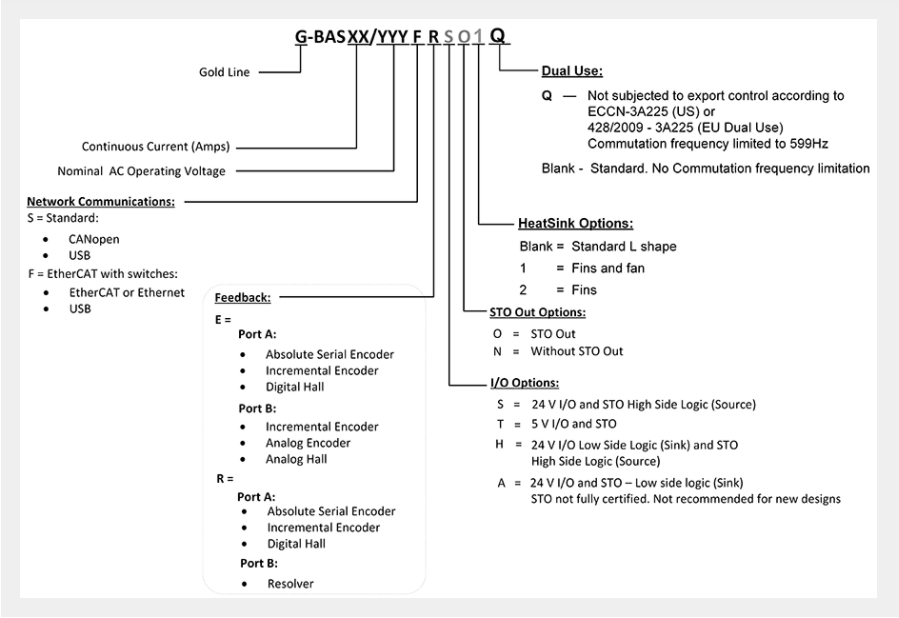

Catalog Number: G-BAS 3/230 FESO, G-BAS 6/230 FESO, 10/230
