The World’s Toughest, Most Advanced and Powerful Miniature Servo Drive.

Provides over 10,000 of Qualitative Watts

The Ultra High Current Gold Double Bee which can deliver up 160A @ up to 75VDC, 140A @ up to 95VDC, and 40A@ up to 195VDC, are advanced high power density servo drives, delivering up to 10 kW power in a 32 cm3(2 Inch3) compact package 47 x 36.2 x 18.8 mm (1.85″ x 1.425″ x 0.74″). The Gold Double Bee is designed to be mounted on a PCB by soldering its pins directly to the PCB.

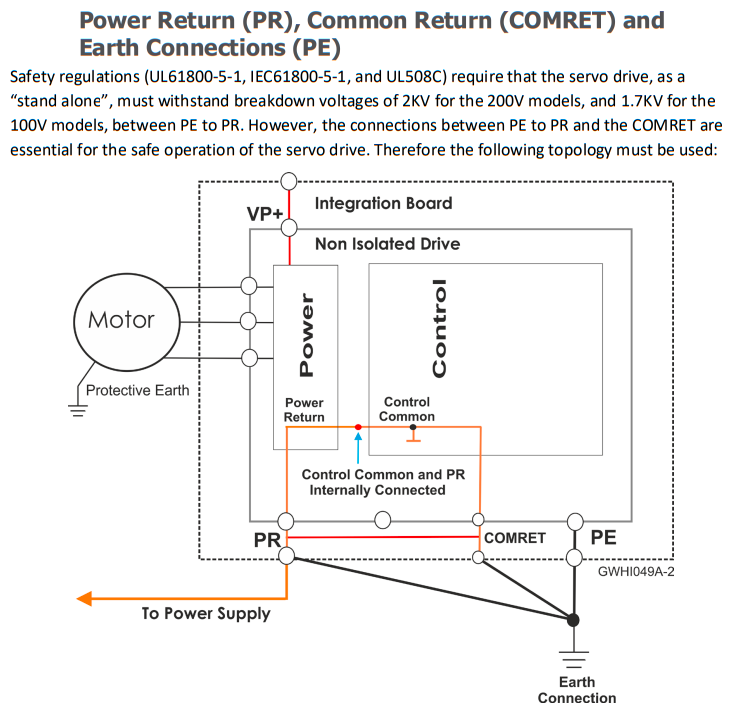

This advanced, high power density servo drive provides top performance, advanced networking and built-in safety, as well as a fully featured motion controller and local intelligence. Power to the Gold Double Bee is provided by a DC power source which is isolated from the Mains. The Gold Double Bee can operate with single or dual power supplies. If separation between the main DC power source and a control supply is required, then a control supply (isolated from the Mains) is required.

The Gold Double Bee can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network. The drive is easily set up and tuned using the Elmo Application Studio (EASII) software tools, and is fully programmable with the Elmo motion control languages.

Gold Double Bee Highlights:

High power density, over 10000 of “Qualitative” Watts

Ultra high current – up to 160A/80V, 140A/100V

Record-setting weight of only 18-22 grams (less than 1 ounce)

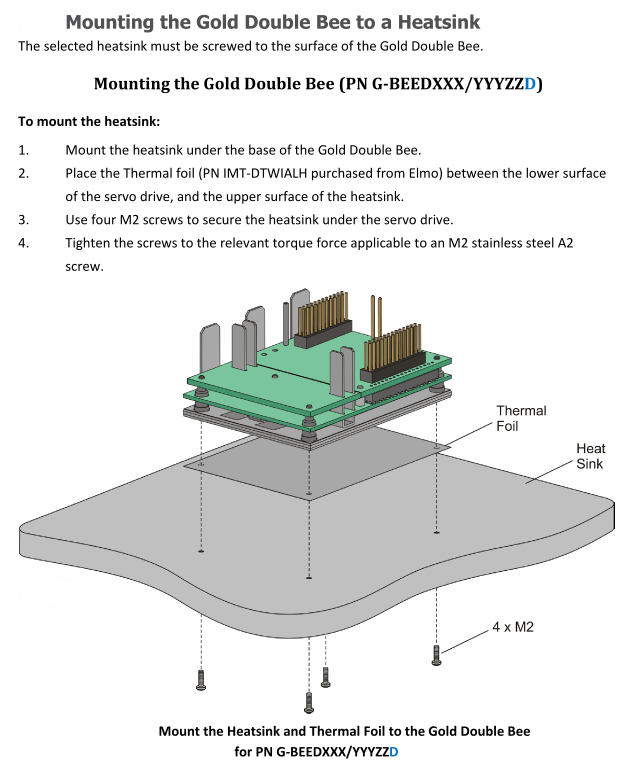

Ultra Small, Ultra Efficient, designed to be mounted on a PCB

Advanced networking by EtherCAT Or CANOpen

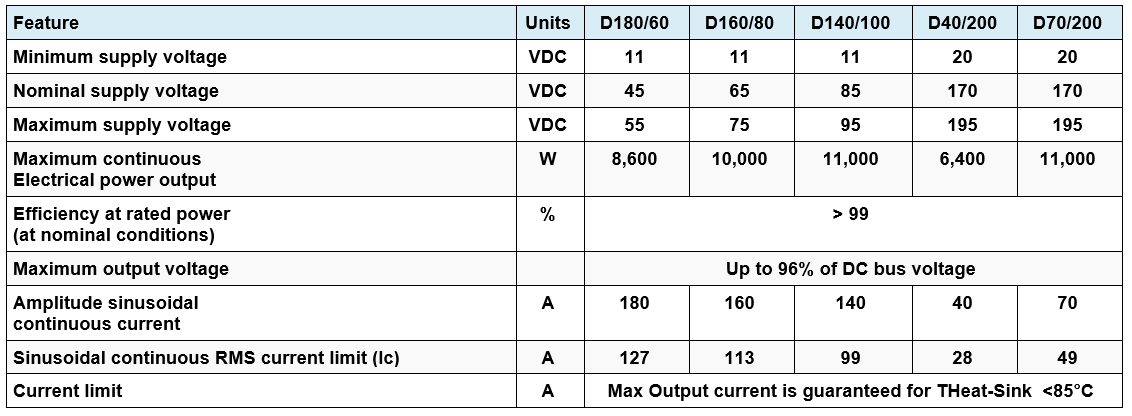

Wide Operating ranges:

“80VDC”,11VDC- 75VDC

“100VDC”, 11VDC- 95VDC

“200VDC”, 20VDC- 195VDC

Supports any feedback sensor in single, dual and gantry loop configurations

Incorporates Proprietary “Fast and Soft Switching Technology” resulting in >99% efficiency yet negligible EMI

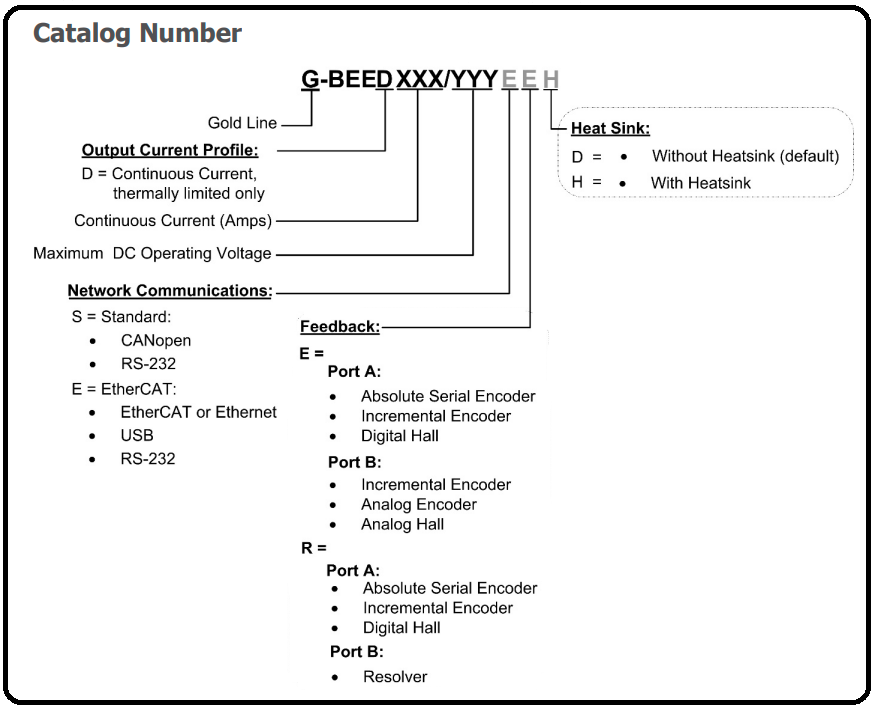

Catalog Number: G-BEED180/60 EEH, G-BEEDD160/80 EEH, G-BEEDD140/100 EEH, G-BEEDD40/200 EEH, G-BEED D70/200 EEH
